Design & Engineering
Kemisan designs all electrolyzer units entirely in-house, drawing on 50 years of engineering expertise.
series

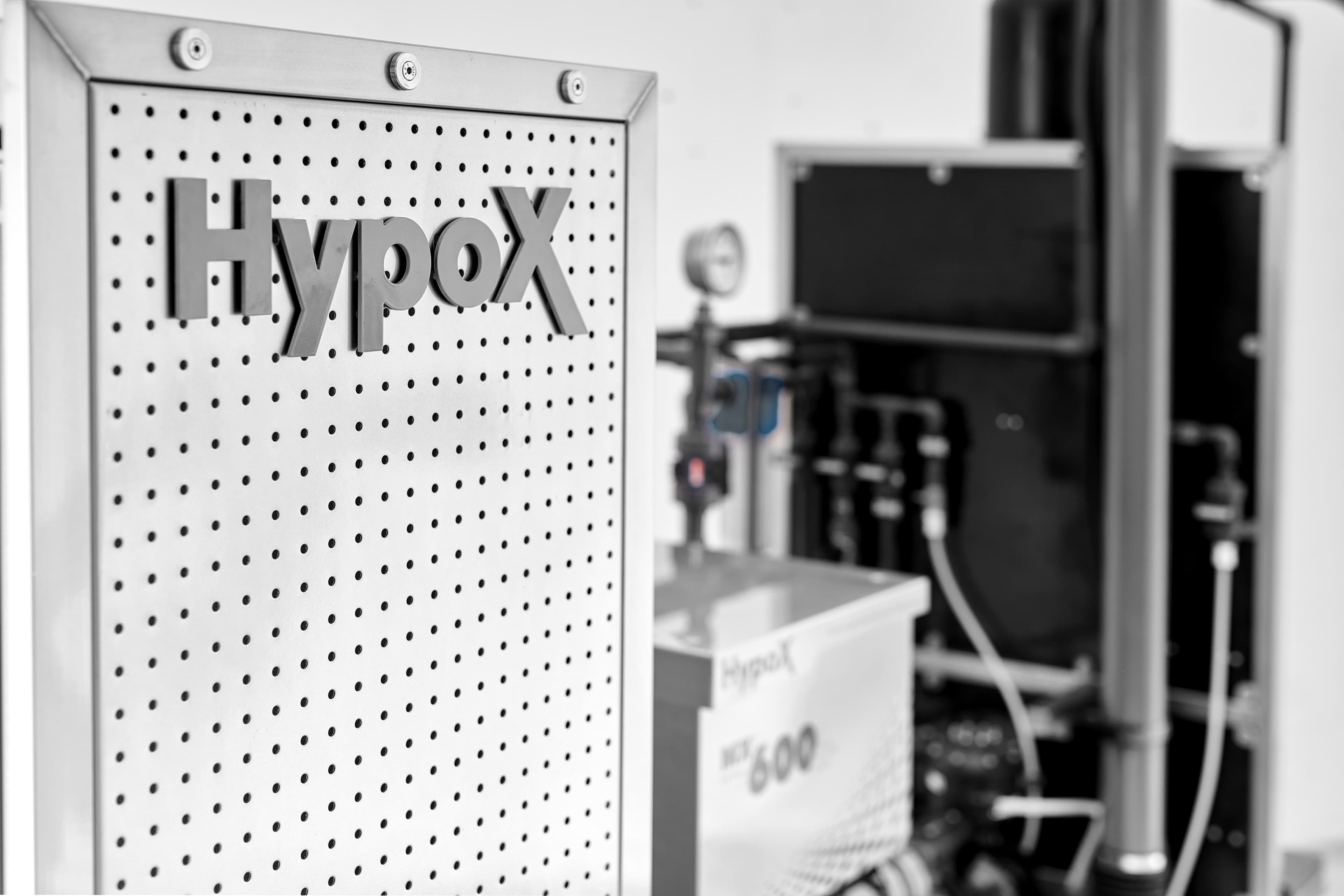

MX
Middle Capacity with Semi-Industrial Standards
MX Series is engineered for mid-range chlorine demand, built to meet semi-industrial standards with a strong focus on durability and operational reliability. With a production capacity ranging from 600 to 1200 g/h, MX delivers one of the most efficient solutions in its class—without unnecessary complexity.
It is the ideal choice for customers seeking a plug-and-perform system that provides semi-industrial performance, remains cost-effective, and is easy to operate and maintain.

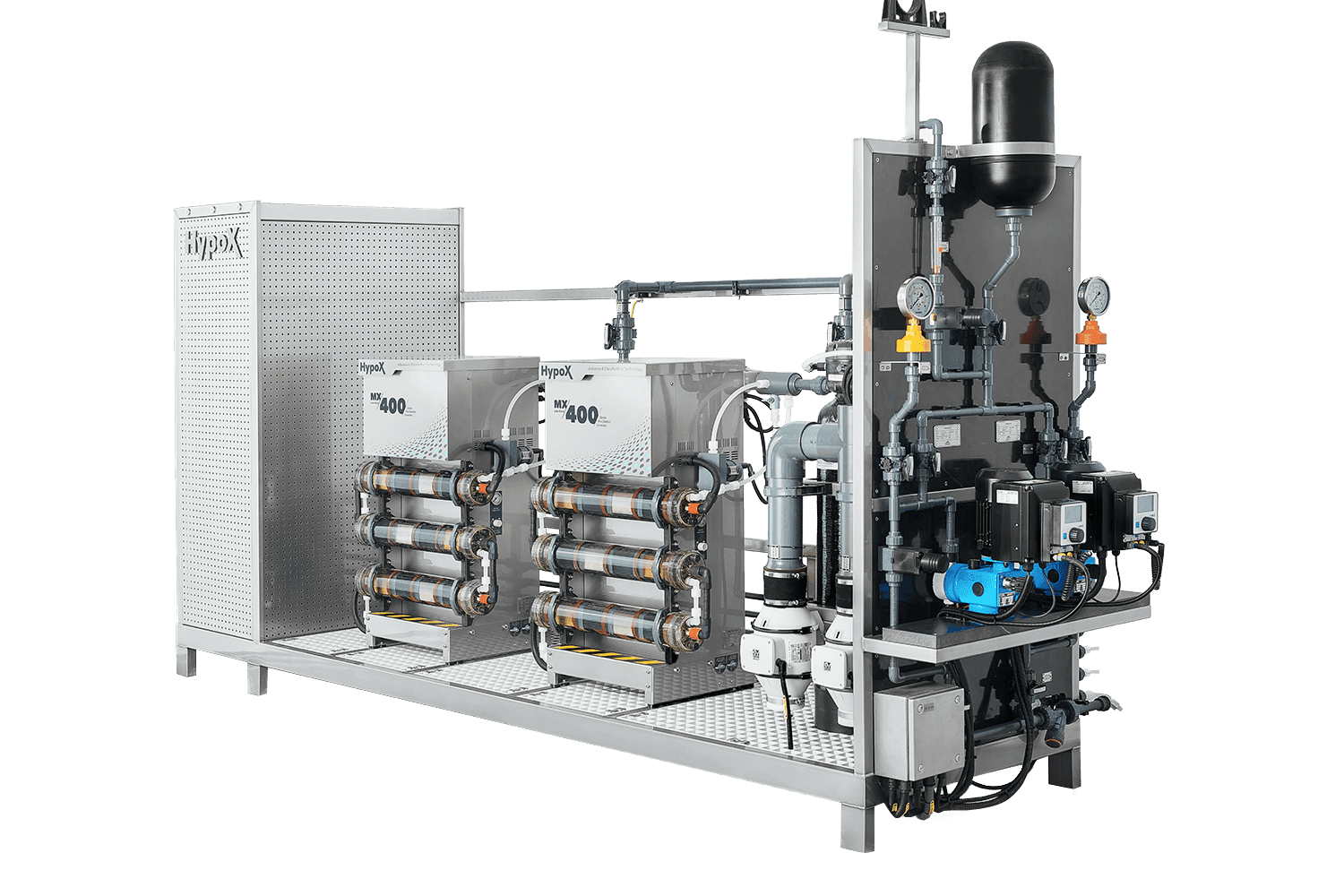

Single

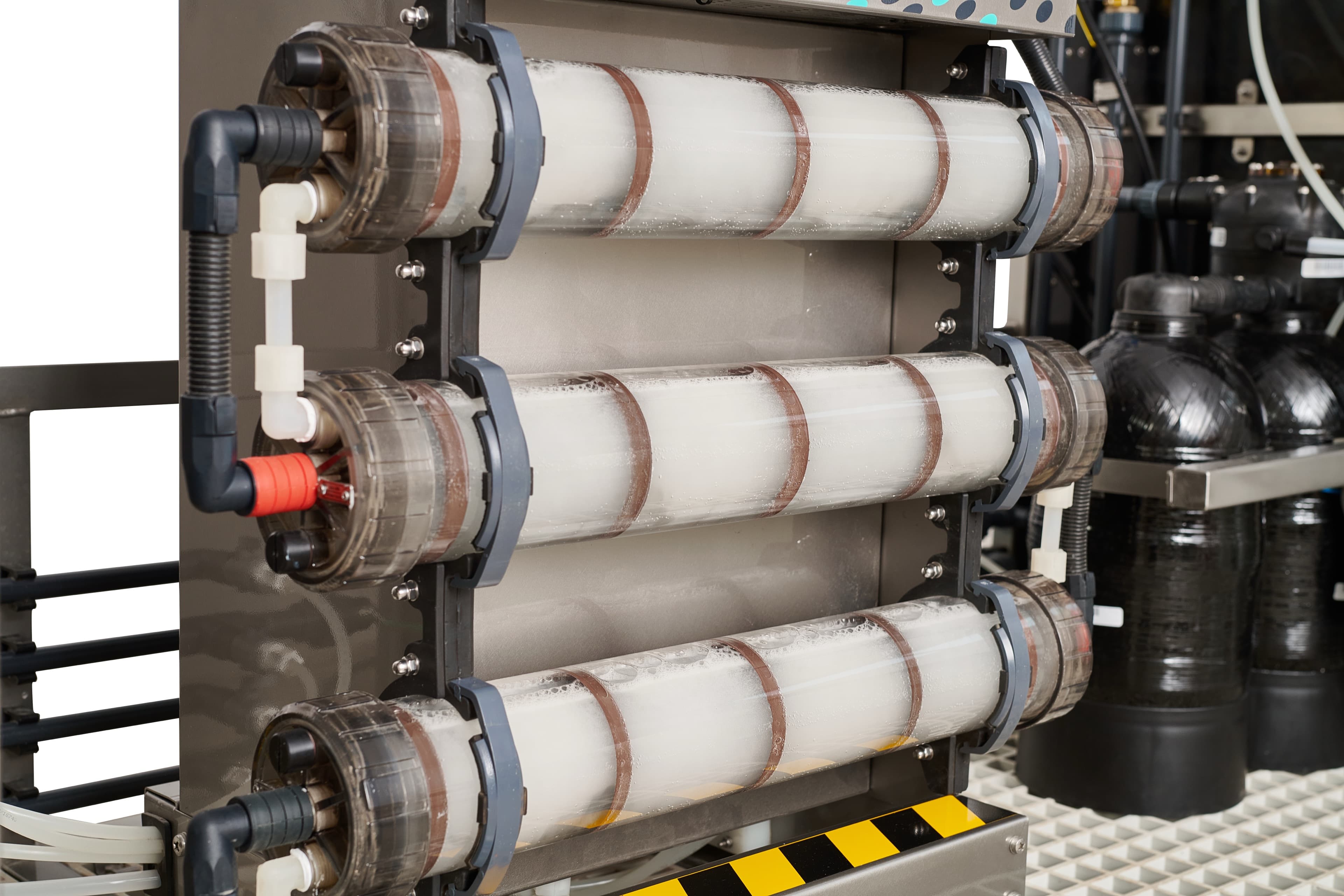

SS316 Skid Design
MX Series's all core components—excluding tanks—are fully assembled on one common skid, integrating piping, instrumentation, and cabling into a compact unit. This design simplifies installation, reduces on-site work, and ensures consistent factory-built quality.
Easy Accessible
Despite its compact design, 4-sided structure provides easy access to all equipment for fast control and easy maintenance.
SS 316 Stainless Steel Skids
MX skids are built with SS316 stainless steel construction for enhanced corrosion resistance and extended service life.
Never on Wall or Floor
MX equipment is never installed directly on walls or floors. Instead, each unit is mounted on the skid that includes all required instruments. This safeguards the equipment against flooding and minimizes the risk of corrosion.
Plug & Play
MX Series as pre-designed model is easily projected according to selected capacity and feature. This results in significantly faster manufacturing and delivery times.
Additionally, because all equipment is housed on a single skid, pre-assembly is completed before delivery. With commissioning tests conducted at Kemisan's factories, potential issues are identified and resolved in advance, ensuring a smoother and more efficient commissioning process at the customer's site.
All of these makes MX Series truly "Plug & Play" , ensuring a hassle-free installation and faster operational readiness.
Pre-designed, Shorter Delivery
Since MX Series is a pre-designed model within a specific capacity range, its manufacturing time is much shorter, resulting in significantly faster delivery.
Pre-installed, Effortless Installation
Since the installation of MX Series is completed at Kemisan factories, it is shipped to the customer ready for use and does not require significant technical manpower, ensuring an effortless installation process.
Pre-commissioned Smooth Start-up
All connections of MX are made beforehand, the initial tests are conducted at Kemisan factories. As a result, the system undergoes commissioning tests before reaching the customer's site. This allows any potential issues to be identified during testing, ensuring a quick start-up process at the customer's site.
Discover MX Series
Capacity & Configurations
MX Series offers MX 600 UNO and MX 1200 DUO model options.

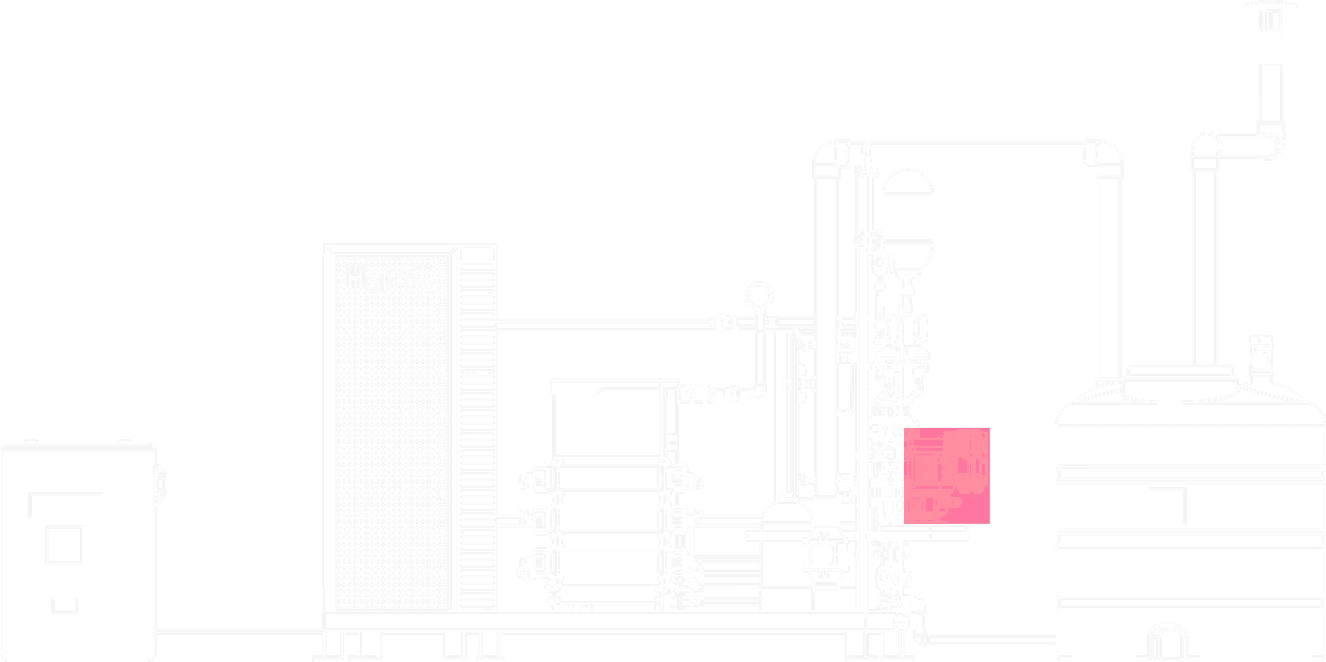

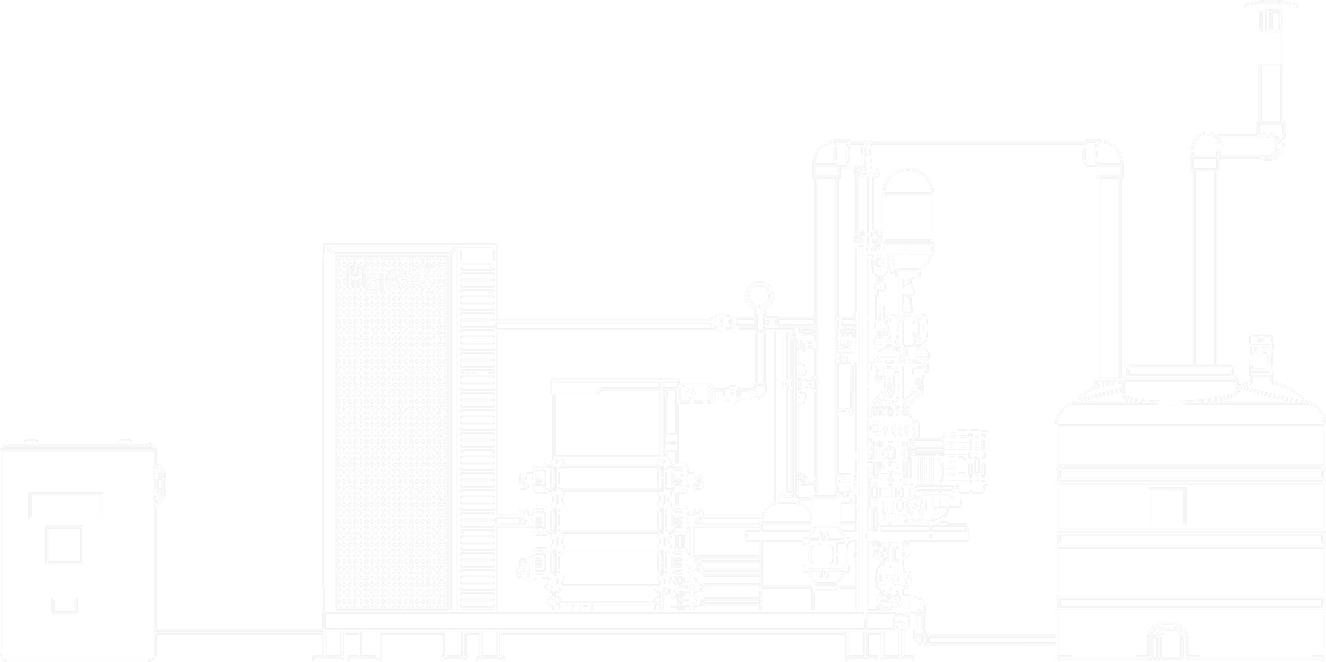

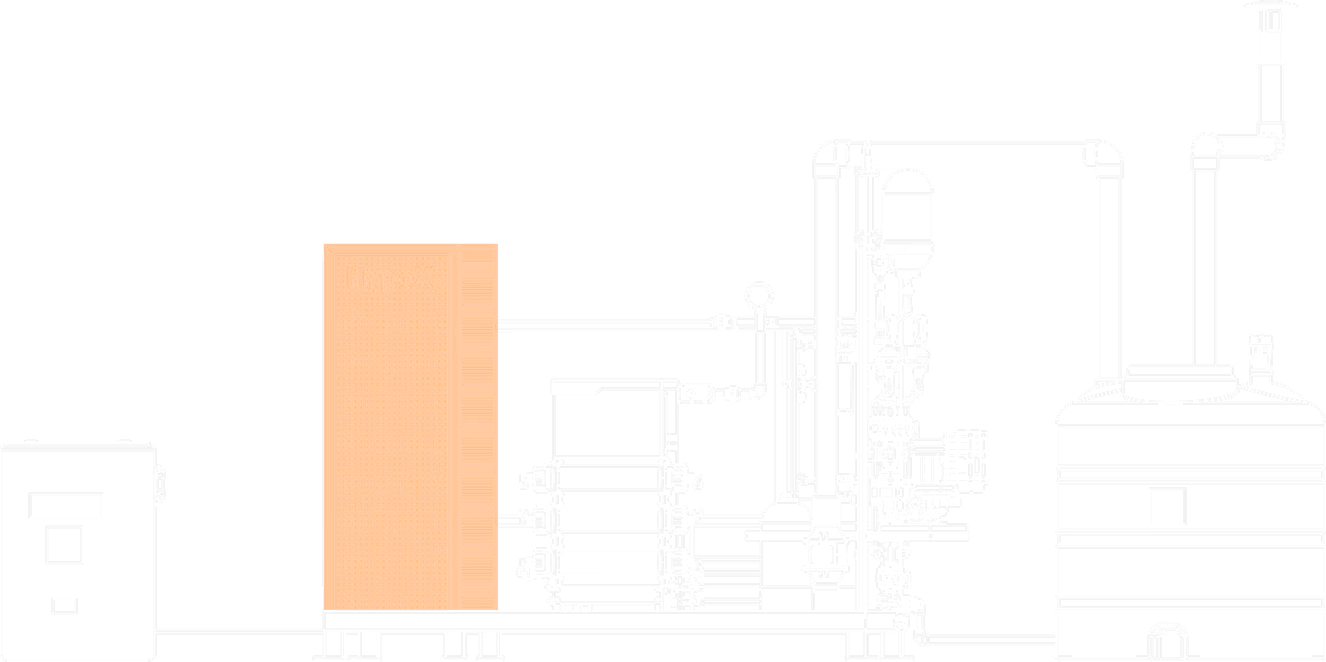

MX 600
UNO
1+0 (1x100%)
Configuration
UNO configuration consists of a single train-process line. If the line fails or during scheduled maintenance, the entire system halts, as there is no backup process line.

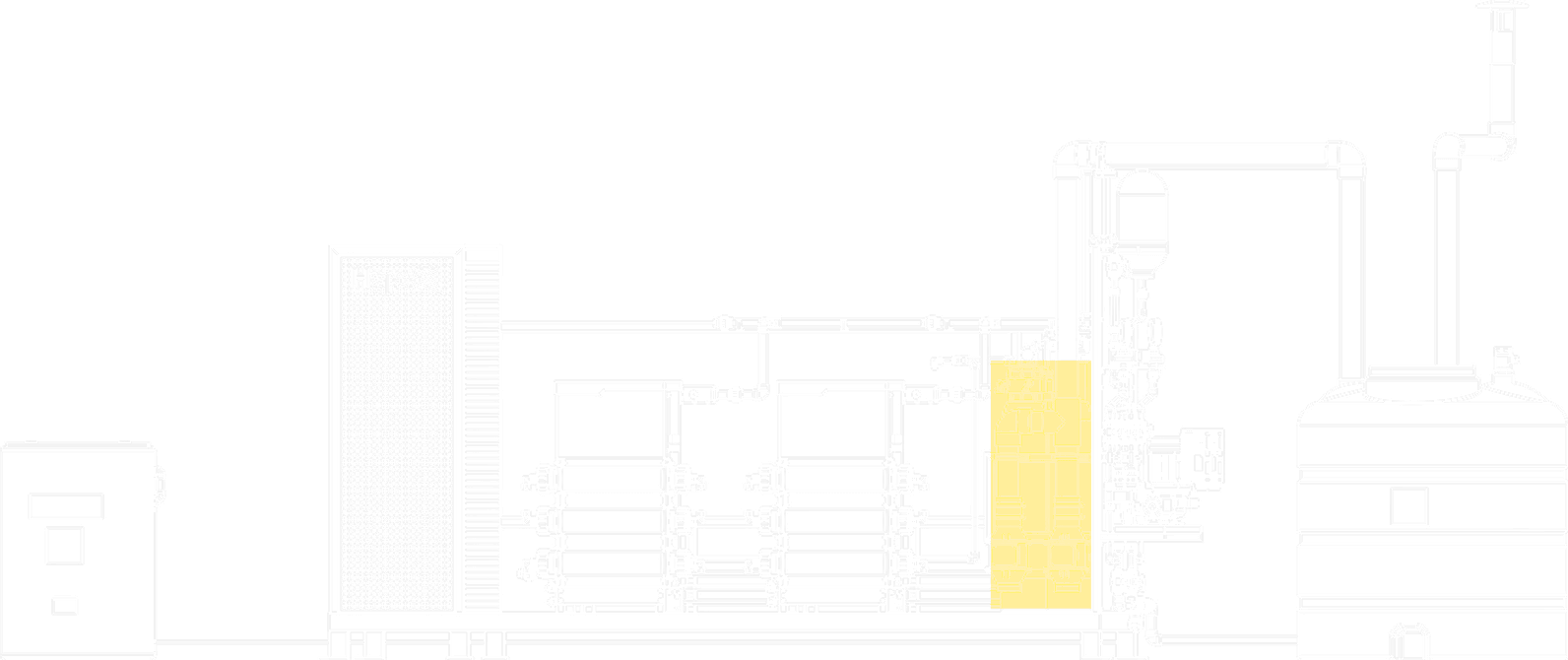

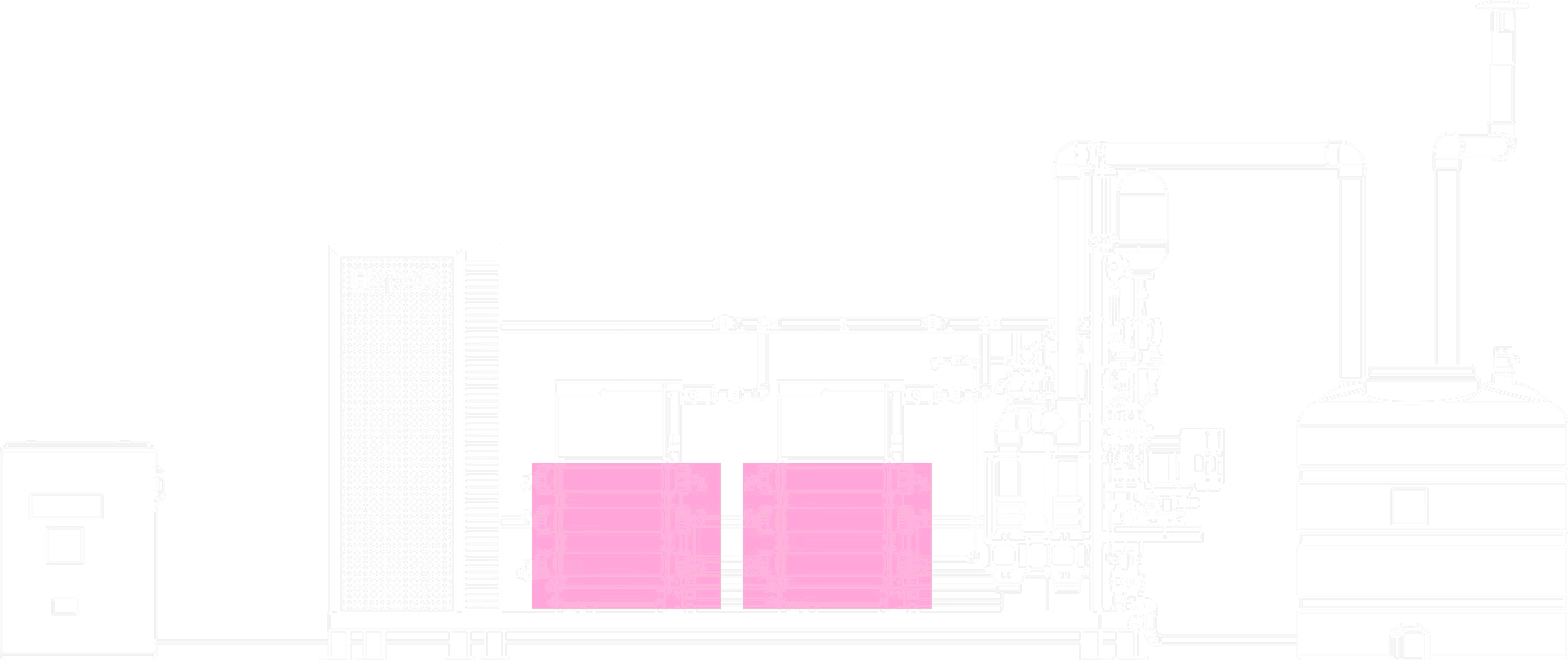

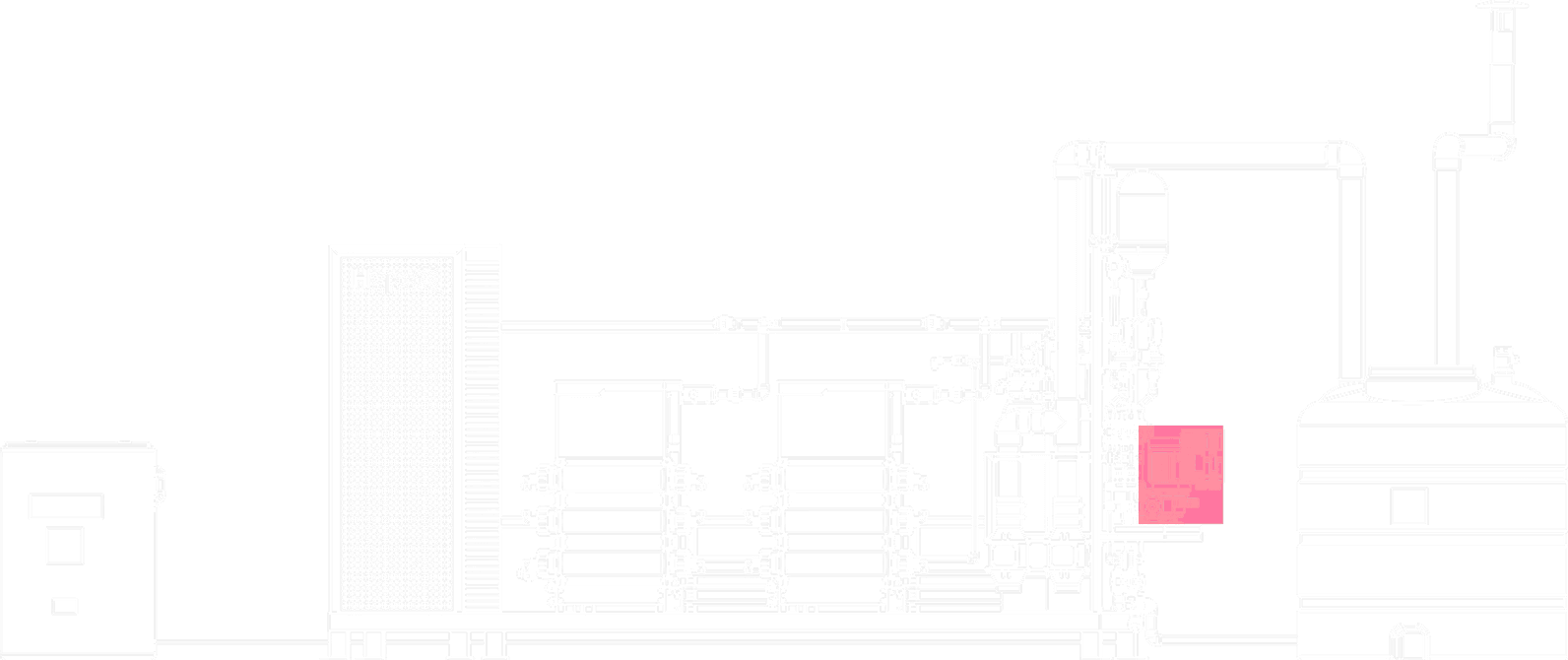

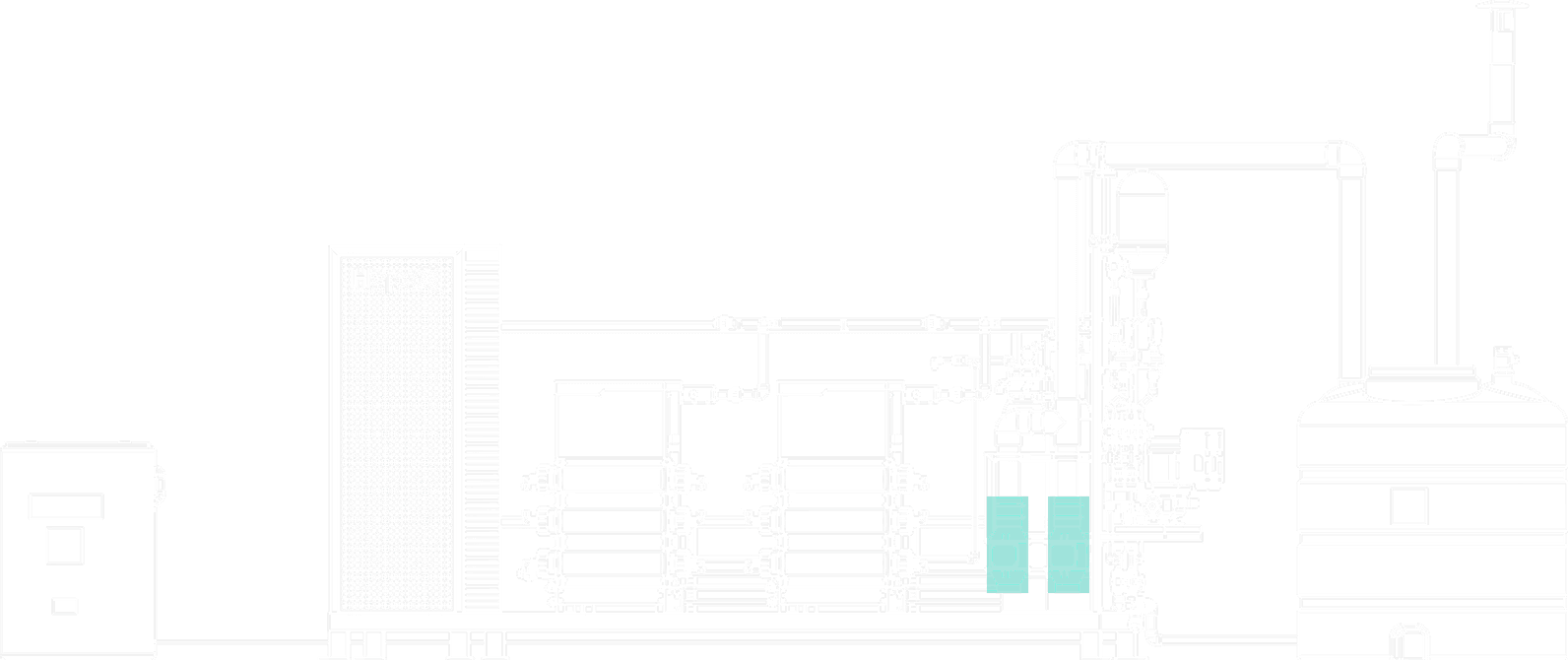

MX 1200
DUO
2+0 (2x50%)
Configuration
With two train-process lines running at half capacity each, DUO ensures continued production even if one line fails. The second line can continue operation at 50% capacity, minimizing downtime.
MX 600
UNO
1x100%
Single 600 g/h
Electrolyzer Unit
1Duty+0Spare electrolyzer unit, operating at 100% capacity, functions on a single train line to meet the total capacity requirements.

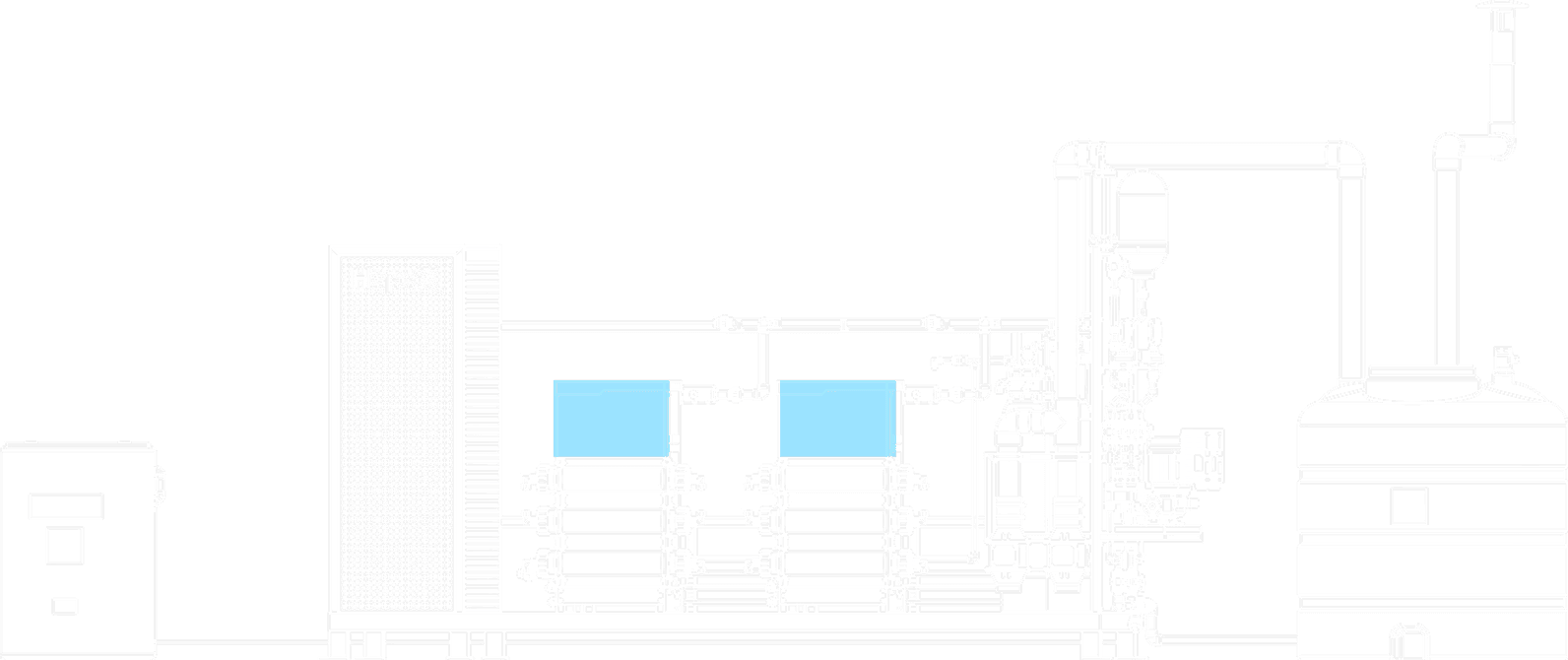

MX 1200
DUO
2x50%
Double 600 g/h
Electrolyzer Unit
2Duty+0Spare electrolyzer unit, operating at 50% capacity on each line, functions across two train lines. These lines can operate either simultaneously or independently.
MX 600
UNO
1x100%
Rectifier Unit
1x100% Rectifier unit consists of a single unit that meets the power requirements of the electrolyzer unit operating at 100% capacity.

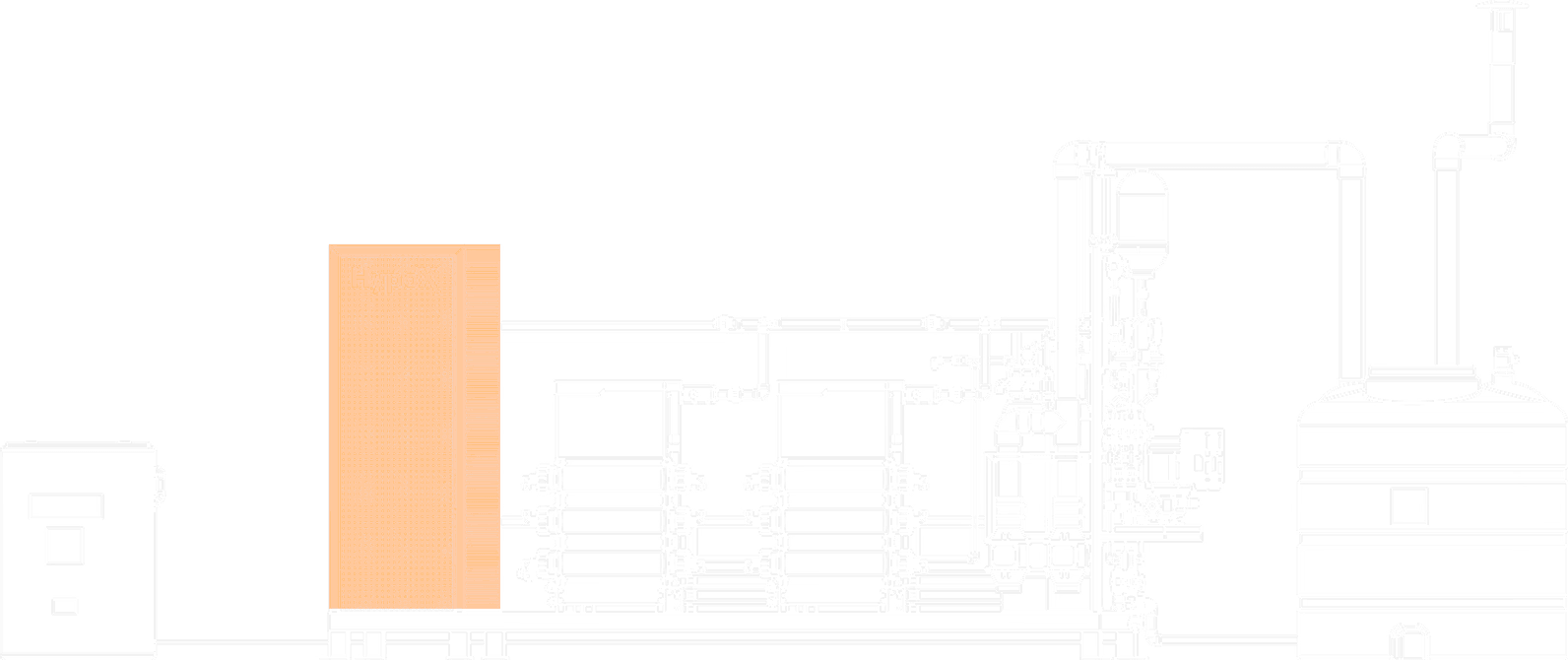

MX 1200
DUO
2x50%
Rectifier Unit
In Duo design, there are two rectifiers, each providing the required power for the 2x50% operating electrolyzer units.
MX 600
UNO
MX 1200
DUO
1x100%

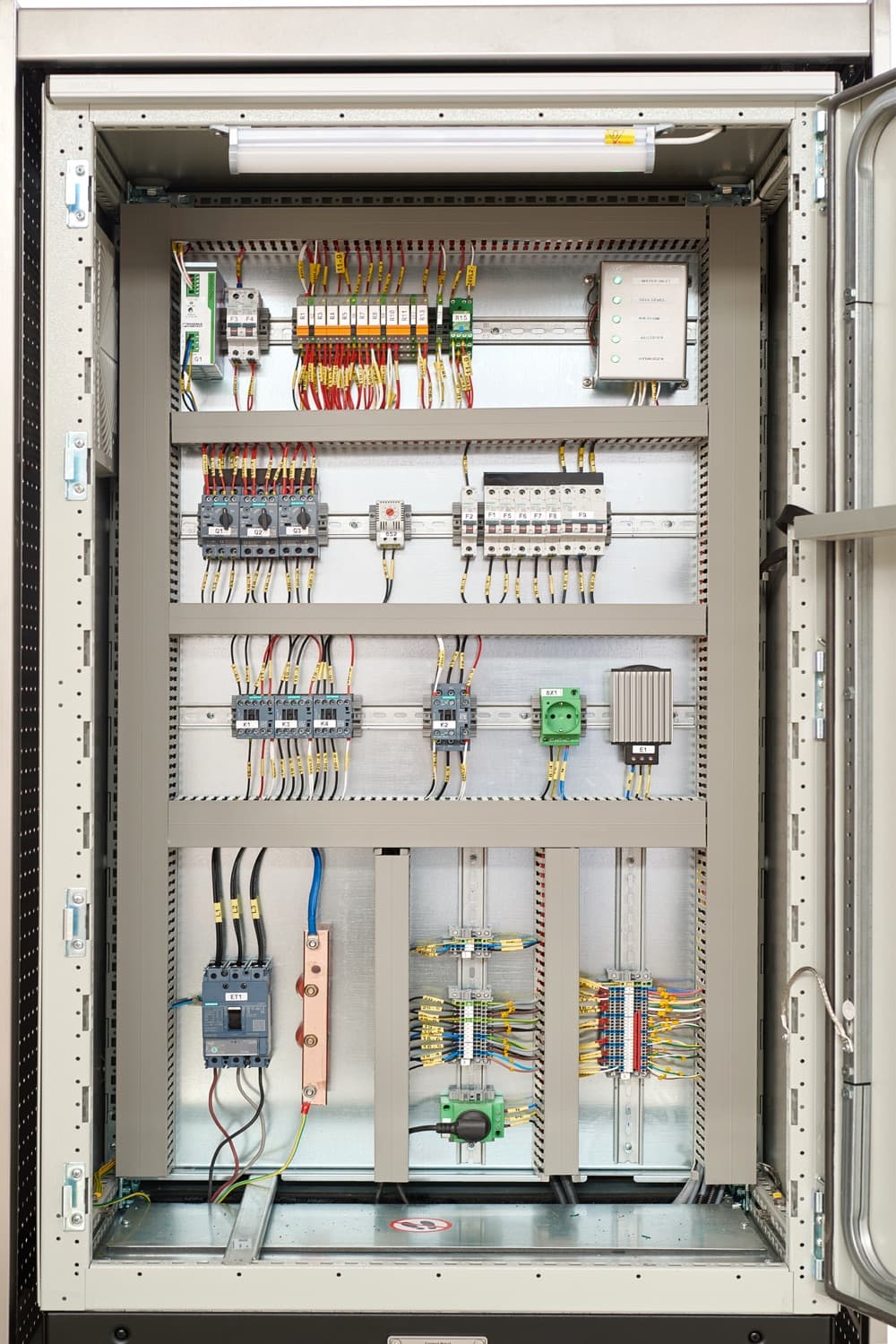

MCC & PLC
There is a single MCC panel and one PLC panel that support the entire system for both design (UNO & DUO)
MX 600
UNO
MX 1200
DUO
1x100%

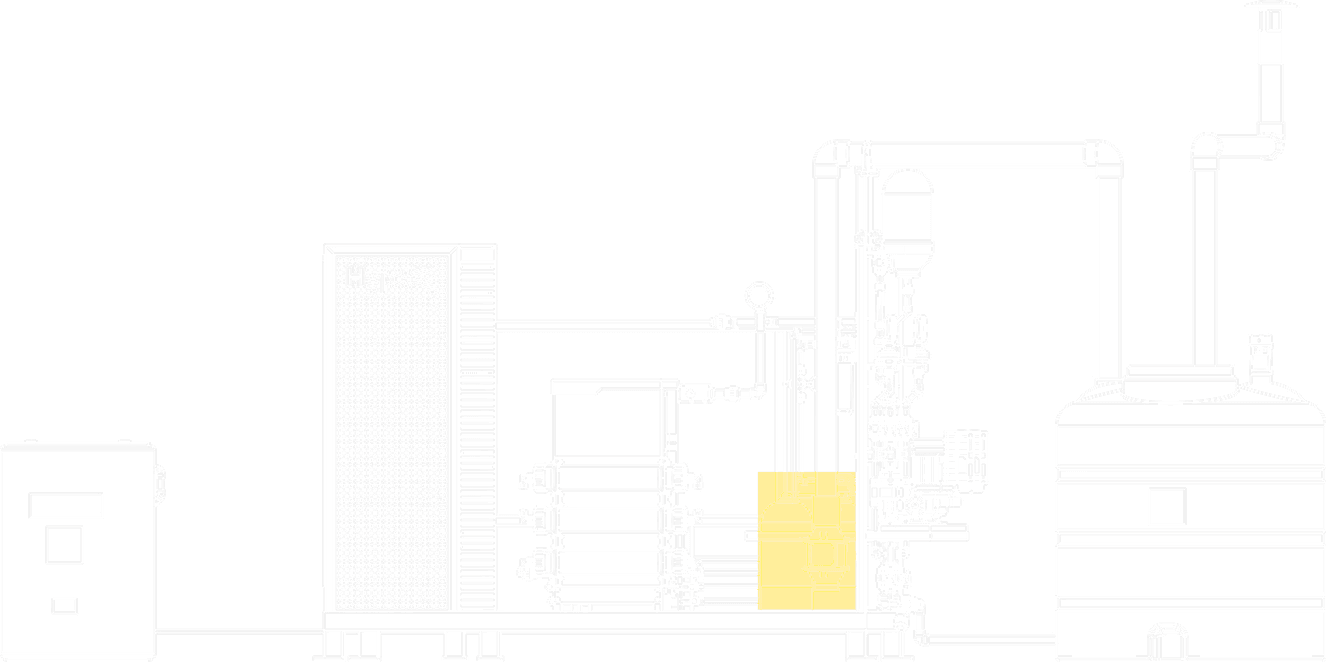

Water Softener
In both UNO & DUO design, there is a single tandem softener unit (1+0) that supports 100% of the capacity.
MX 600
UNO
1x100%
H2 Ventilation Unit
In UNO design, there is a single air fan unit (1+0) that supports 100% of the capacity.
MX 1200
DUO
2x100%
H2 Ventilation Unit
In DUO design, there is a double (spare) air fan unit (1+1) that supports 2x100% of the capacity.
MX 600
UNO
MX 1200
DUO
2x100%

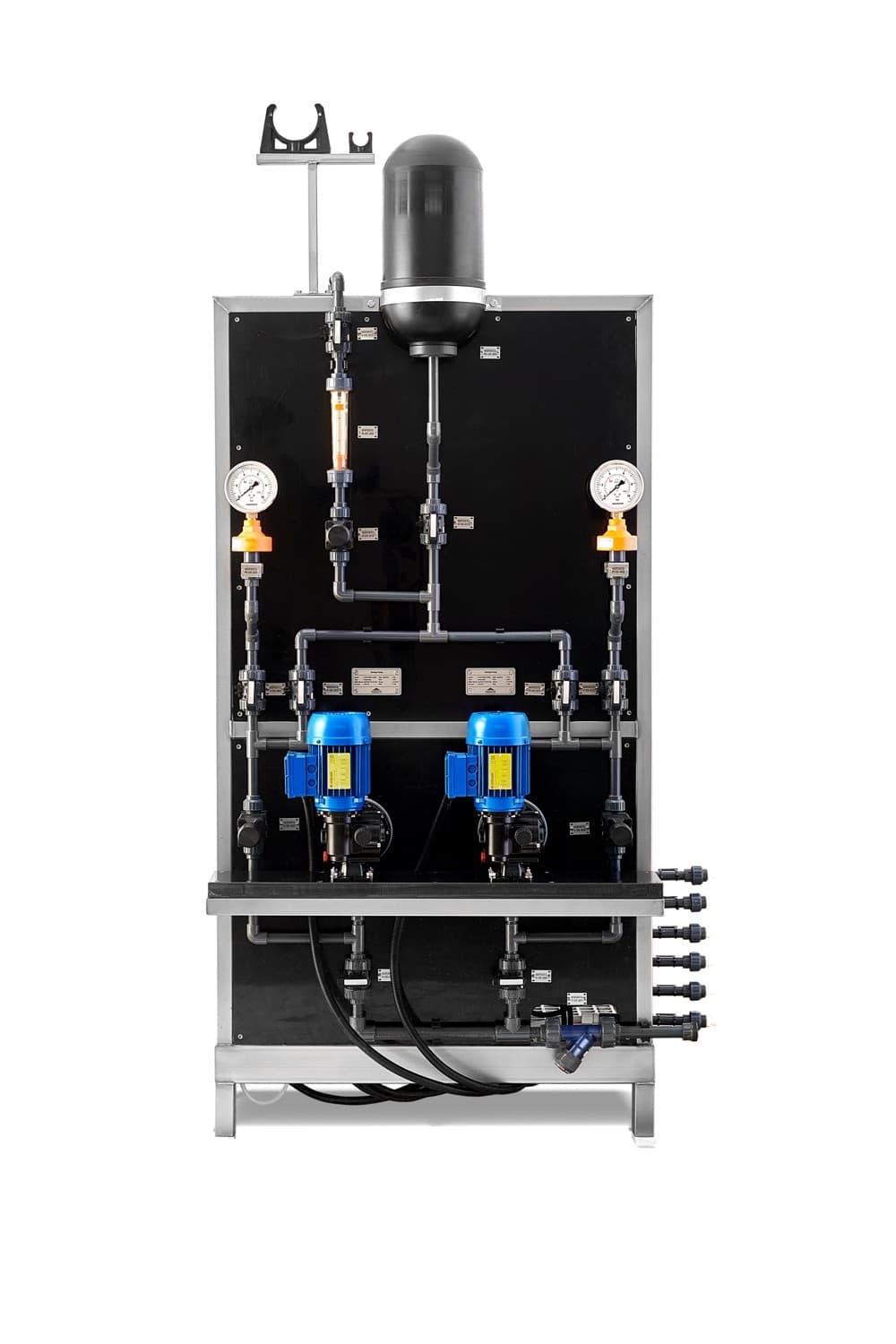

Dosing Unit
In both UNO & DUO designs, there are two dosing units (1+1), consisting of one primary and one backup, that support the entire system.

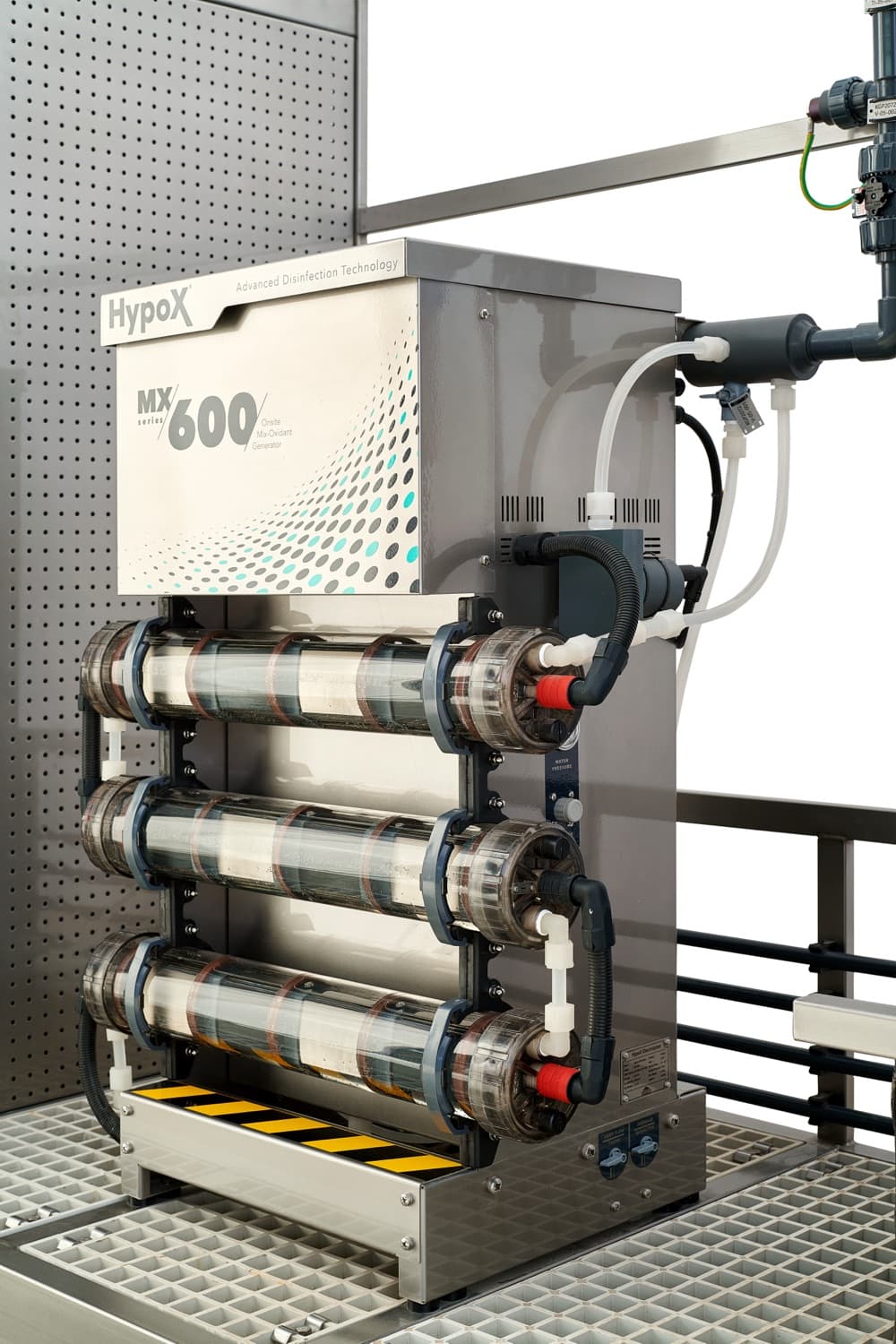

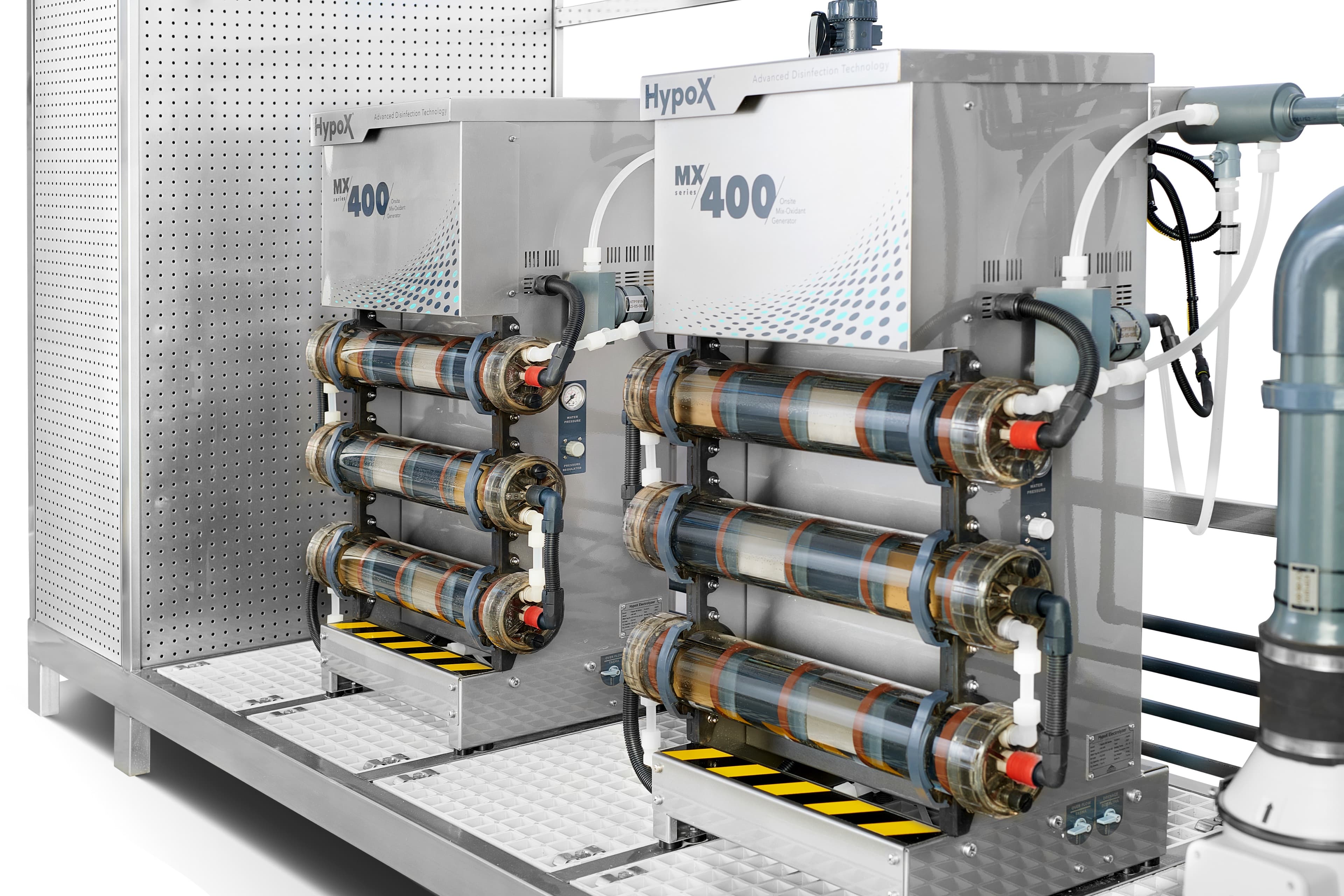

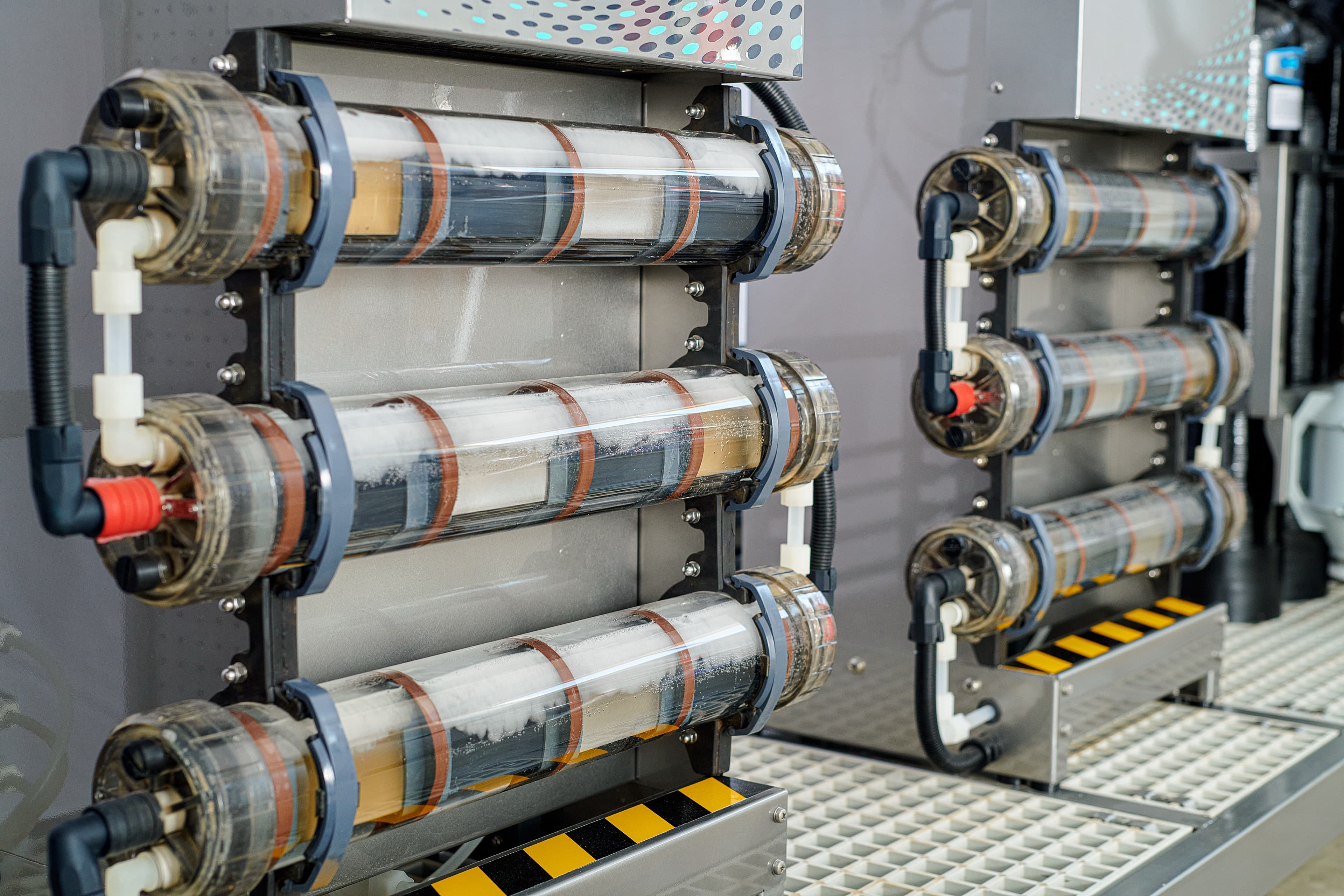

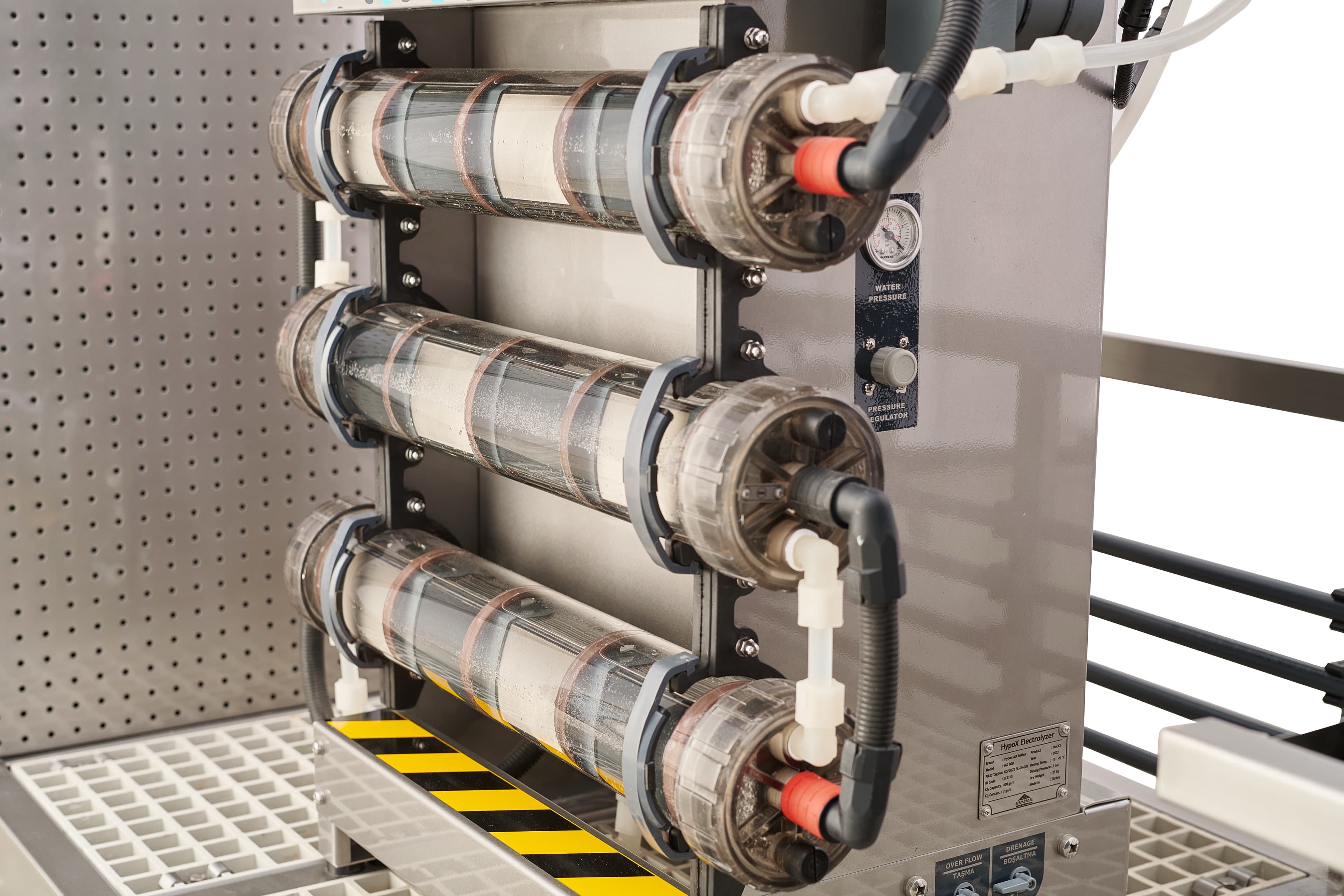

State-of-Art Electrolyzer
As the heart of electrochlorination systems, the electrolyzer unit represents a unique and highly advanced technology. Manufacturing these cells demands precision engineering, cutting-edge materials, and rigorous quality control to ensure long-term performance, efficiency, and durability.
Kemisan—one of the few true pioneers in this field!
Electrode R&D
The catalytic coatings, which represent our core expertise, are developed entirely in-house by Kemisan's R&D department for use in our Electrochlorination systems. Continuous R&D efforts focus on enhancing chlorine production efficiency while reducing energy consumption by refining our coating formulations.
Electrode Coating
The catalytic coatings for the cell anodes used in our ElectroChlorination systems are developed, manufactured and applied 100% in-house by Kemisan leveraging 50 years expertise. Our high-efficiency, durable coatings enhance system efficiency and provide long-lasting operation, and guaranteed 100% by Kemisan!

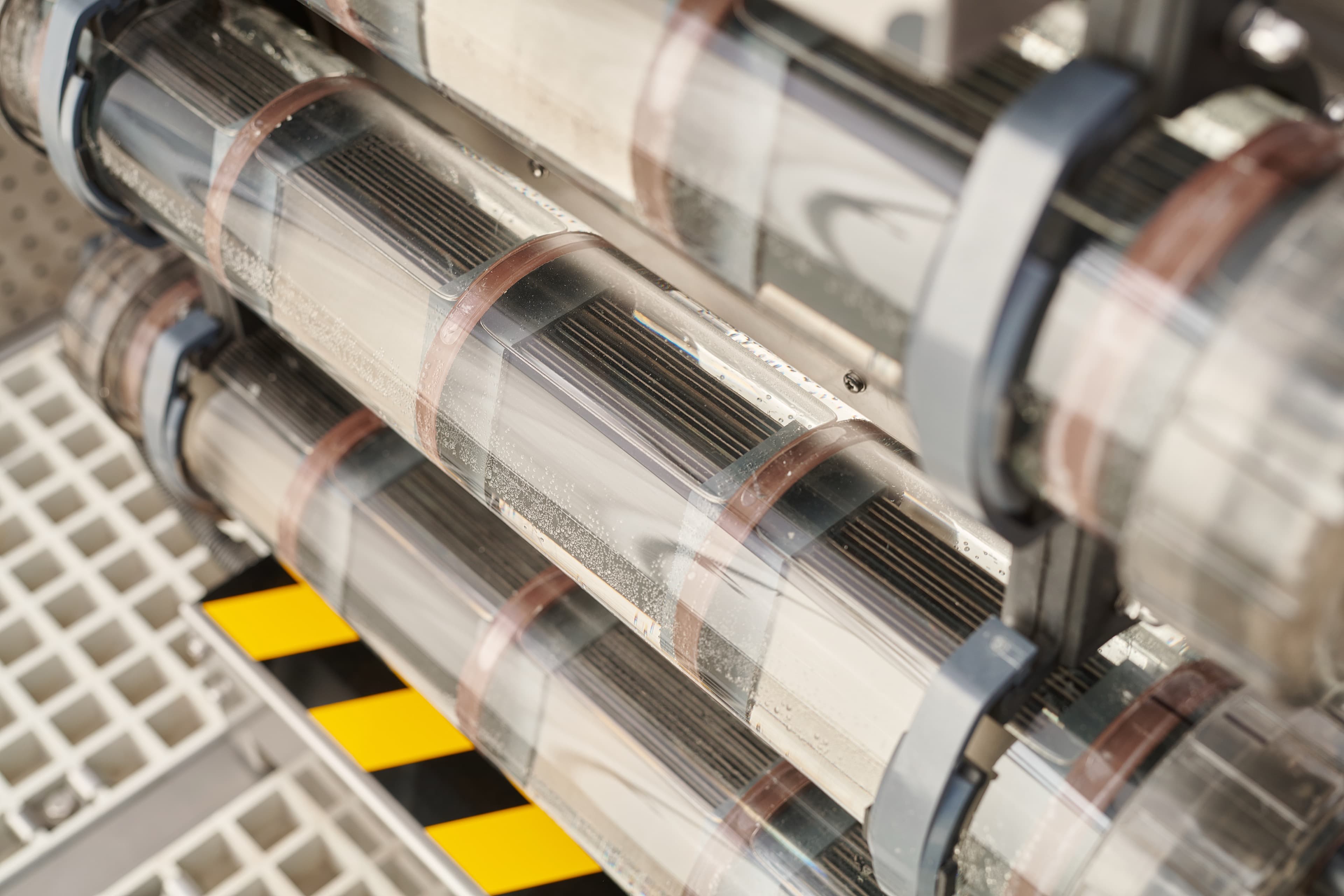

Cell Manufacturing
Our DSA-type cell is fully manufactured 100% in-house by Kemisan's skilled craftsmen. Strict quality control at every stage guarantees high performance, longevity, and efficiency in electrochlorination applications.
Optimum Consumption
By integrating advanced engineering techniques and innovative technologies, our systems minimize salt & electricity consumption while maximizing performance. Our systems consumes 3,5 kg Salt and 4,5 kW electricity for 1 kg/h (100% Cl2 bases) NaOCl production.
5 Years Guarantee
Kemisan offers a 5-year guarantee on its electrolyzer units and electrodes. Additionally, with proper maintenance, the performance will remain as reliable as on the first day.
It's Not OEM Electrolyzer
We design and manufacture our own electrolysis units with its specials coating in-house. Therefore, it's guaranteed by manufacturer, by us. This allows us to handle any warranty issues directly—without involving third parties—ensuring faster response times and a hassle-free experience for our customers.

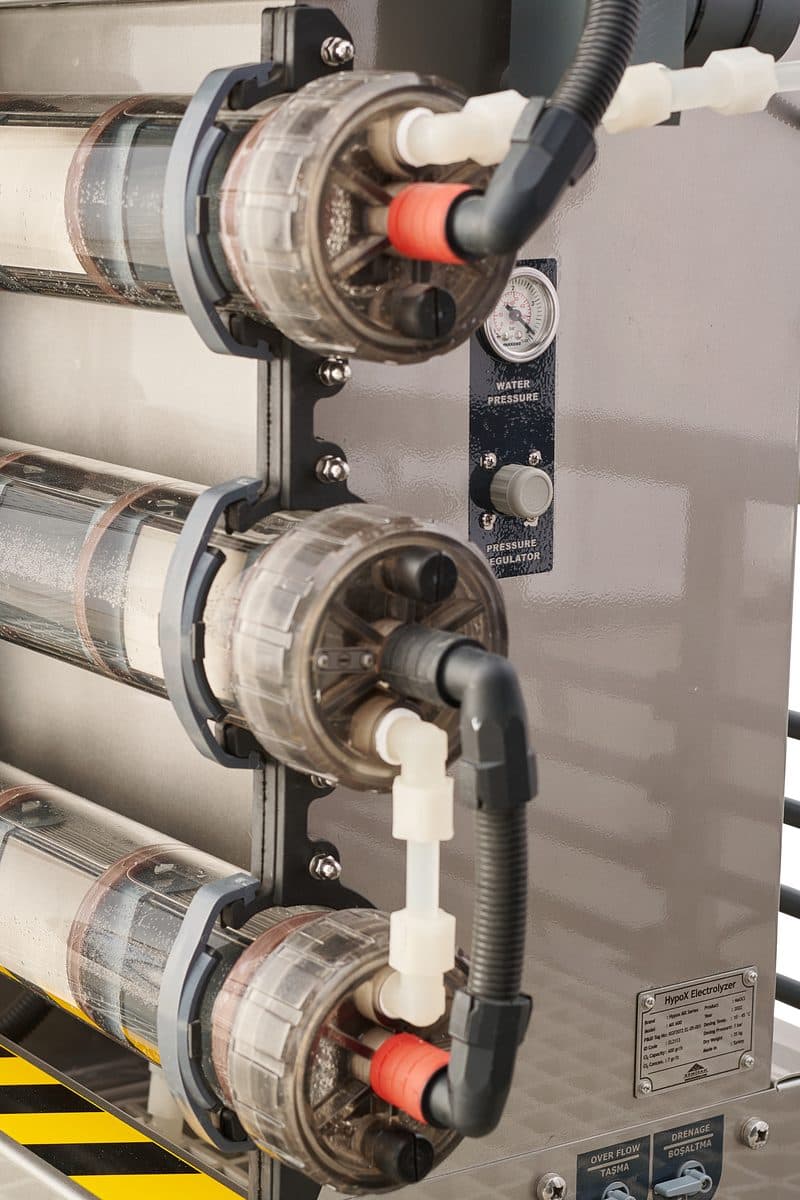

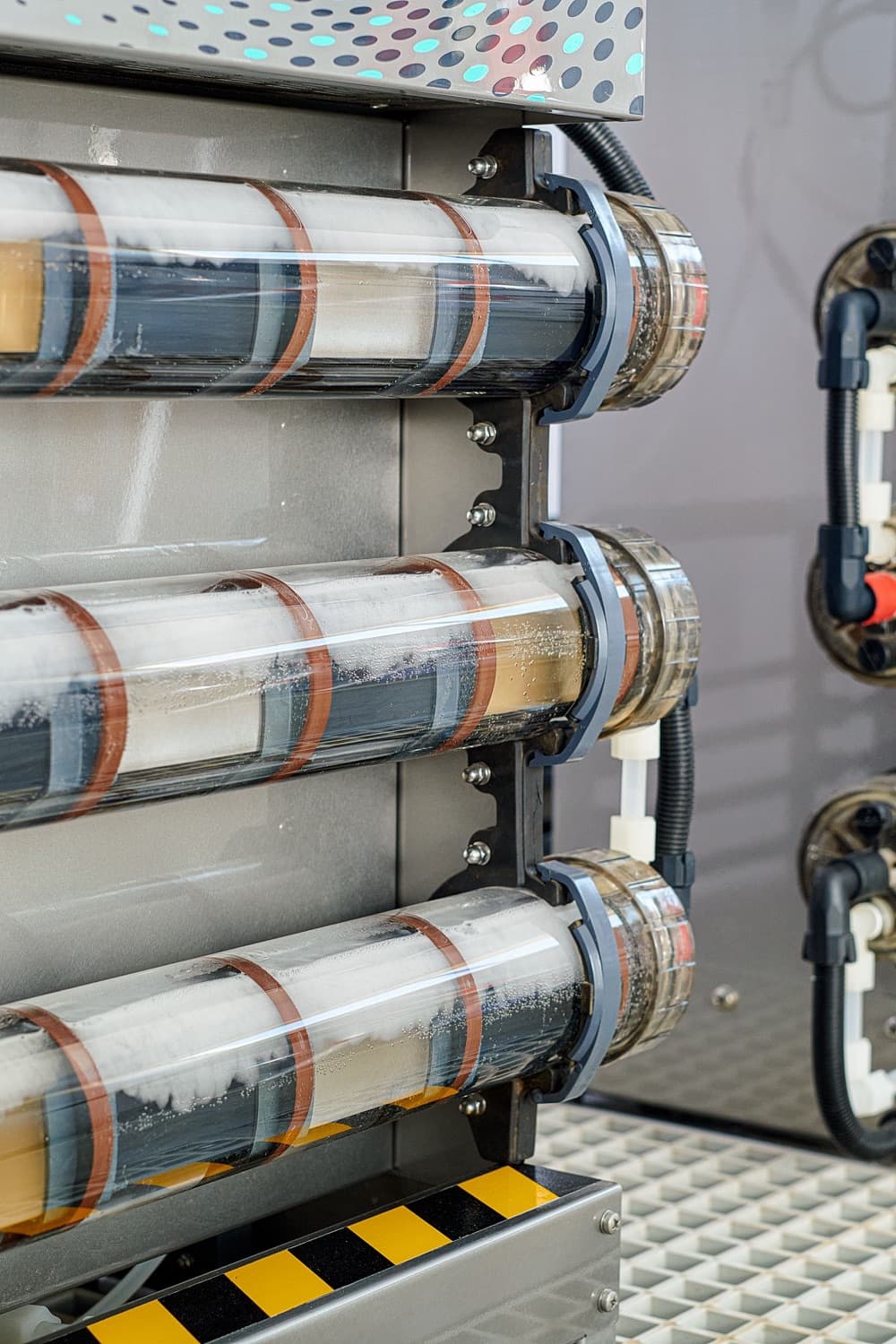

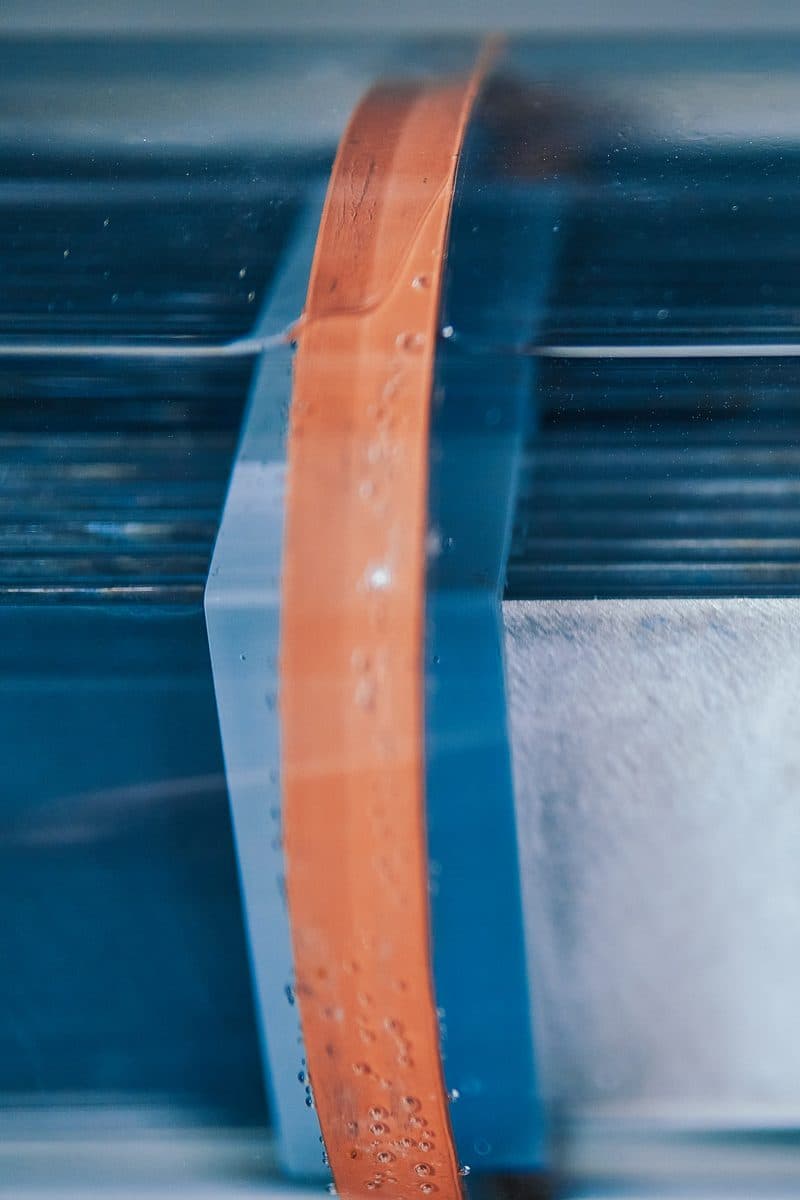

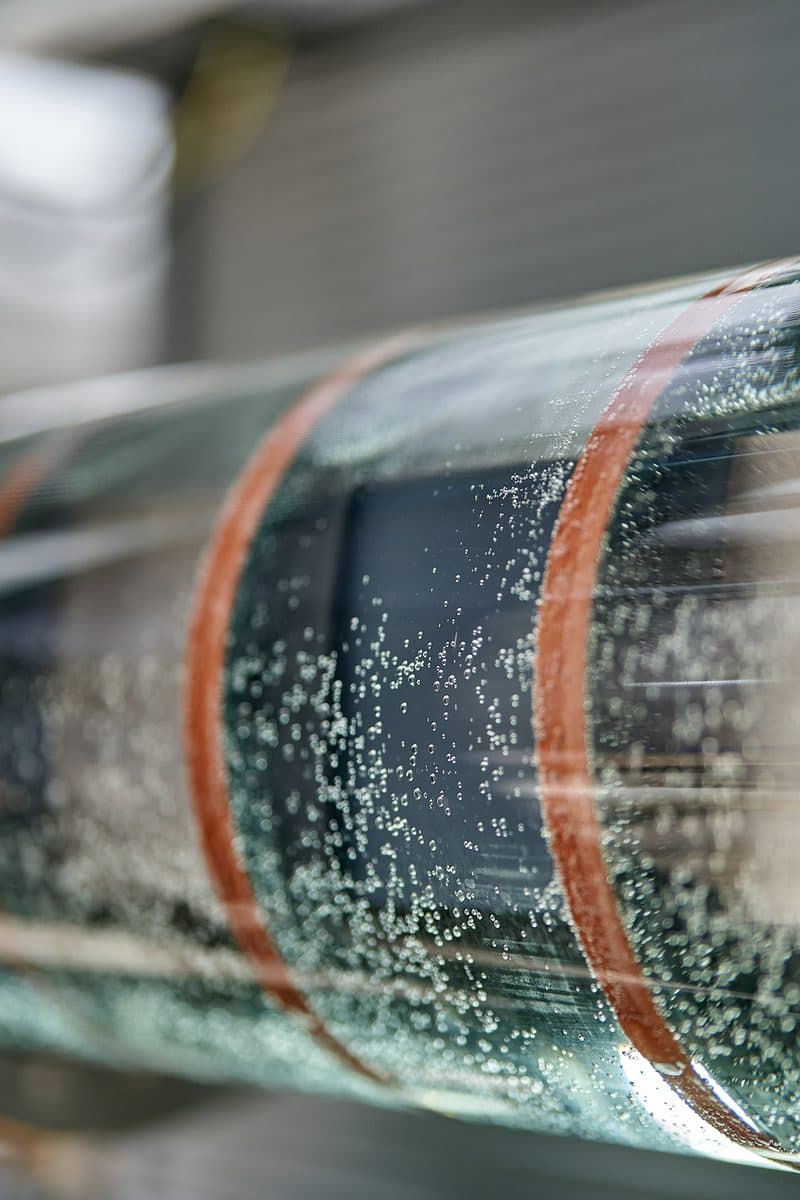

Transparent Cell Design
The transparent cell design of HypoX® electrolyzers allows operators to clearly observe calcification buildup, enabling them to decide when to clean the cell promptly and without delay.
MXO
The Production of Mix Oxidant Rich NaOCl with O-type Electrolyzers
MXO is the advance Mix-Oxidant Rich NaOCl generator as it produces the most effective form of NaOCl with 0.5-0.6% concentration with updated catalyst coatings and process parameters by using salt, water & electricity.
MXH
The Production of NaOCl with H-type Electrolyzers
MXH is the standard On-site Sodium Hypochlorite Generator which is well known as OSG. This model produces 0.8% NaOCl with standard MMO electrode coating and process parameters by using salt, water & electricity.
Safer
Cell Cleaning
Electrode scaling is inevitable—but managing it shouldn’t be hard. Over time, minerals like calcium and magnesium build up on electrodes during electrolysis, impacting efficiency. That’s why every electrochlorination system requires regular acid cleaning.
MX Series offers safer acid cleaning process with automated feature than mobile system.
Integrated But Not Mobile
Lorem ipsum
Smart & Easier Operation

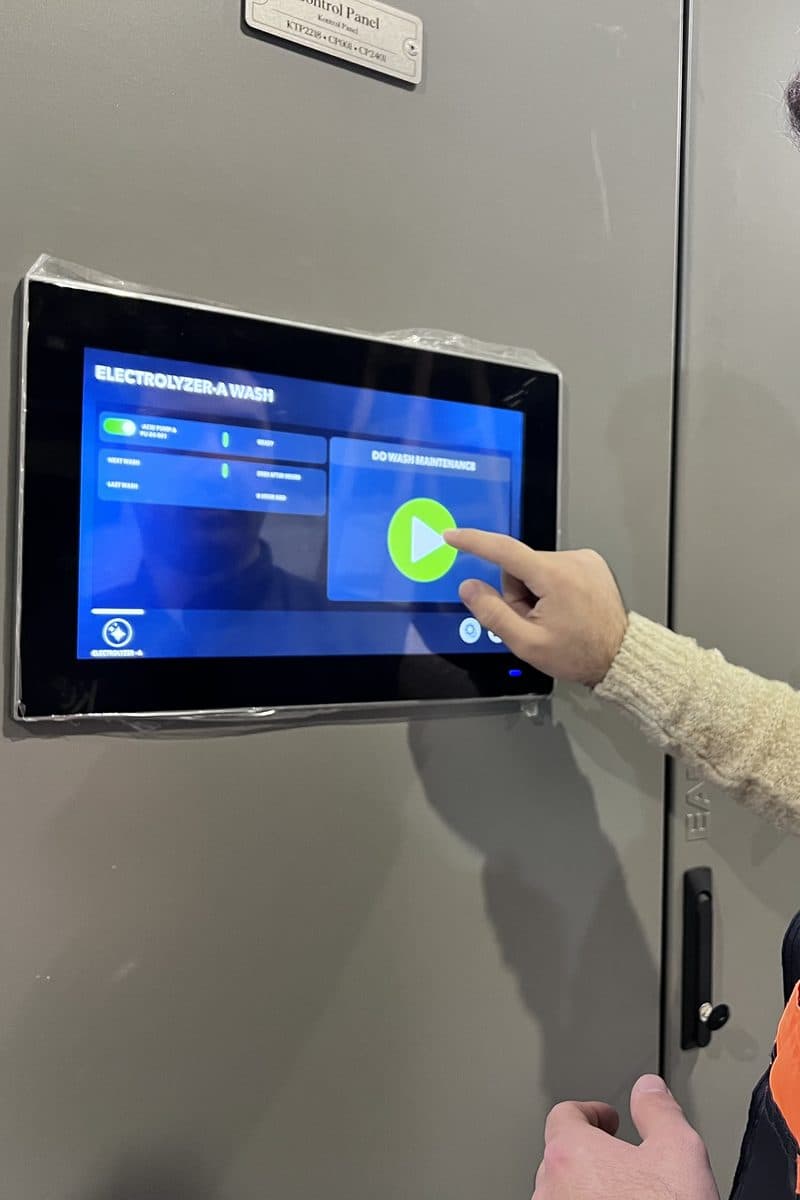

HypoX® MX Series offers fully PLC-guided cell cleaning maintenance, replacing the fully manual setup and operation of mobile cleaning trolleys. This ensures a much simpler and failure-free maintenance process—even for operators with minimal experience.
Transparent Cell Design
The transparent cell design of HypoX® electrolyzers allows operators to clearly observe calcification buildup, enabling them to decide when to clean the cell promptly and without delay.

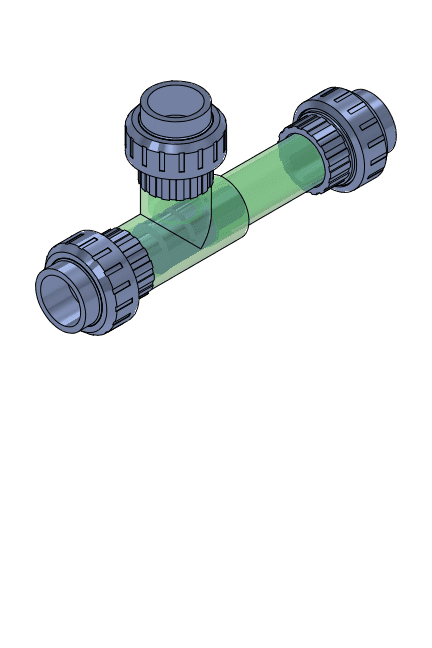

Pump-Free
Brine Dosing
is Here!
Perfection comes through simplification. Unlike most electrochlorination systems that rely on pumps, HypoX uses a lifetime-guaranteed ejector design for brine dosing. This innovative system eliminates common issues with diaphragm pumps, reducing maintenance costs and complexity. By removing pumps and their moving parts, HypoX ensures reliable, cost-effective, and effortless brine dosing.
Lower
Maintenance
Don't underestimate the periodic maintenance and short life-time of diaphragm brine dosing pumps. Jet Eductor® has fewer moving parts compared to diaphragm pumps, which reduces wear and minimizes maintenance requirements over time.
Don't Underestimate
Economical Burdens
With lower maintenance and operational costs, Jet Eductor offers a more economical solution in the long run. Also, Jet Eductor's design is less susceptible to clogging, which means fewer blockages that can lead to costly malfunctions.

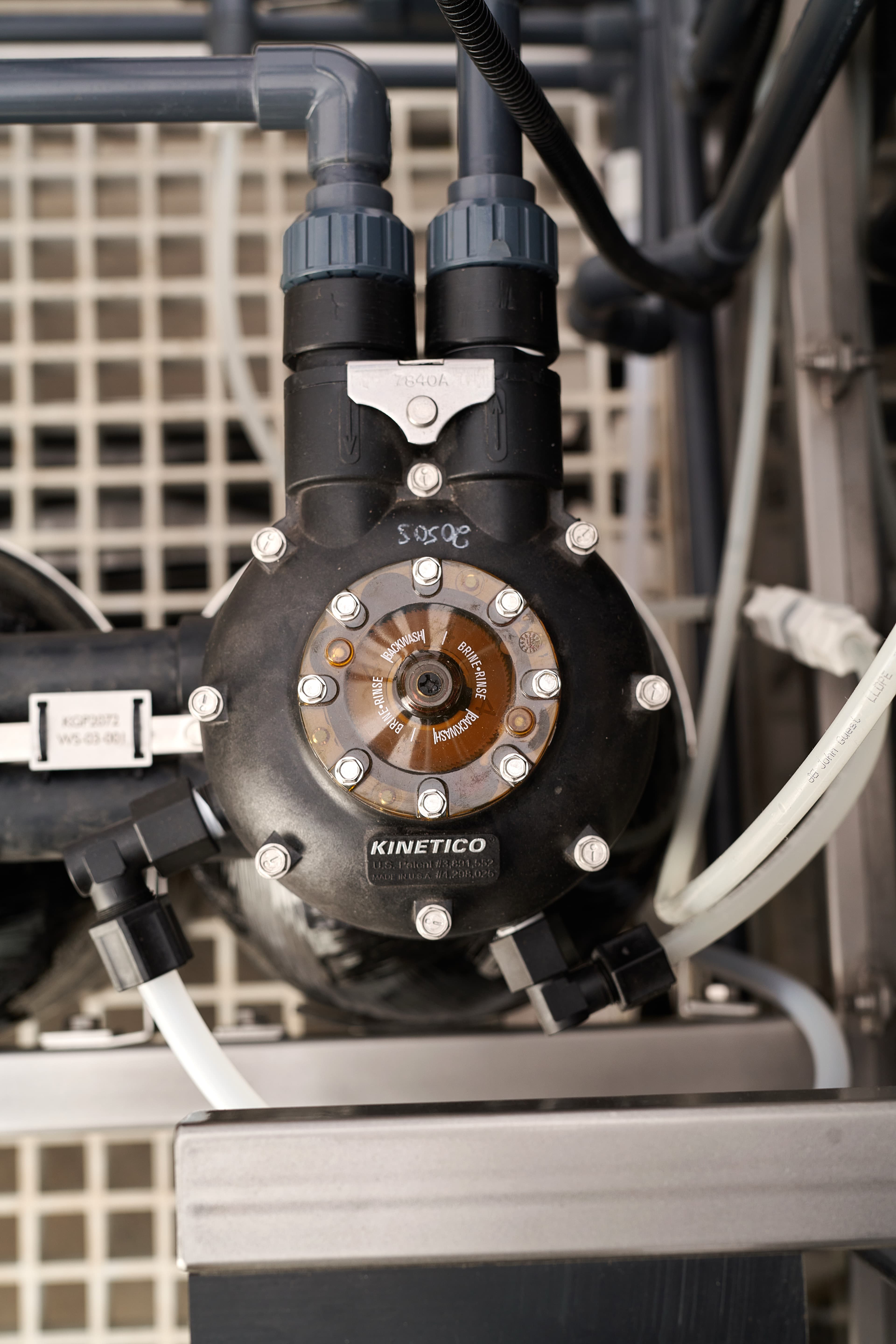

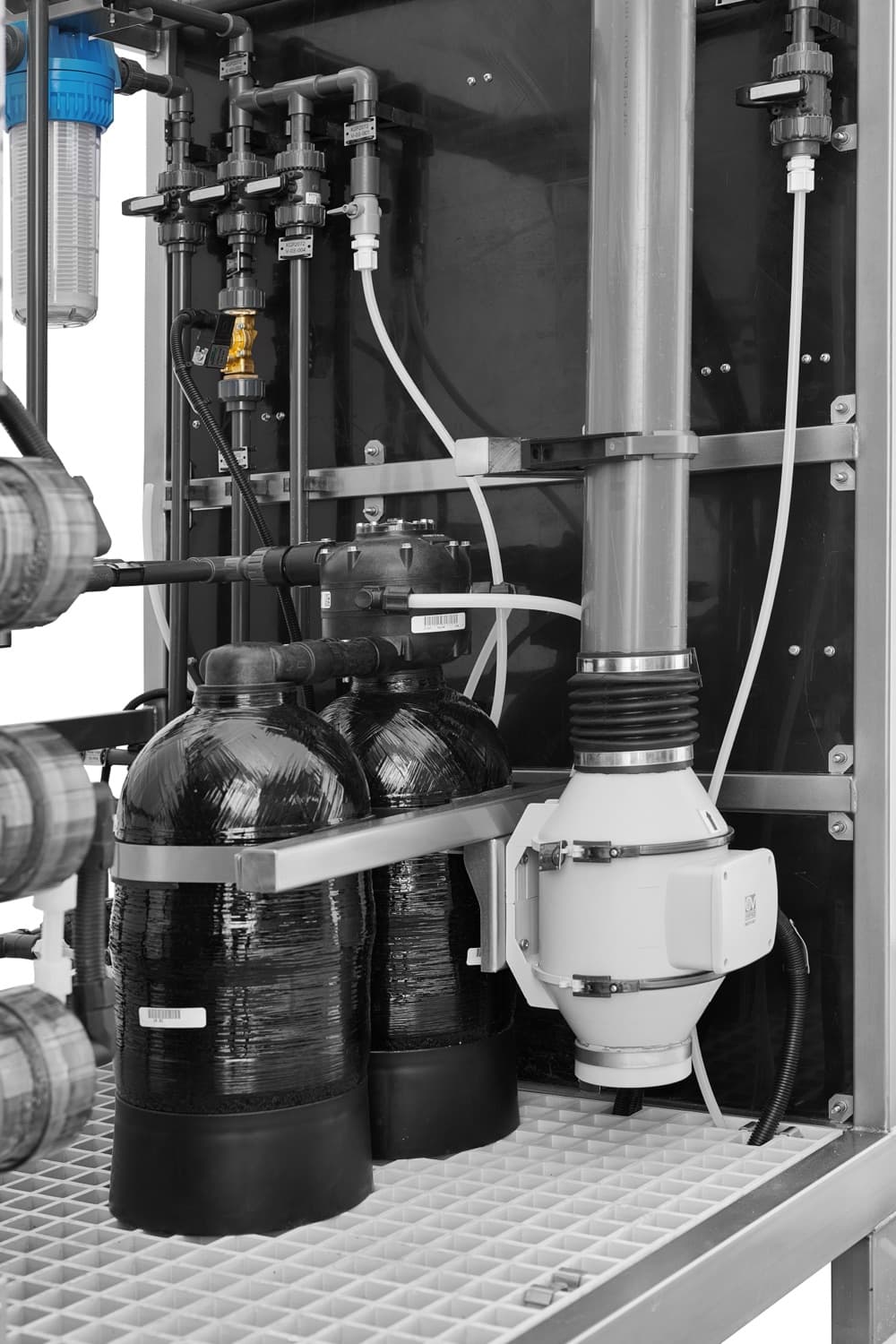

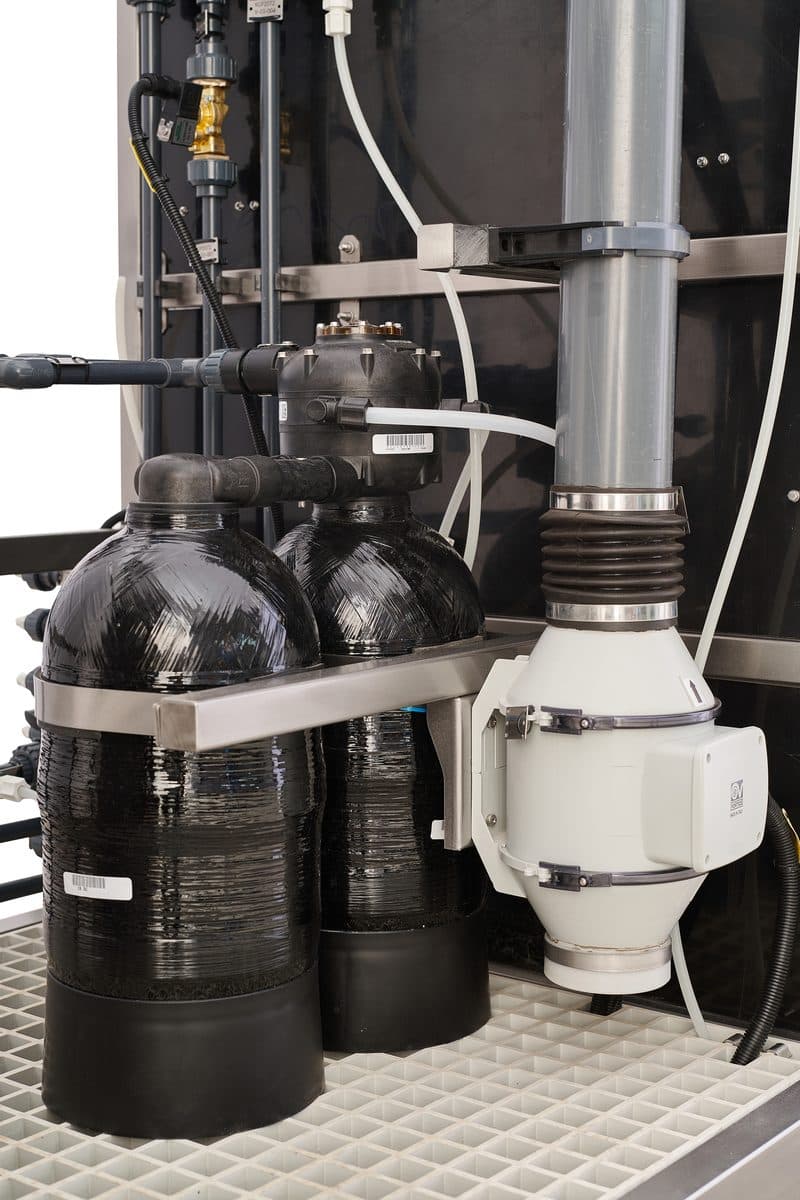

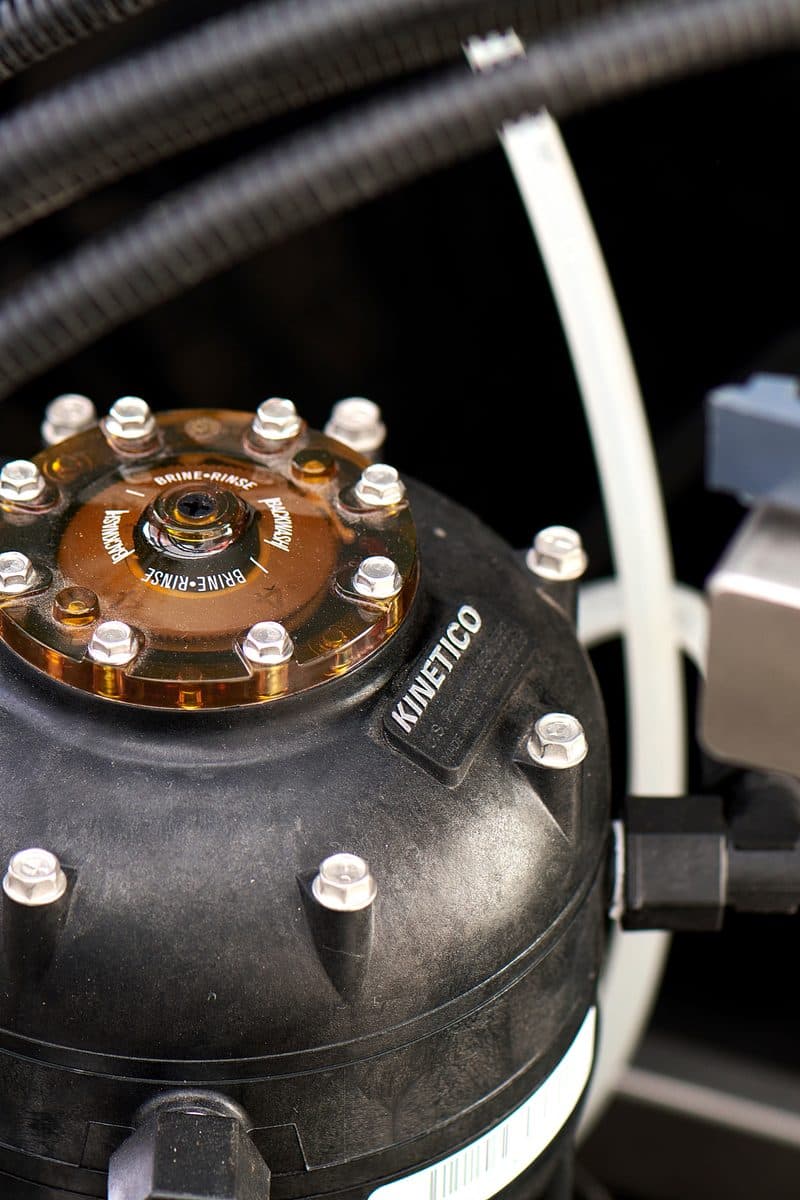

Uninterrupted Process with Non-Electrical Softener
Instead of electrical softener controller, Kemisan provides Mechanical (non-electrical) Softener Controller for eliminating breakdown of the softener unit that can be occurred by a single trip came on electronic controller. Equipped with single mechanical controller head and twin resin tubes, process can be proceed on while regeneration of the resins.
Less Failure, Less Interruption
Non-electrical softeners experience fewer breakdowns compared to their electrical counterparts. This translates to fewer operational interruptions, ensuring your electro-chlorination plant runs smoothly and efficiently.
Less Maintenance, Less Cost
With fewer moving parts and a simpler design, non-electrical softener requires minimal maintenance. This not only lowers maintenance costs but also allows your team to focus on more critical tasks.
Longer Service Life
Non-electrical softener has longer service life than electrical one thanks to its simpler design and lack of electronic component.

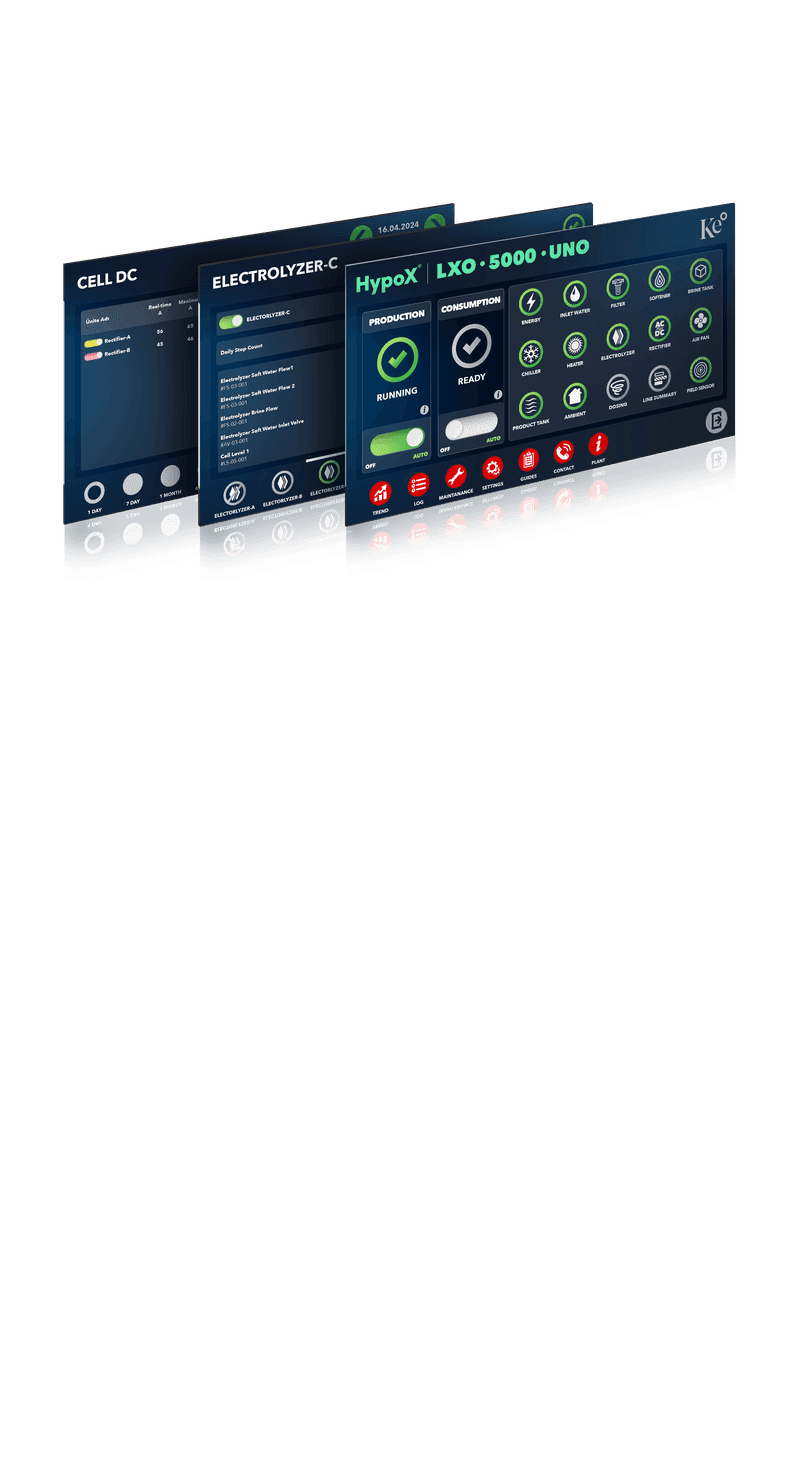

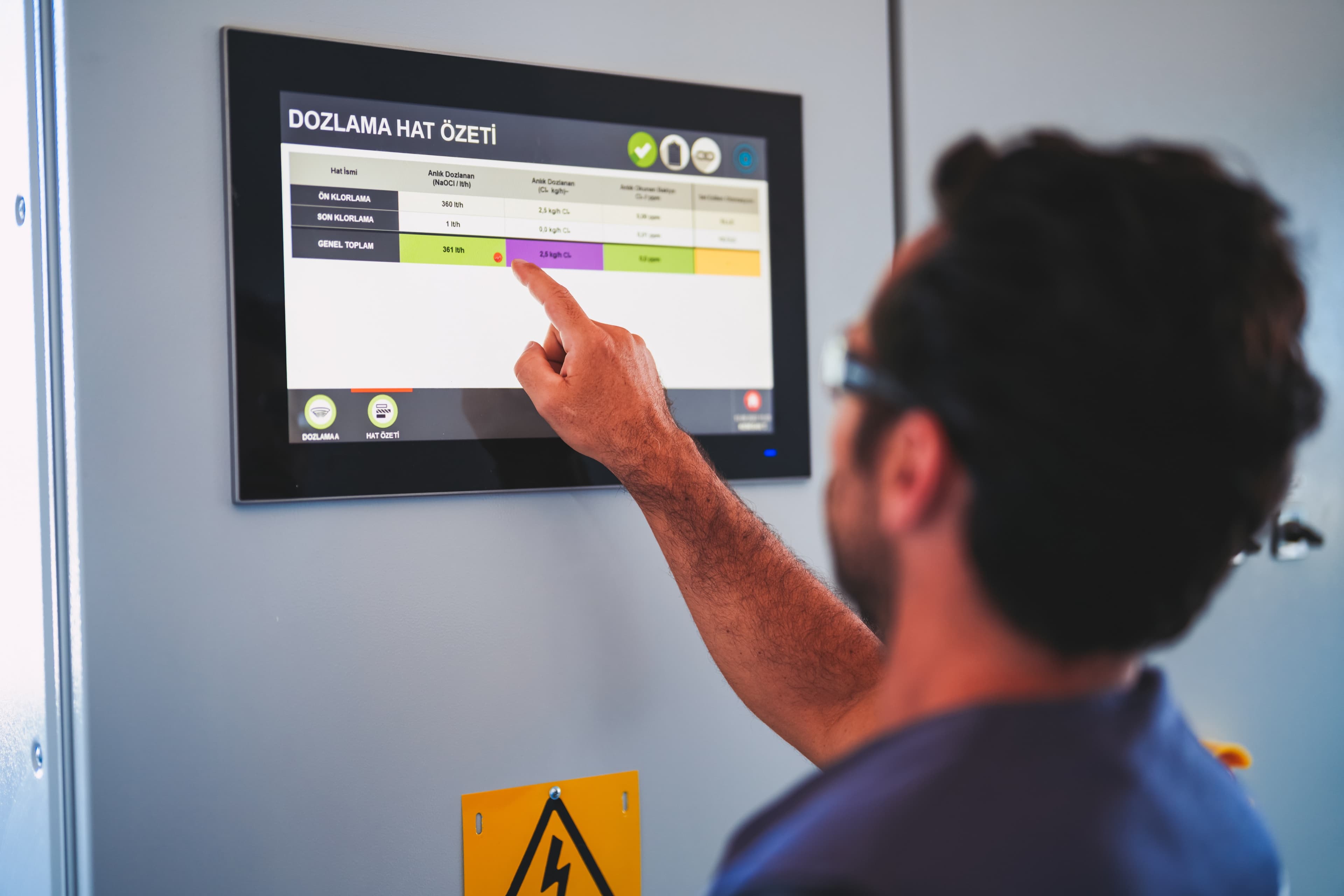

PKEM. GEN.4
Thanks to our advanced PKEM.GEN.4 software, chlorination control is now more intelligent than ever. With its revolutionary user-friendly interface, smart alerts for operator guidance, self-running automations remote access and much more, managing your chlorination process has never been this smart, simple and even fun.

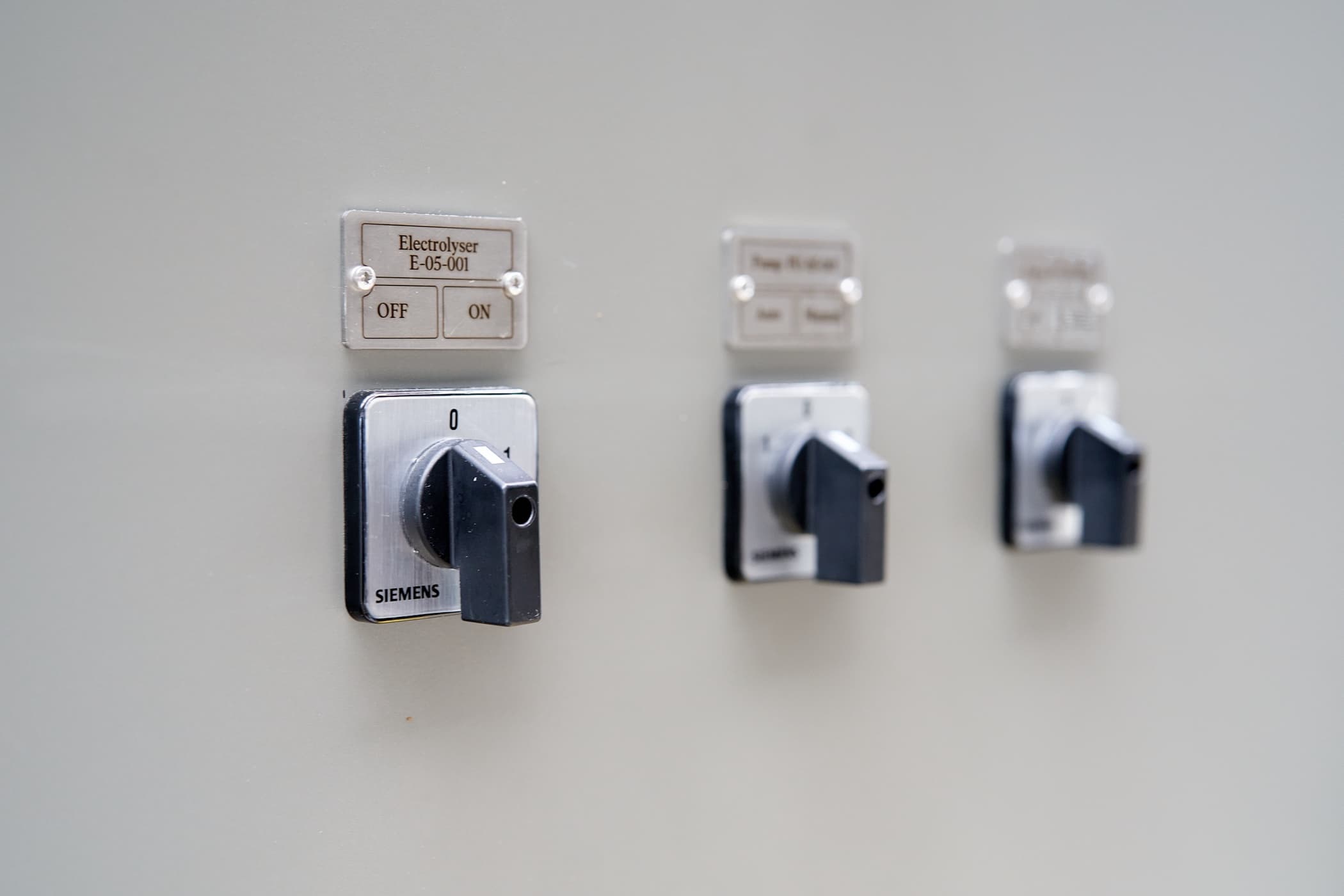

Manual Mode Button
Immediately switching to manual mode with a single button in case of PLC Failure offers uninterruptible process, ensuring ultimate flexibility with zero complexity to continue production and dosing process.

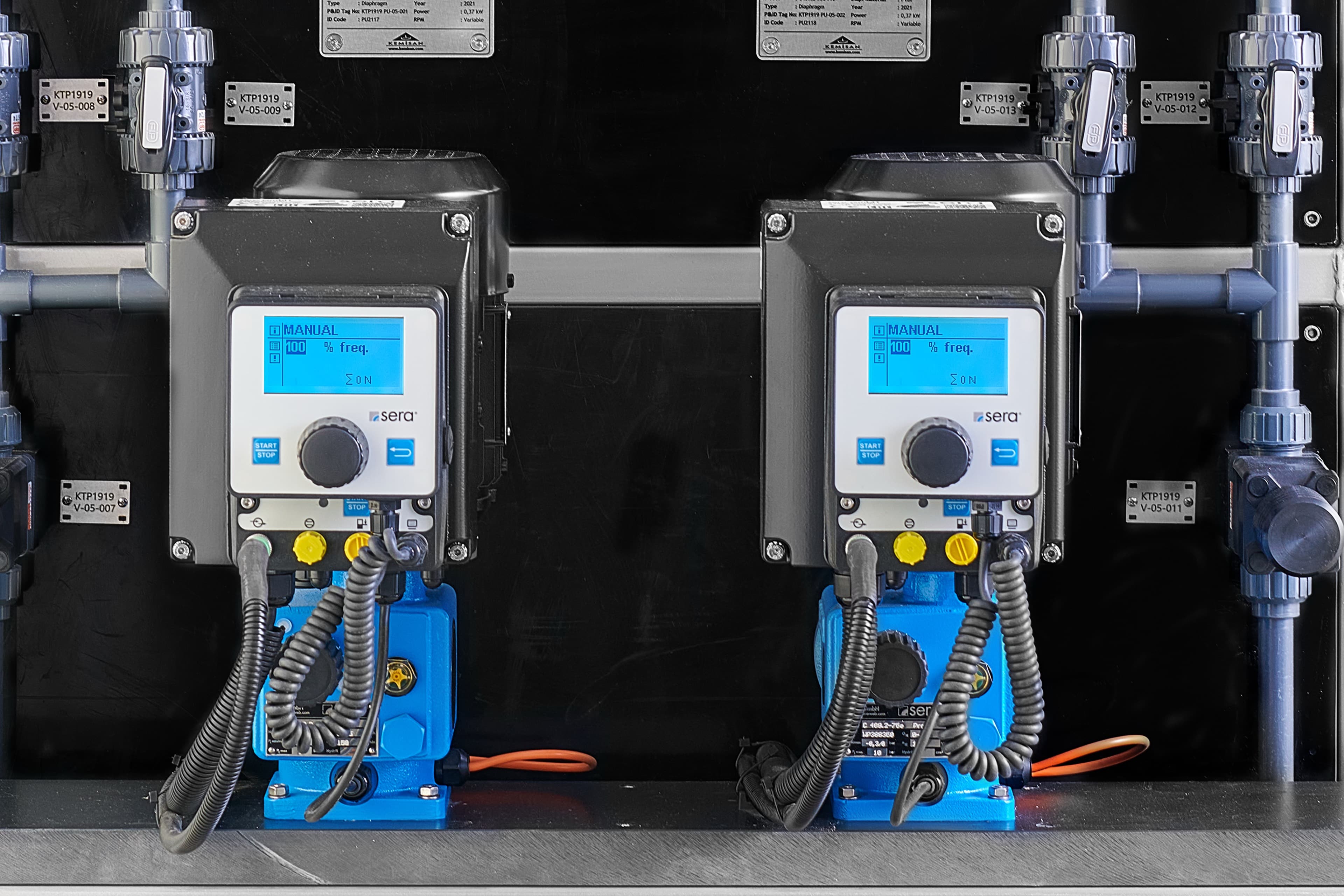

Smart Automations for Comfortable Dosing & Transfer Process
At Kemisan®, we are not just committed to producing hypochlorite through our on-site electrolyzers—we promise a lifetime of comfortable, hassle-free dosing with our perfectly worked automation systems. Integrated with PLC technology, our system ensures consistent, accurate dosing or transfer with minimal intervention, offering you peace of mind and efficiency every day. Discover the most efficient dosing automation for your chlorination needs!
Double Factor Dosing Automation Prevents Chlorine Fluctuation
Double Factor Dosing Automation ensures a stable chlorine output in your treatment plant by adjusting dosing based on two key data points: set value (KG) and signal (Flow or PPM). This dual-factor approach acts as a safeguard, accurately determining the required chlorine dosage to maintain consistent water quality. Therefore, it is suggested to prevent seasonal fluctuations especially for Drinking Water Treatment Plant. Depending on client requirements, various combinations such as Flow+PPM, Flow+KG, or PPM+KG can be selected for automation.
Single Factor Automation for Easy & Accurate Dosing
Single Factor Dosing Automation provides to set chlorine dosing according to single set value OR signal. Thus, you can get not only easy dosing process management, but also accurate one thanks to updating itself according to data. Depending on client requirements, KG set, Flow signal or PPM signal can be selected for automation.
ON/OFF Factor for Effortless Transfer
ON/OFF Factor Dosing Automation provides effortless chlorine transfer according to Pressure set or ON/OFF signal value. This automation is suggested for especially multipoint chlorination processes such as hotel swimming pools.
Although producing chlorine on-site through the electrolysis of brine is always more economical than purchasing it externally, the operation cost such as electricity, heater, maintenance and etc. in electrochlorination plant designs are the most significant factors directly affecting cost savings. For this reason, Kemisan designs its electrolyzer units to optimize salt and electricity consumption, while selecting heat exchangers instead of resistance-type heaters to achieve the most efficient operational costs.
Optimum Cost per Chlorine Production
By integrating advanced engineering techniques and innovative technologies, our systems minimize salt & electricity consumption while maximizing performance. Our systems consumes 3,5 kg Salt and 4,5 kW electricity for 1 kg/h (100% Cl2 bases) NaOCl production.
Maintenance Free Brine Dosing
With lower maintenance and operational costs, Jet Eductor can provide a more economical solution in the long run compared to pump sage for brine dosing. Also, Jet Eductor's design is less susceptible to clogging, which means fewer blockages that can require costly troubleshooting.
Longer Life with Non-Electrical Water Softener
Non-electrical softener has longer service life than electrical one thanks to its simpler design and lack of electronic component. Thus, non-electrical softener requires minimal maintenance. This not only lowers maintenance costs but also allows your team to focus on more critical tasks.

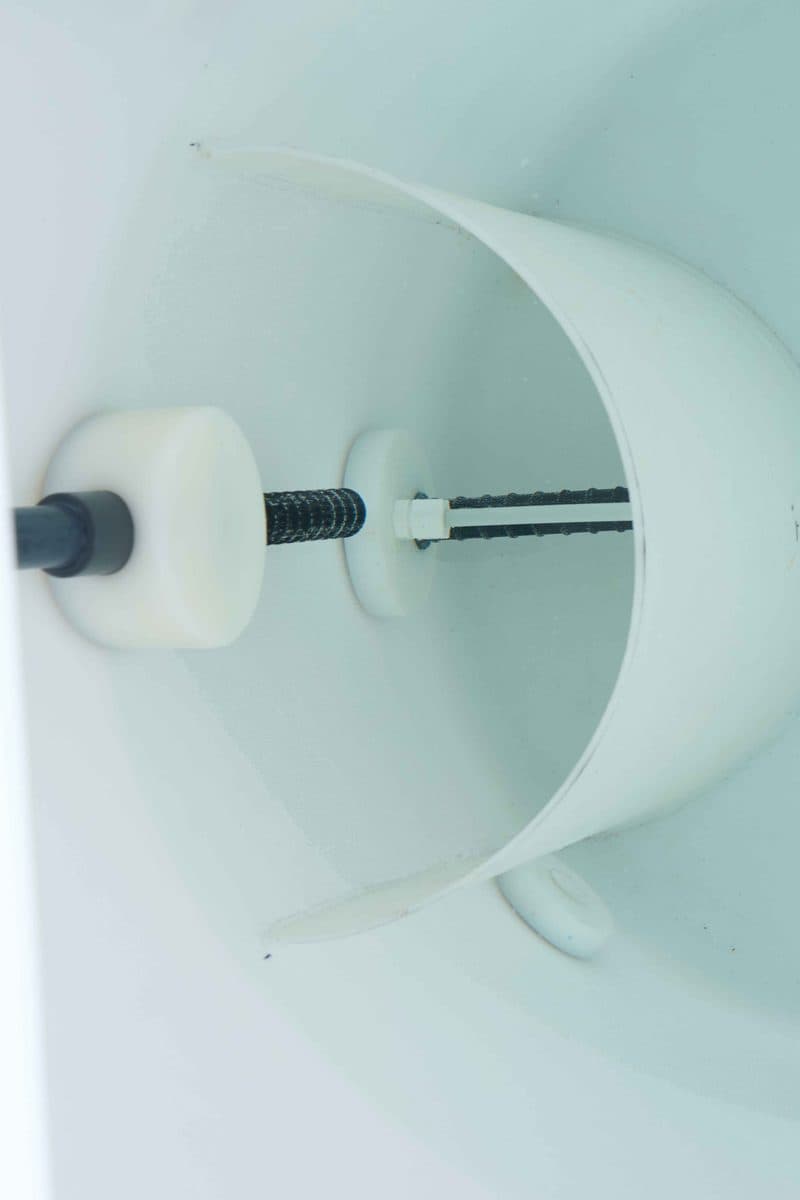

Back-wash for Easy Maintenance
The backwash feature in the brine tank prevents clogging by reversing the water flow to remove sediments and impurities. This helps maintain consistent brine quality and ensures reliable chlorine production. It also reduces the need for manual cleaning, extending equipment life and improving overall system efficiency.

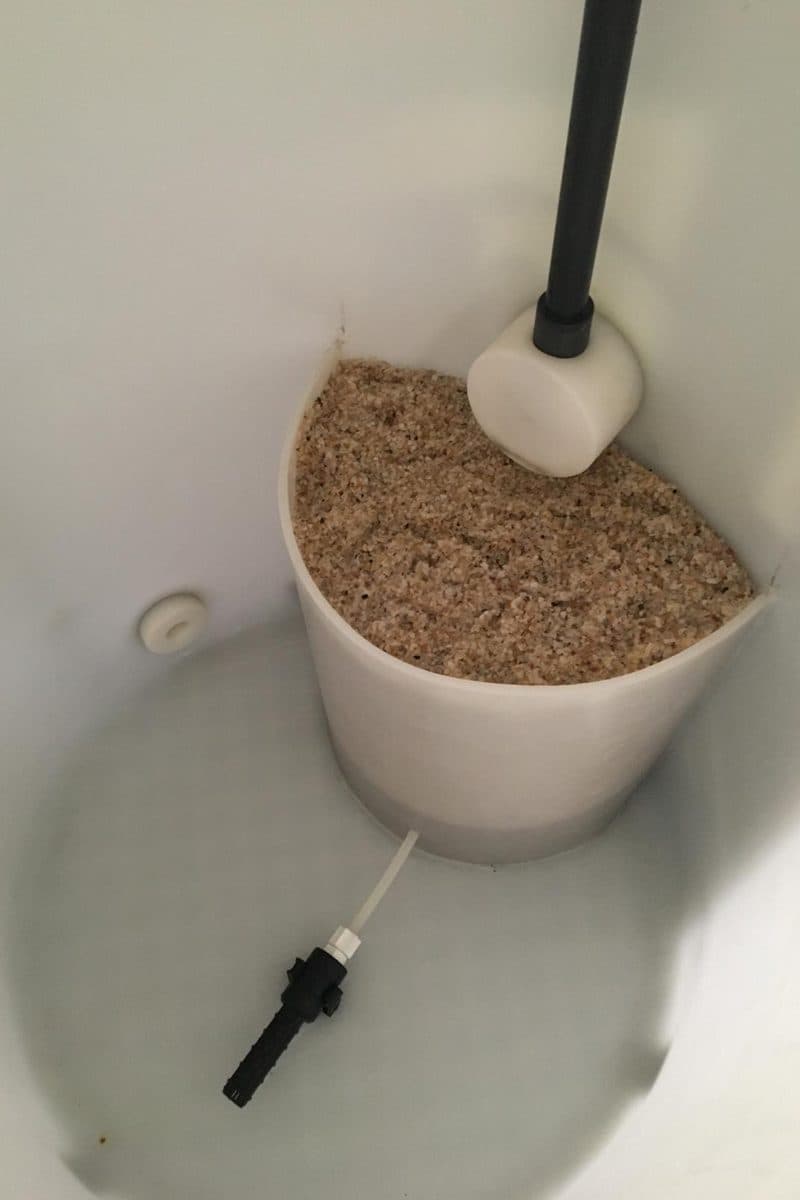

For Continuous Operation Redesigned Filter
The sand filter in the brine tank removes suspended solids and impurities from the solution, ensuring cleaner and more consistent brine. By protecting the electrolyzer from blockages and fouling, it helps maintain stable chlorine production.
5 years
HypoX®'s Electrode Coating has 5 years guarantee by Kemisan!
2 years
Kemisan gives 2 years guarantee for HypoX's overall system and process.
5 years
Kemisan its own Tubar® pumps have 5 years guarantee. (excl. motor part)
Life time
Kemisan's Jet Eductor® used for Brine dosing is guaranteed for life-time by Kemisan!
Our Secret for Long Years of 99,9% Up-Time
What truly matters to us is not how many plants we sell, but how many of our plants are still operating successfully with 99,9% run-time even after many years. Let’s discover how we do it for 50 years!
100% In-house Electrolyzer!
Kemisan is the independent owner and manufacturer of the core electrolysis technology: Electrode Catalytic Coating, which is crucial for the service life and performance of the plants. Unlike other companies that lack this technological capability and rely on third-party vendors for the heart of the system, Kemisan carries out all electrolyzer engineering and electrode catalytic coating processes 100% in-house. This ensures superior quality and complete control over the system's core.
Single Designer & Supplier: No Middleman
We never allow middleman companies to design and supply some portion of our plants to prevent failures or full stop caused by inharmonious components and equipments, conflicts of guarantee responsibilities, imperfect installation and commissioning and so on.
Perfect Harmony of Designing Every Unit All Together
Kemisan independently conducts all design, engineering, and manufacturing activities in-house with a holistic approach, ensuring that every component is designed and produced as part of a seamlessly integrated system. Therefore, Kemisan serves as the single point of authority for all its products and their each components.
50 Years Experience in Electrolysis & Process Design
Kemisan's deep-rooted expertise in R&D, engineering and manufacturing process of electrolysis technology—born into it and dedicated solely to its advancement for 50 years. With dedicated focus and commitment, we continuously push the boundaries of electrolysis innovation every single day since 1976.
Dedicated Technical Service by Designer
Kemisan® is one of the few manufacturers in the industry that provides both direct and designer-approved technical after-sales support. Our commitment to excellence guarantees reliable, expert assistance from our professional Technic Team—both during and beyond the warranty period.
Perfect Installation & Smooth Commissioning
Kemisan provides direct or approved representative services for the installation and commissioning of ElectroChlorination plants. Our goal is to deliver a smooth and efficient setup, ensuring your system is ready to perform at its best from the beginning.
Complete Personal Training
We believe that the perfection of system and process starts with well-trained personnel. Kemisan Academy ensures that your team will be fully prepared with the knowledge and skills necessary to handle all aspects of system operation and maintenance, leading to enhanced performance and reduced downtime of ElectroChlorination systems.
Central Spare Part Bank for Each Components
We don't just build electrochlorination plants—we sustain them for a lifetime. Every bolt, pump, or valve has a guaranteed backup, sourced or replaced by us, so you never have to search elsewhere. While others leave you chasing suppliers, we ensure seamless operation with a one-stop spare part solution. Reliability isn't an option—it's our promise.
