Kemisan designs all electrolyzer units entirely in-house, drawing on 50 years of engineering expertise.
series

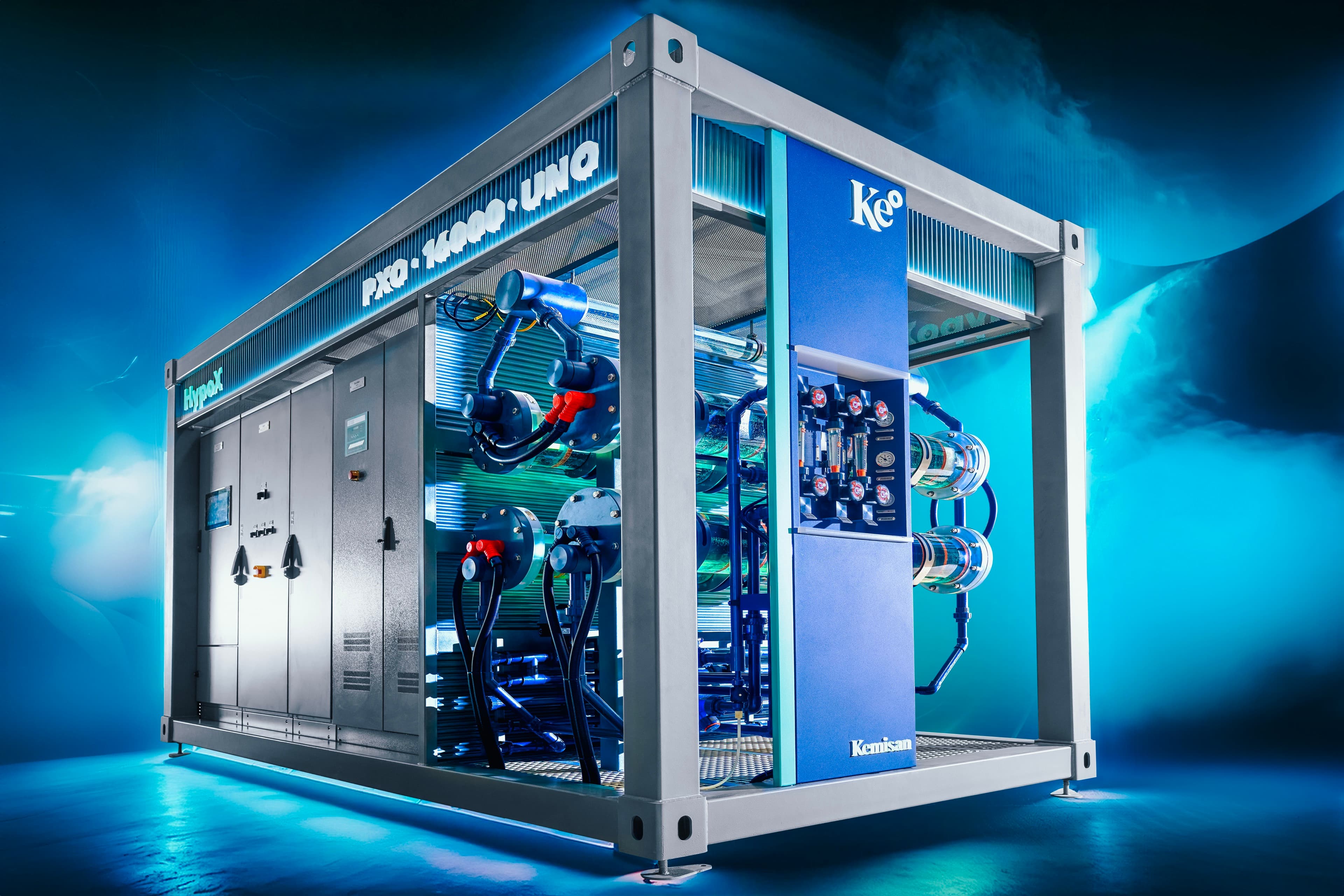

PX

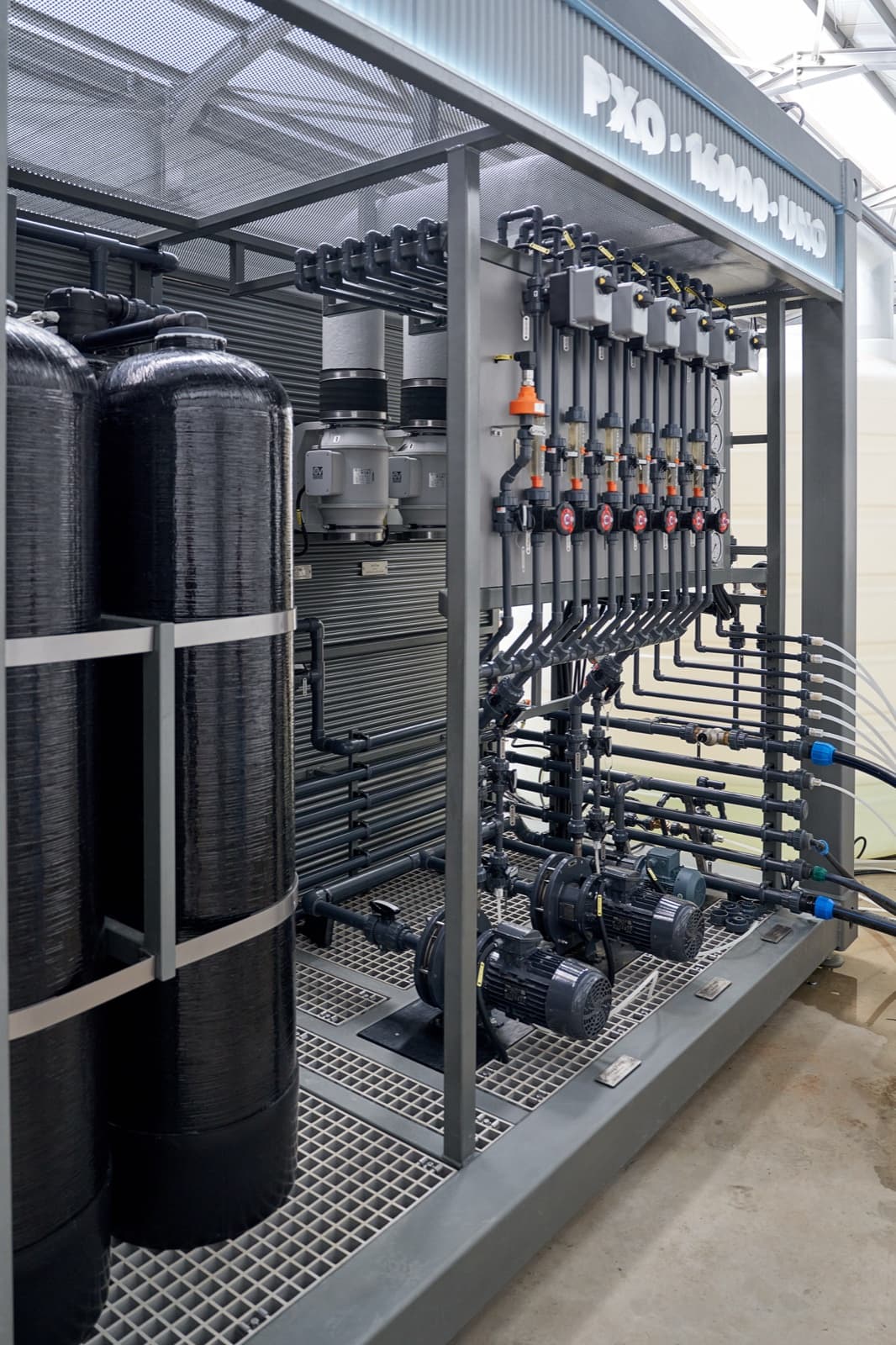

High Industrial Standards on a Small Footprint with Unique, Plug & Play Skid Design

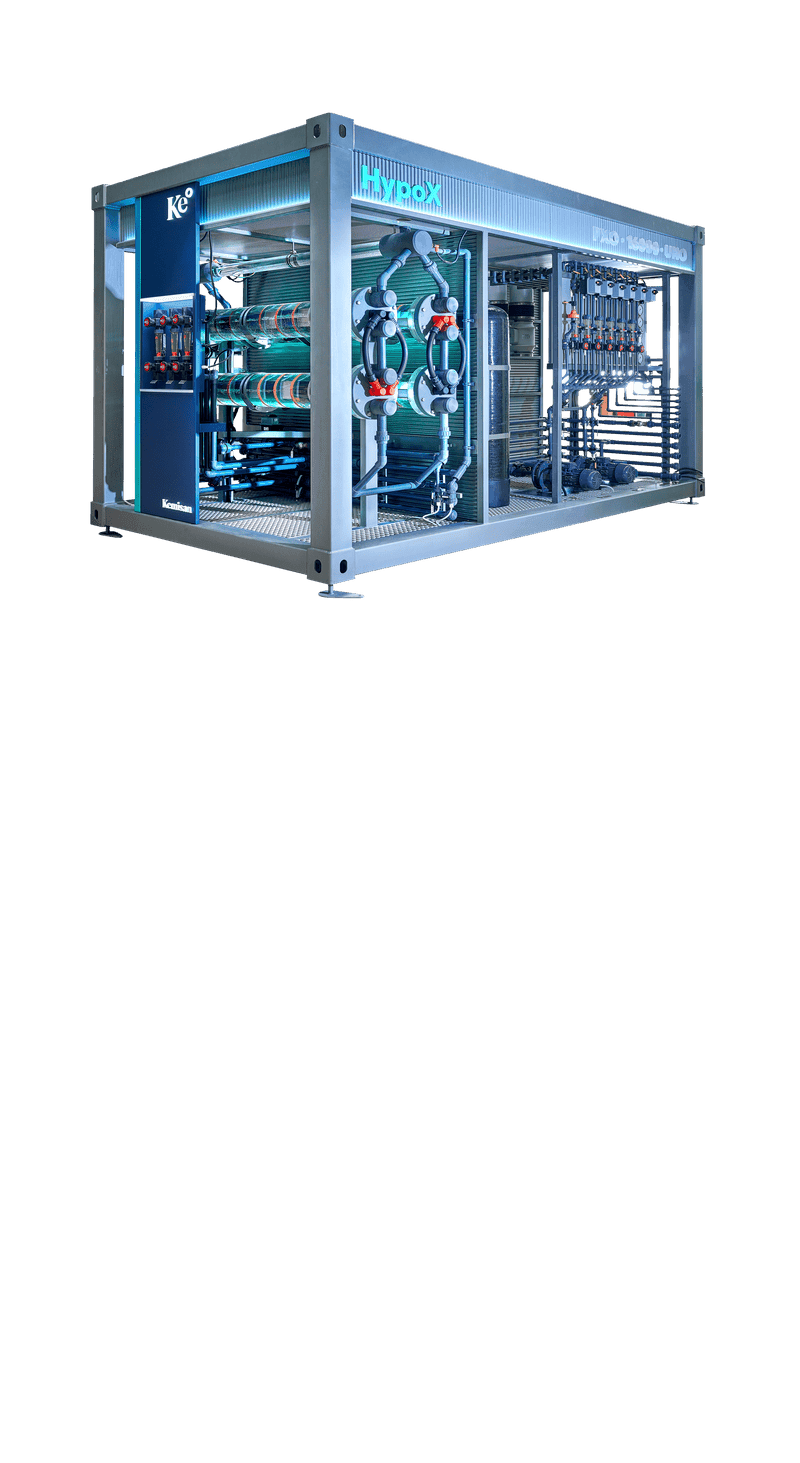

The top one among HypoX's compact skid-mounted models, PX Series offers wide range of capacity options from 1 kg/h to 48 kg/h 100% Cl2 bases.
PX Series is designed for clients with limited space but high industrial demands. With its compact footprint and durable construction, PX Series delivers exceptional reliability and a longer service life.
Already engineered to meet the industrial standards, PX Series offers a more cost-effective solution compared to other models in its class.
Patented
Innovative
Skid Design

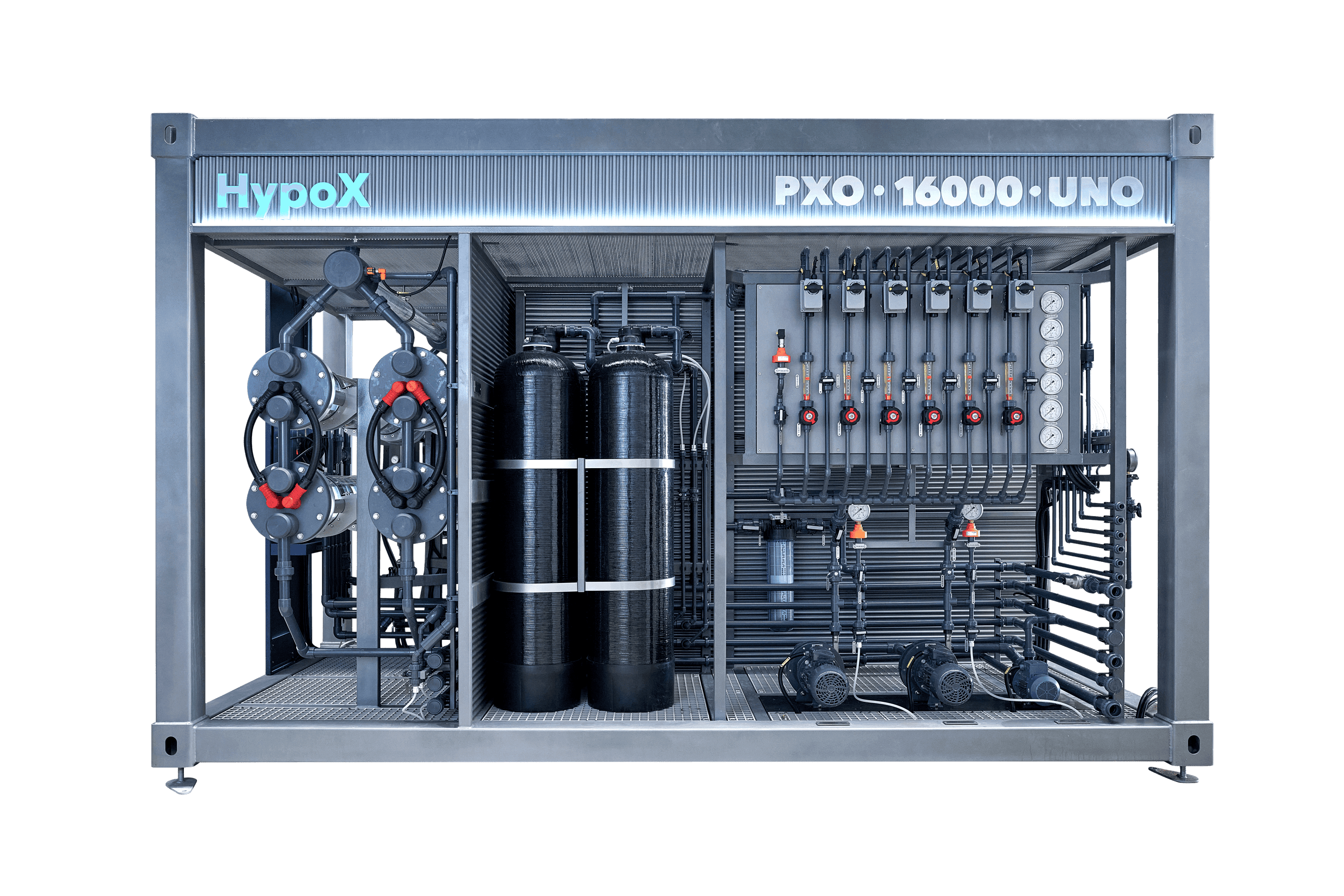

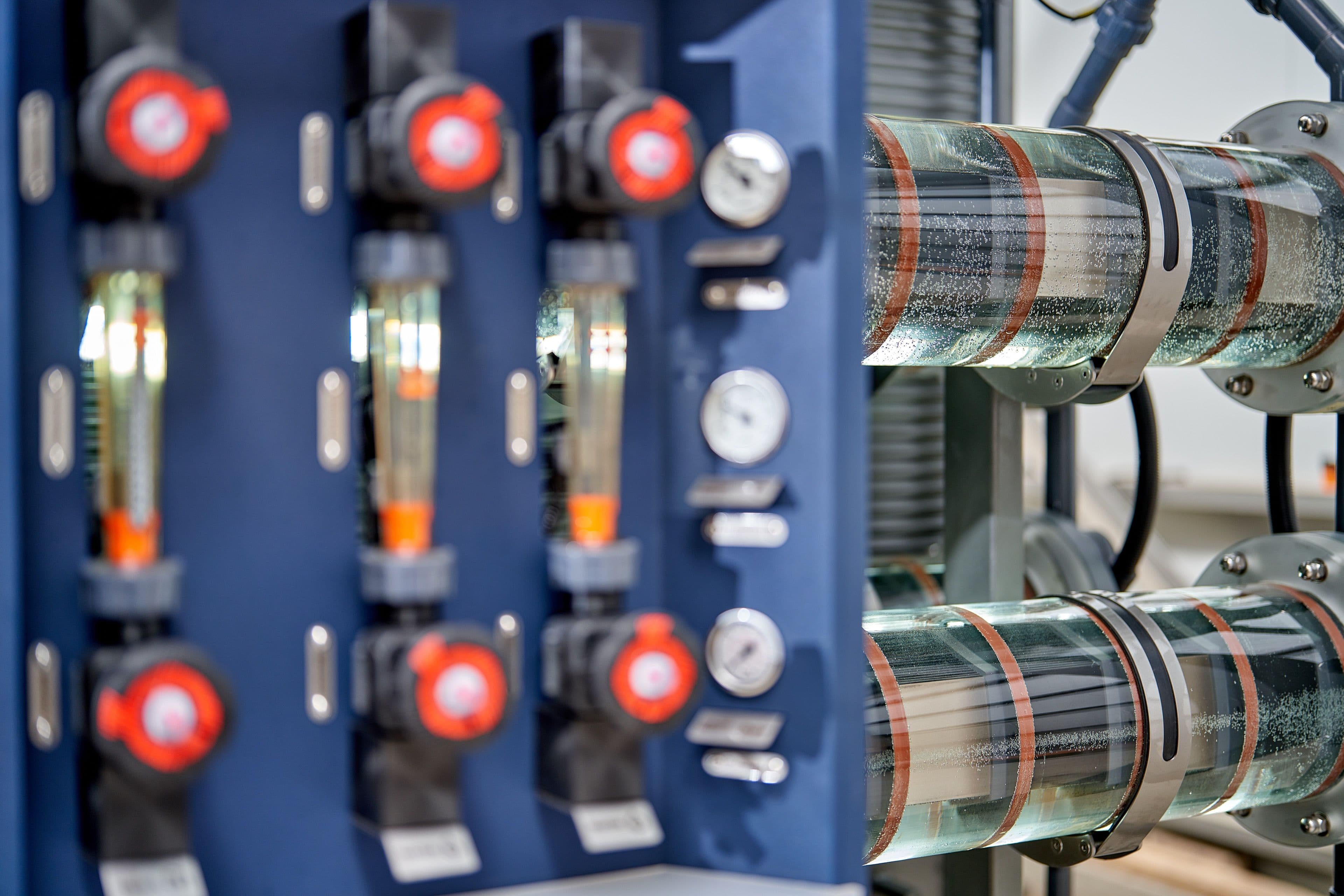

The hallmark of PX Series is Kemisan's patented innovative skid design. This advanced design seamlessly integrates all units, equipment, instruments, and connections onto a single steel frame ensuring 360° easy access to every component.
With its compact, space-saving footprint, PX Series not only meets rigorous industrial standards but also supports high-capacity production. This unique blend of innovation and efficiency positions PX Series as the clear leader in its class.
Small Footprint Design with Zero Wasted Space
PX Series is designed for maximum space efficiency. Its innovative design ensures that every square centimeter is utilized, with each component strategically positioned. This makes it the perfect solution for clients with limited space for chlorination processes.

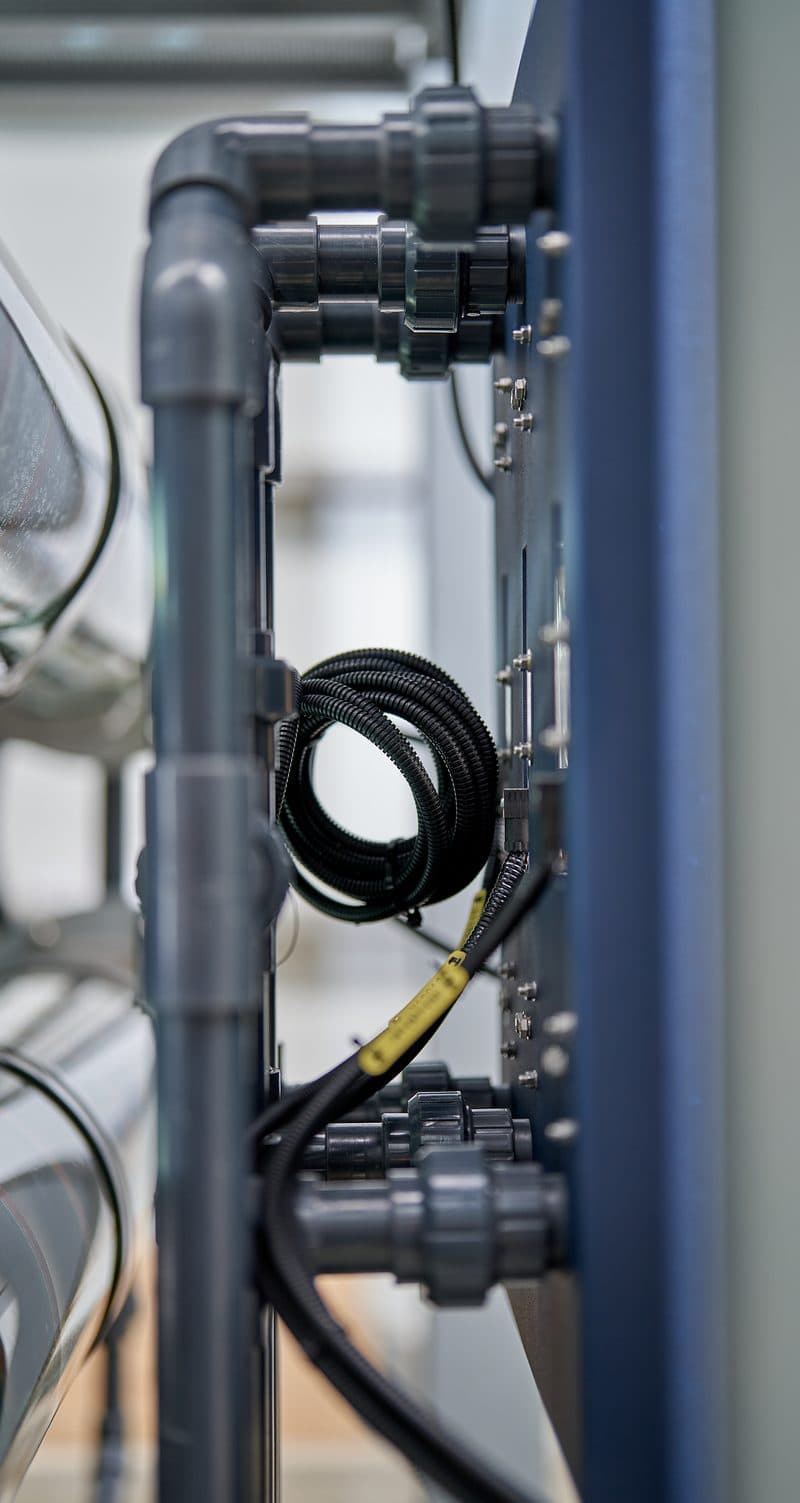

Compact yet Open Design for 360° Accessibility
PX Series combines a compact design with 360° accessibility, allowing easy reach to every component. This innovative layout optimizes space while providing seamless access for maintenance and operation. It strikes the perfect balance between space efficiency and operational convenience.

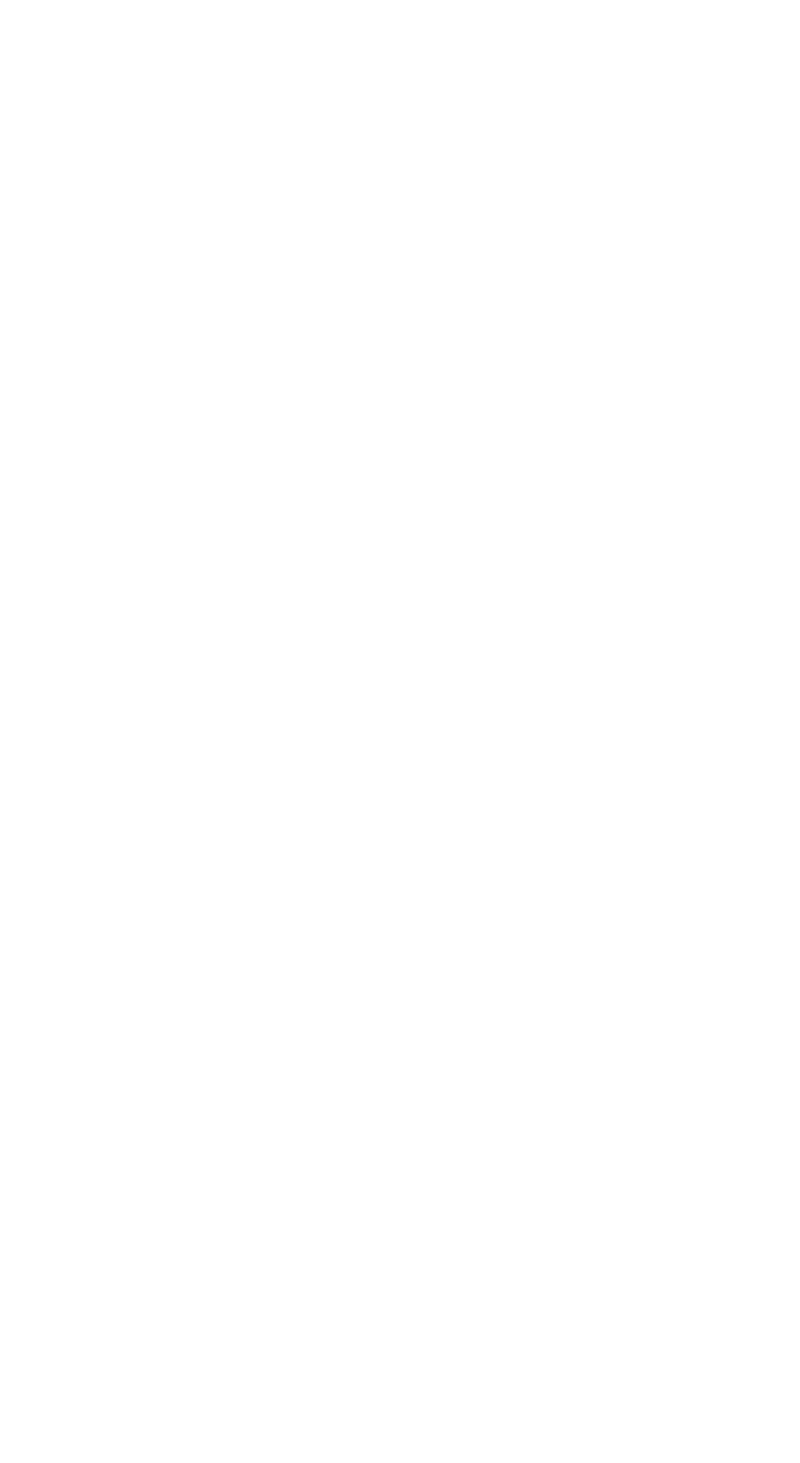

Heavy Industrial Skid
ST37 or SS304 skid stands out for its robustness and exceptional performance. This bold skid is optimized to meet the highest standards of both ease of use and reliability. It makes transportation and installation processes incredibly efficient while ensuring maximum durability.
Never Mounted on Wall or Floor
PX equipment are not fixed directly on a wall or floor. Rather, all equipments are designed on single skid with their all instruments. Thus, all equipment are prevented from floods and any kind of corrosion.
Plug & Play
But Still Industrial
PX Series features standard skid design that is easily projected according to capacity requirements, while still adhering to industrial standards.
This results in significantly faster project design and delivery times compared to LX Series. Additionally, because all equipment is housed on a single skid, pre-assembly is completed before delivery. With commissioning tests conducted at Kemisan's factories, potential issues are identified and resolved in advance, ensuring a smoother and more efficient commissioning process at the customer's site.
All of these features make the PX Series truly "Plug & Play", ensuring a hassle-free installation and faster operational readiness.
Pre-designed, Shorter Delivery
Since PX Series is a pre-designed model within a specific capacity range, its manufacturing time is much shorter, resulting in significantly faster delivery compared to LX Series, which is custom-designed model.
Pre-installed, Effortless Installation
Since the installation of PX Series is completed at Kemisan factories, it is shipped to the customer ready for use and does not require significant technical manpower, ensuring an effortless installation process.
Pre-commissioned, Smooth Start-up
Due to its compact design and the fact that all connections are made beforehand, the initial tests are conducted at Kemisan factories. As a result, the system undergoes commissioning tests before reaching the customer's site. This allows any potential issues to be identified during testing, ensuring a quick start-up process at the customer's site.
Discover PX Series Configurations
PX Series offers three configurations in a train-logic setup. Discover UNO, DUO & UNO+ through sample plant capacity.

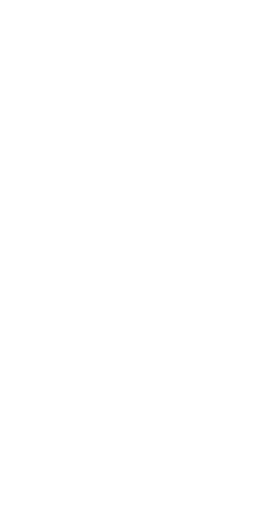

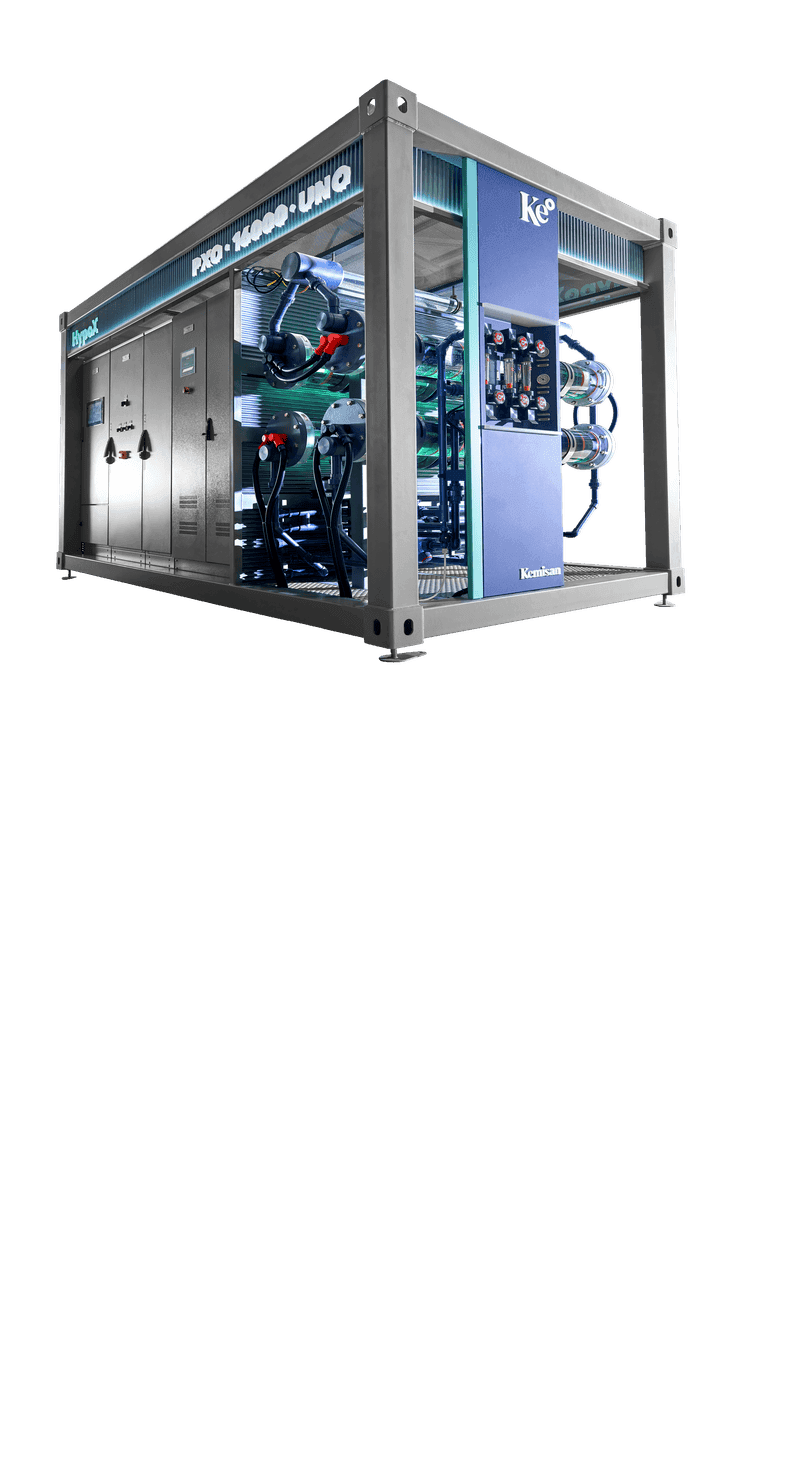

PX 16000
UNO
1+0 (1x100%)
Configuration
UNO configuration consists of a single train-process line. If the line fails or during scheduled maintenance, the entire system halts, as there is no backup process line.

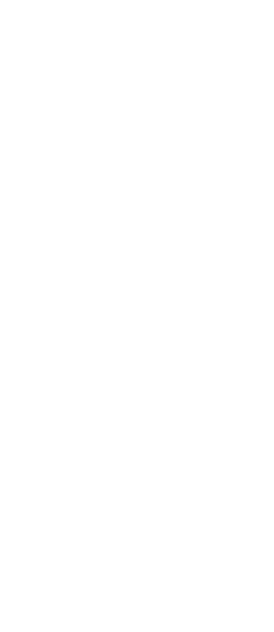

PX 16000
DUO
2+0 (2x50%)
Configuration
With two train-process lines running at half capacity each, DUO ensures continued production even if one line fails. The second line can continue operation at 50% capacity, minimizing downtime.
PX 16000
UNO+
1+1 (2x100%)
Configuration
UNO+ configuration combines one duty train-process line and one spare line. If the primary line experiences a failure, the spare line immediately takes over, maintaining 100% production capacity without interruption.
PX 16000
UNO
Single Side
“T” Design

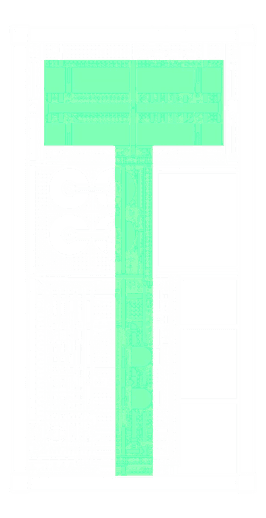

The single-sided electrolyzer layout is designed to fit a 1+0 configuration. It consists of a single train line that produces total capacity.

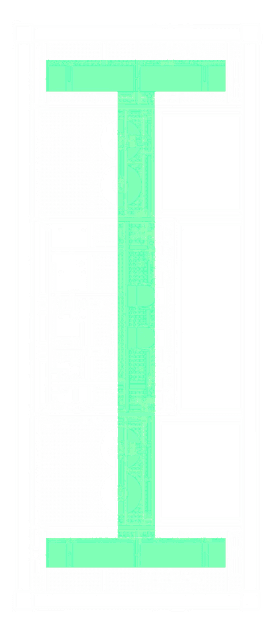

PX 16000
DUO
Double Side
“T” Design
The dual-sided electrolyzer layout is designed to fit 2+0 configurations. The 2+0 setup consists of two separate train lines, each with half the total capacity.

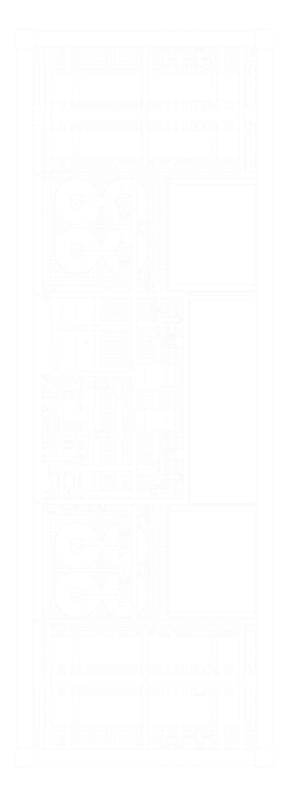

PX 16000
UNO+
Double Side
“I” Design

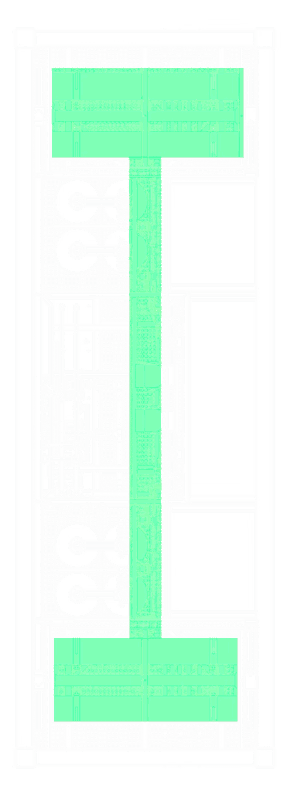

The dual-sided electrolyzer layout is designed to fit 1+1 configurations. The 1+1 configuration consists of one primary and one backup train line, each operating at total capacity.
PX 16000
UNO
1x100%
Single 16000 g/h
Electrolyzer Unit

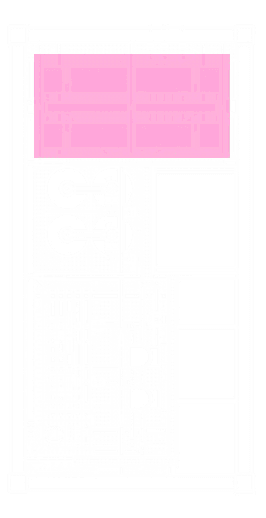

1Duty+0Spare electrolyzer unit, operating at 100% capacity, functions on a single train line to meet the total capacity requirements.
PX 16000
DUO
2x50%
Double 8000 g/h
Electrolyzer Unit

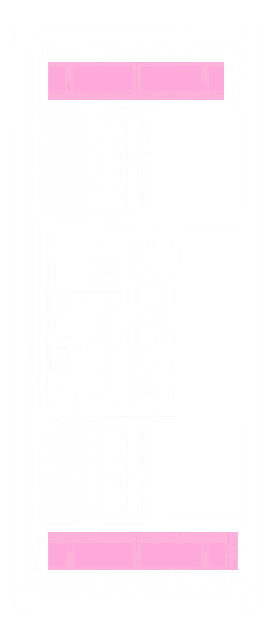

2Duty+0Spare electrolyzer unit, operating at 50% capacity on each line, functions across two train lines. These lines can operate either simultaneously or independently.

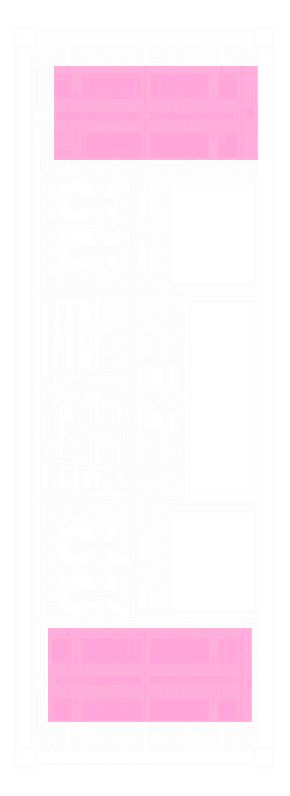

PX 16000
UNO+
2x100%
Double 16000 g/h
Electrolyzer Unit
1Duty+1Spare electrolyzer unit, providing the total capacity with 2x100%, operates on either the primary or the backup train line. Since they cannot operate simultaneously, the production capacity does not exceed total capacity which is 16.000 g/h in sample above.
PX 16000
UNO
1x100%
Rectifier Unit

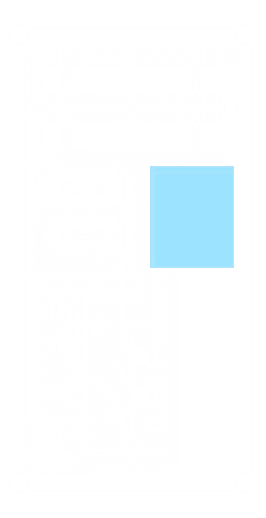

1x100% Rectifier unit consists of a single unit that meets the power requirements of the electrolyzer unit operating at 100% capacity.
PX 16000
DUO
2x50%
Rectifier Unit

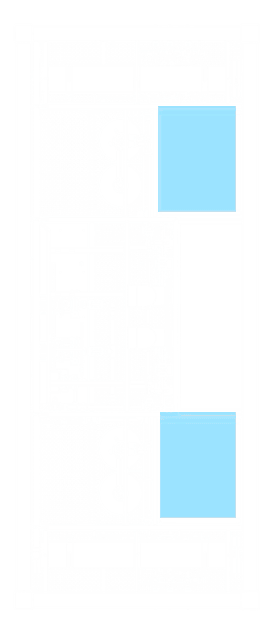

In DUO design, there are two rectifiers, each providing the required power for the 2x50% operating electrolyzer units.
PX 16000
UNO+
2x100%
Rectifier Unit

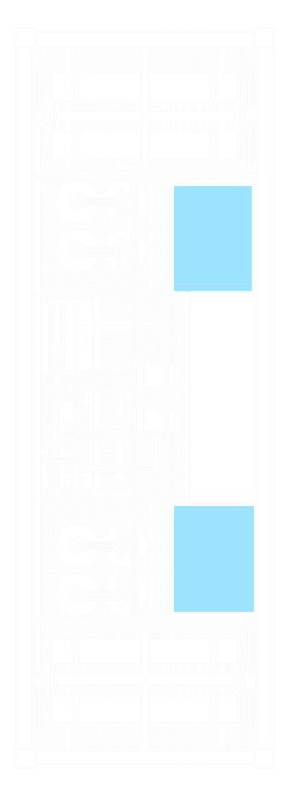

In 2x100% redundant system, there are two rectifiers—one primary and one backup—both operating at 100% capacity.
PX 16000
UNO
1x100%
Brine Dosing

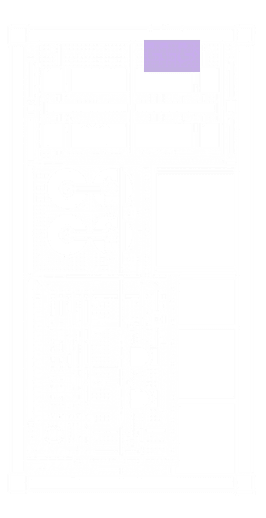

Brine dosing unit for each electrolyzer is provided as a single unit in the UNO design, capable of supporting the full capacity.

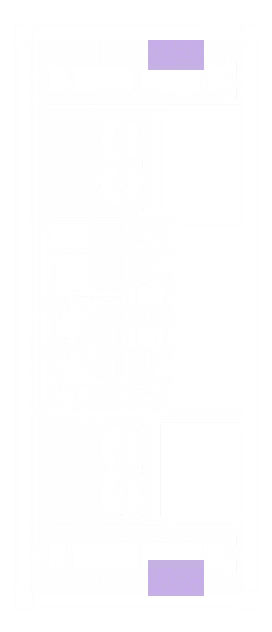

PX 16000
DUO
2x50%
Brine Dosing
In DUO design, there are 2 total but each of them serves for one electrolyzer, providing 2x50% capacity support.
PX 16000
UNO+
2x100%
Brine Dosing

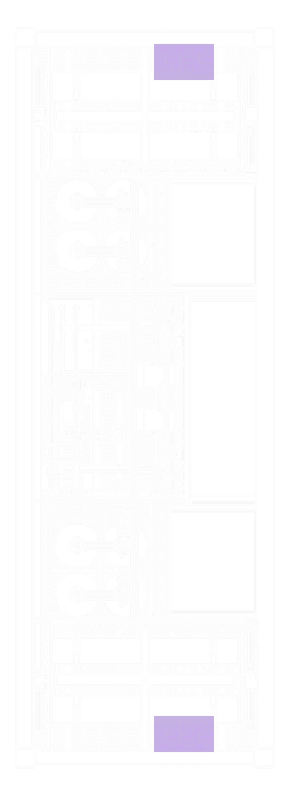

In UNO+ design, there are 2 total but each of them serves for one electrolyzer, providing 2x100% capacity support.
PX 16000
UNO
PX 16000
DUO
PX 16000
UNO+

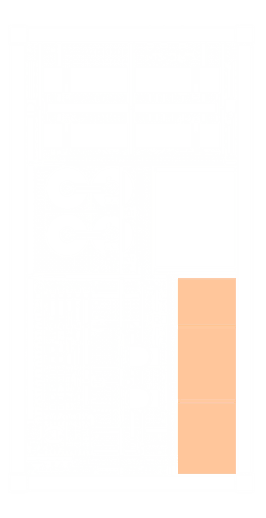

1x100%

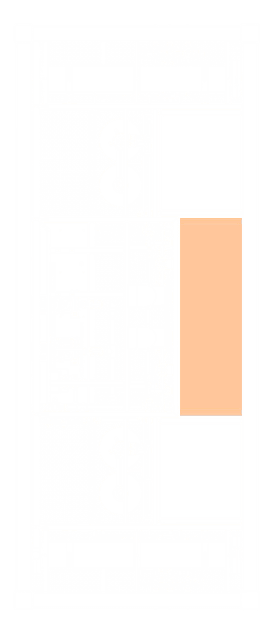

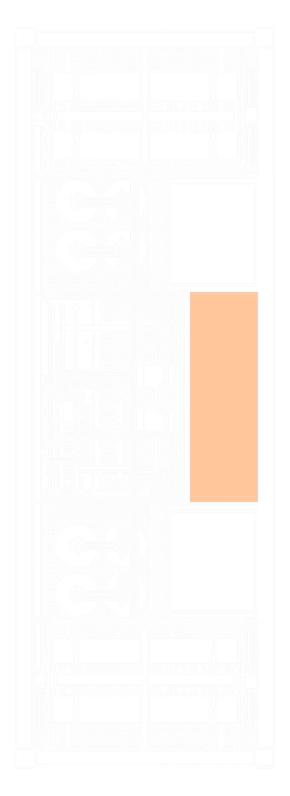

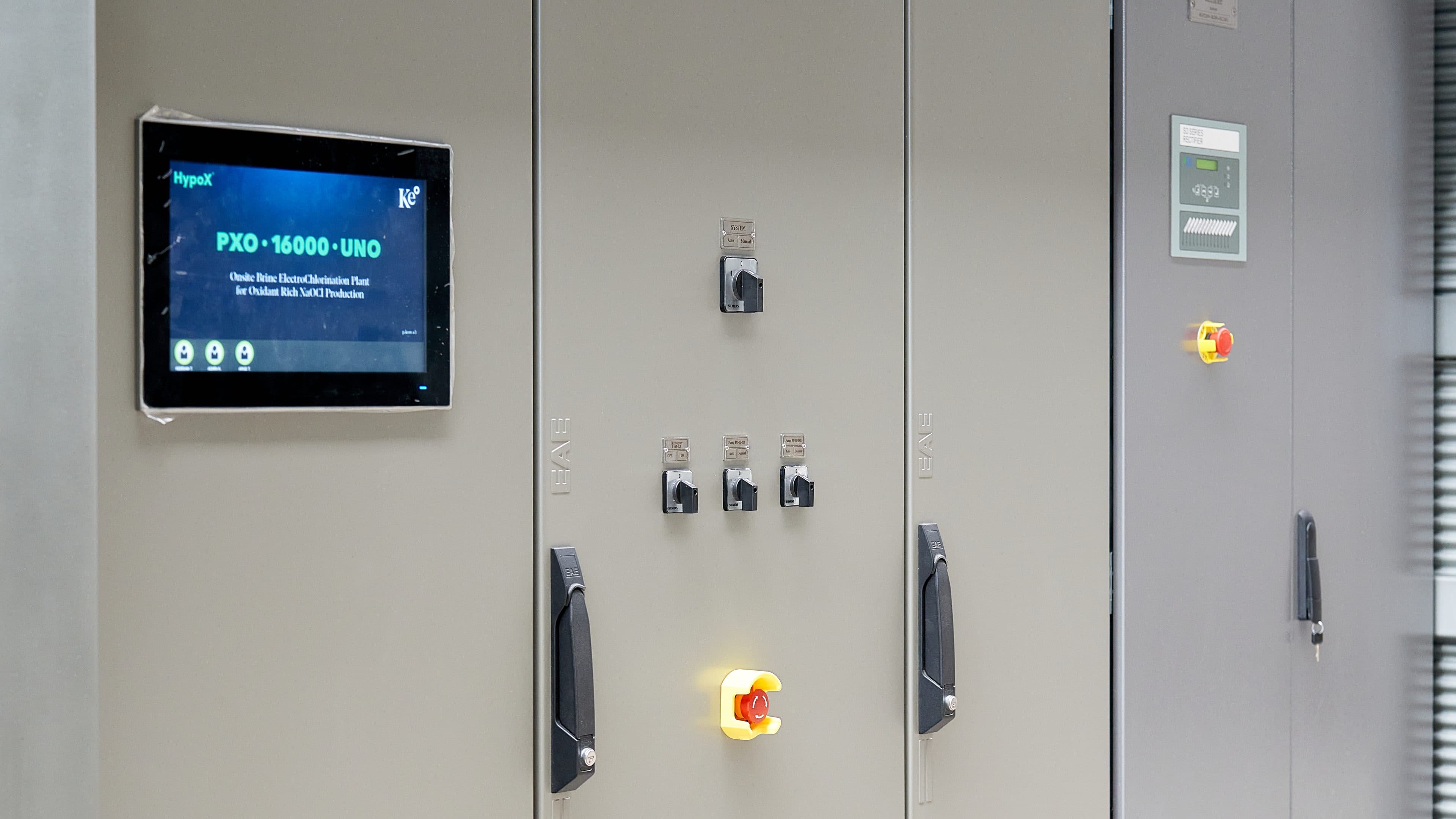

MCC & PLC
In all three configurations—UNO, DUO, and UNO+—there is a single MCC panel and one PLC panel that support the entire system.

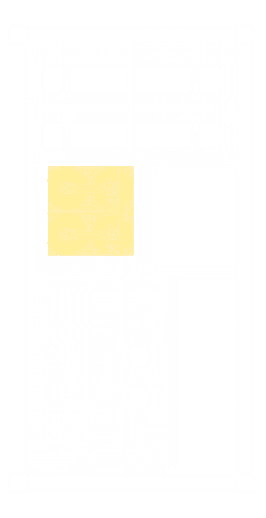

PX 16000
UNO
1x100%
Water Softener
In UNO design, there is a single tandem softener unit (1+0) that supports 100% of the capacity. However, Water Softener can be projected differently according to hardness value of customer raw water.
PX 16000
DUO
2x50%
Water Softener

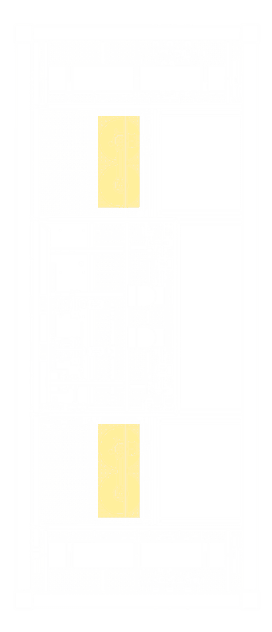

In DUO design, there are two tandem softener units (2+0) that support 50% of the capacity each. However, Water Softener can be projected differently according to hardness value of customer raw water.
PX 16000
UNO+
2x100%
Water Softener

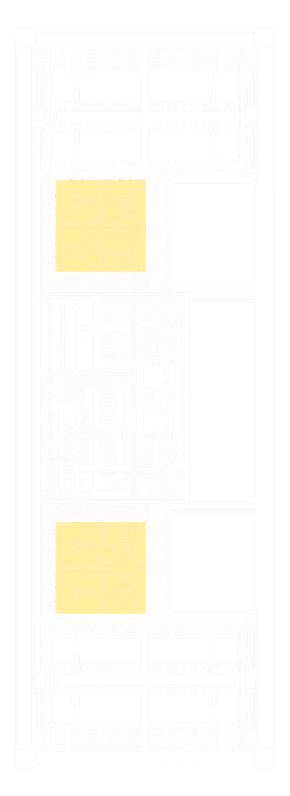

In UNO+ design, there are two tandem softener units (1+1), consisting of one primary and one backup, each capable of supporting the full capacity. However, Water Softener can be projected differently according to hardness value of customer raw water.
PX 16000
UNO
PX 16000
DUO
PX 16000
UNO+
2x100%

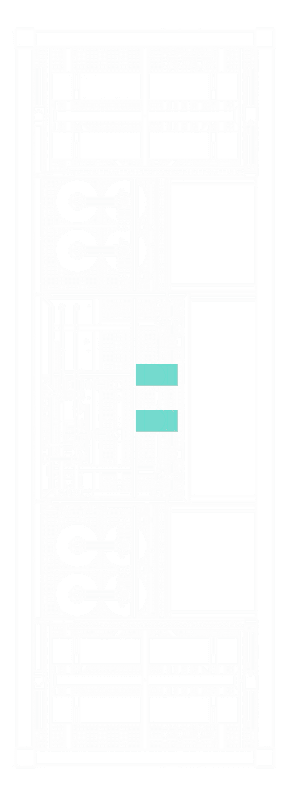

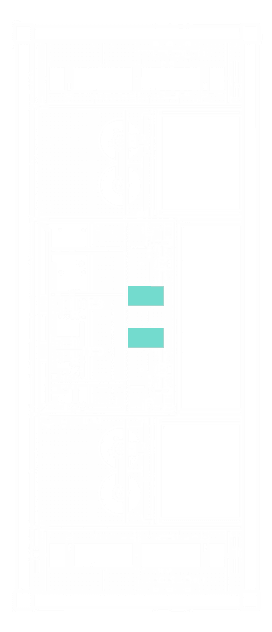

H2 Ventilation Unit

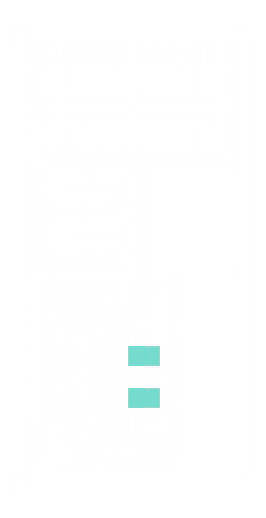

In UNO, DUO, and UNO+ designs, there are two hydrogen ventilation fans (1+1), consisting of one primary and one backup, that support the entire system.
PX 16000
UNO
PX 16000
DUO
PX 16000
UNO+
2x100%

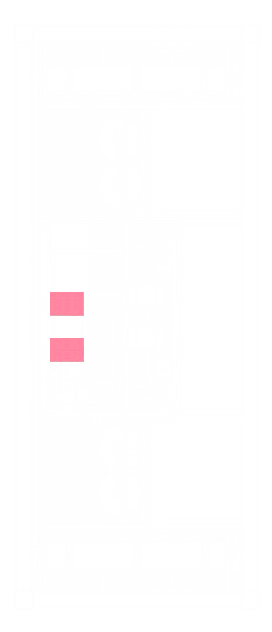

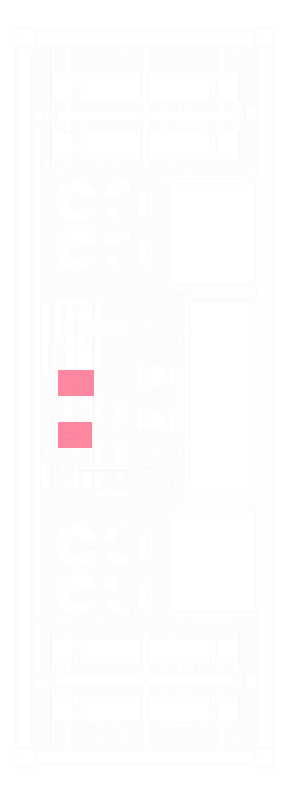

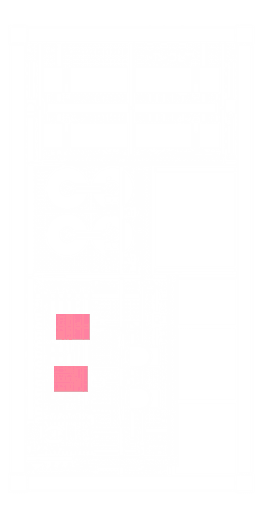

Dosing Unit
In UNO, DUO, and UNO+ designs, there are two dosing units (1+1), consisting of one primary and one backup, that support the entire system.
PX 16000
UNO
1x100%
Water Filter Unit
In UNO design, there is a single raw water filter (1+0) that supports 100% of the capacity.
PX 16000
DUO
2x50%

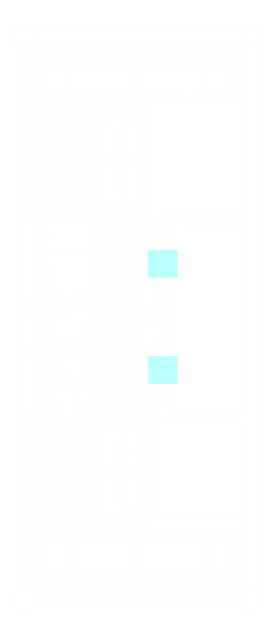

Water Filter Unit
In DUO design, there are two raw water filters (2+0), each supporting 50% of the capacity.

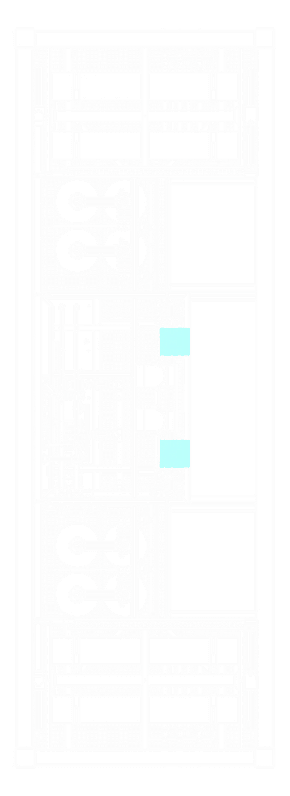

PX 16000
UNO+
2x100%
Water Filter Unit
In UNO+ design, there are two raw water filters as main and spare (1+1), each supporting 100% of the capacity.

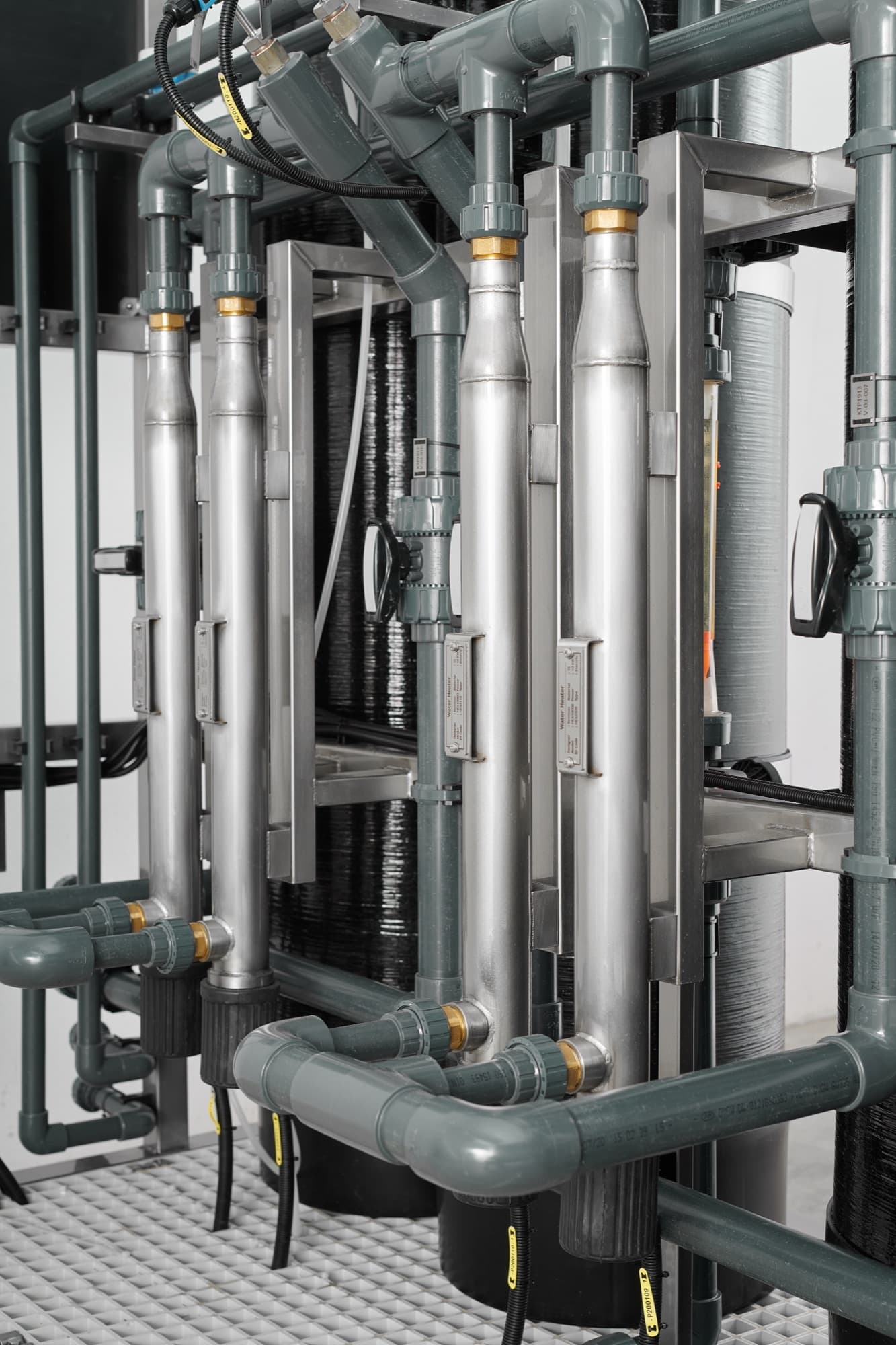

State-of-Art Electrolyzer
As the heart of electrochlorination systems, the electrolyzer unit represents a unique and highly advanced technology. Manufacturing these cells demands precision engineering, cutting-edge materials, and rigorous quality control to ensure long-term performance, efficiency, and durability.
Kemisan—one of the few true pioneers in this field!
Electrode R&D

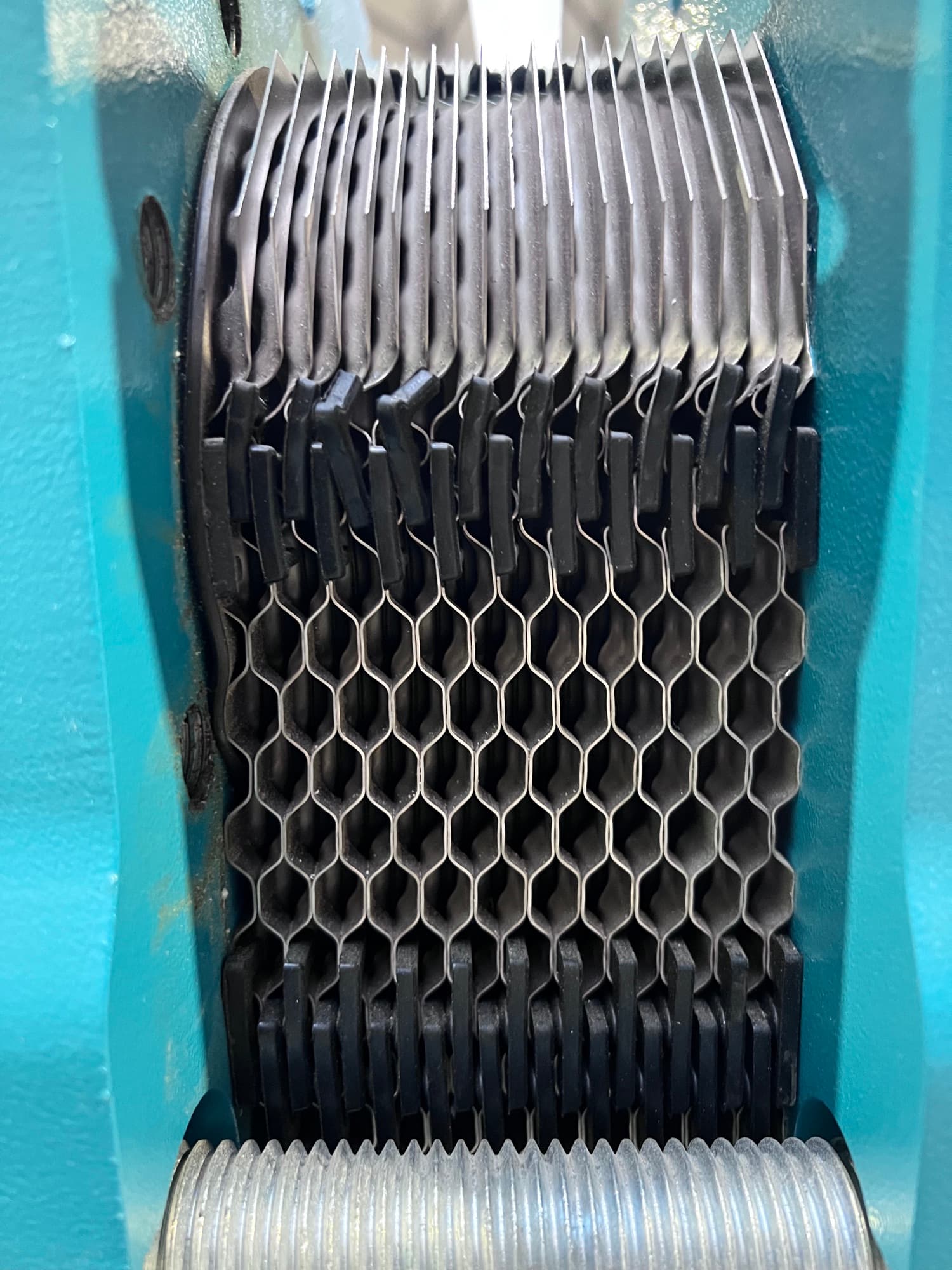

The catalytic coatings, which represent our core expertise, are developed entirely in-house by Kemisan's R&D department for use in our Electrochlorination systems. Continuous R&D efforts focus on enhancing chlorine production efficiency while reducing energy consumption by refining our coating formulations.
Electrode Coating
The catalytic coatings for the cell anodes used in our ElectroChlorination systems are developed, manufactured and applied 100% in-house by Kemisan leveraging 50 years expertise. Our high-efficiency, durable coatings enhance system efficiency and provide long-lasting operation, and guaranteed 100% by Kemisan!
Cell Manufacturing
Our DSA-type cell is fully manufactured 100% in-house by Kemisan's skilled craftsmen. Strict quality control at every stage guarantees high performance, longevity, and efficiency in electrochlorination applications.
Optimum Consumption
By integrating advanced engineering techniques and innovative technologies, our systems minimize salt & electricity consumption while maximizing performance. Our systems consumes 3,5 kg Salt and 4,5 kW electricity for 1 kg/h (100% Cl2 bases) NaOCl production.
5 Years Guarantee
Kemisan offers a 5-year guarantee on its electrolyzer units and electrodes. Additionally, with proper maintenance, the performance will remain as reliable as on the first day.
It's Not OEM Electrolyzer
We design and manufacture our own electrolysis units with its specials coating in-house. Therefore, it's guaranteed by manufacturer, by us. This allows us to handle any warranty issues directly—without involving third parties—ensuring faster response times and a hassle-free experience for our customers.
Minimum 30% Larger Size
Our electrolyzers are designed with a larger active area—over 30% bigger than standard units of similar capacity. This reduces current density across the electrodes, enhancing electrochemical efficiency and minimizing wear, which translates to a longer service life and lower maintenance needs.

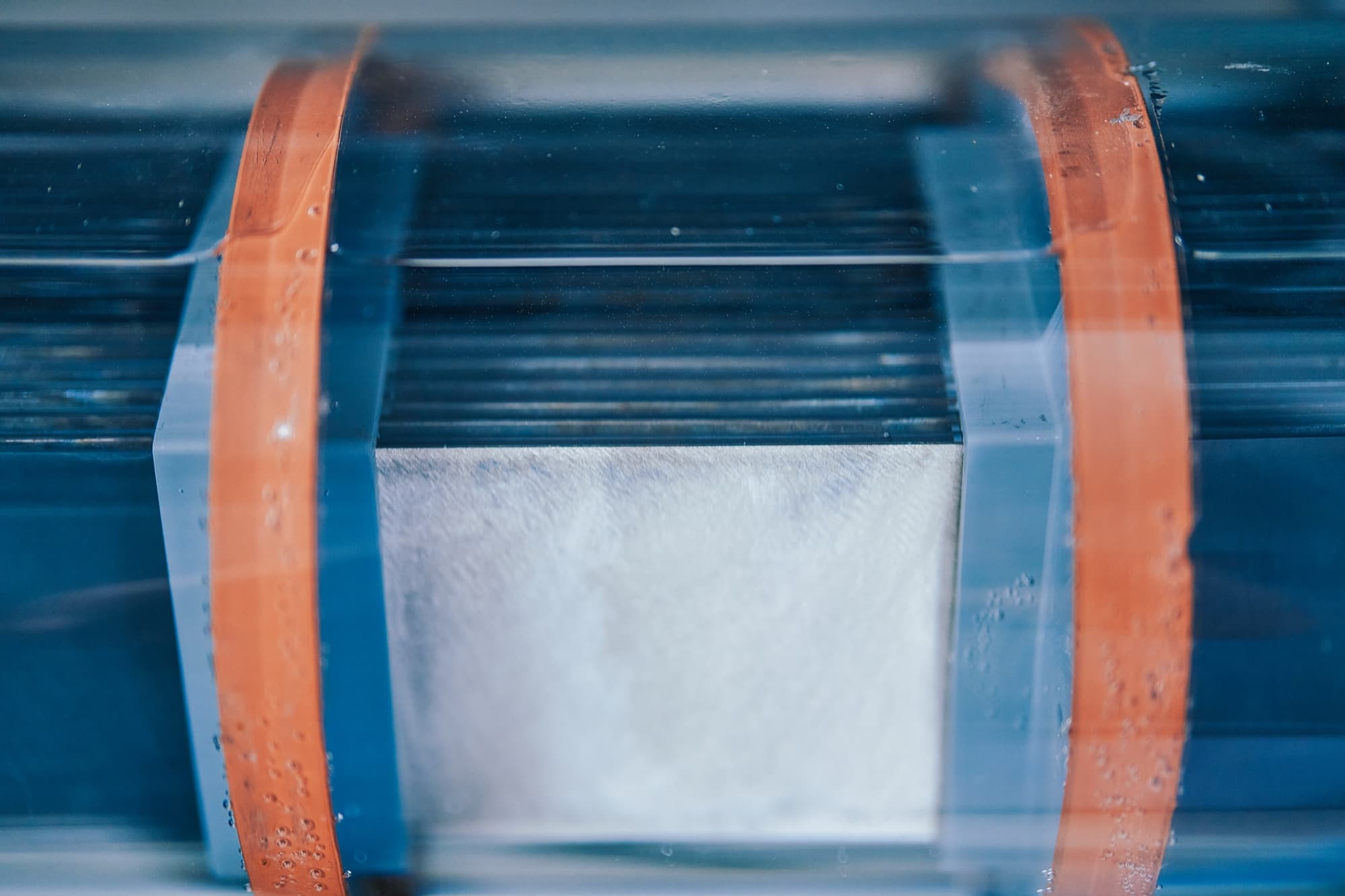

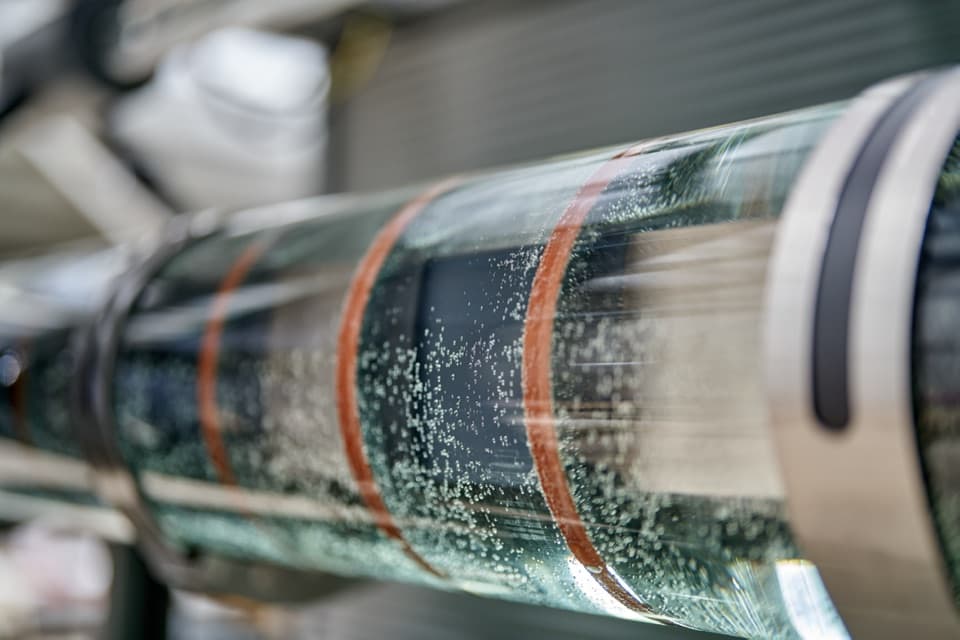

Transparent Cell Design
The transparent cell design of HypoX® electrolyzers allows operators to clearly observe calcification buildup, enabling them to decide when to clean the cell promptly and without delay.

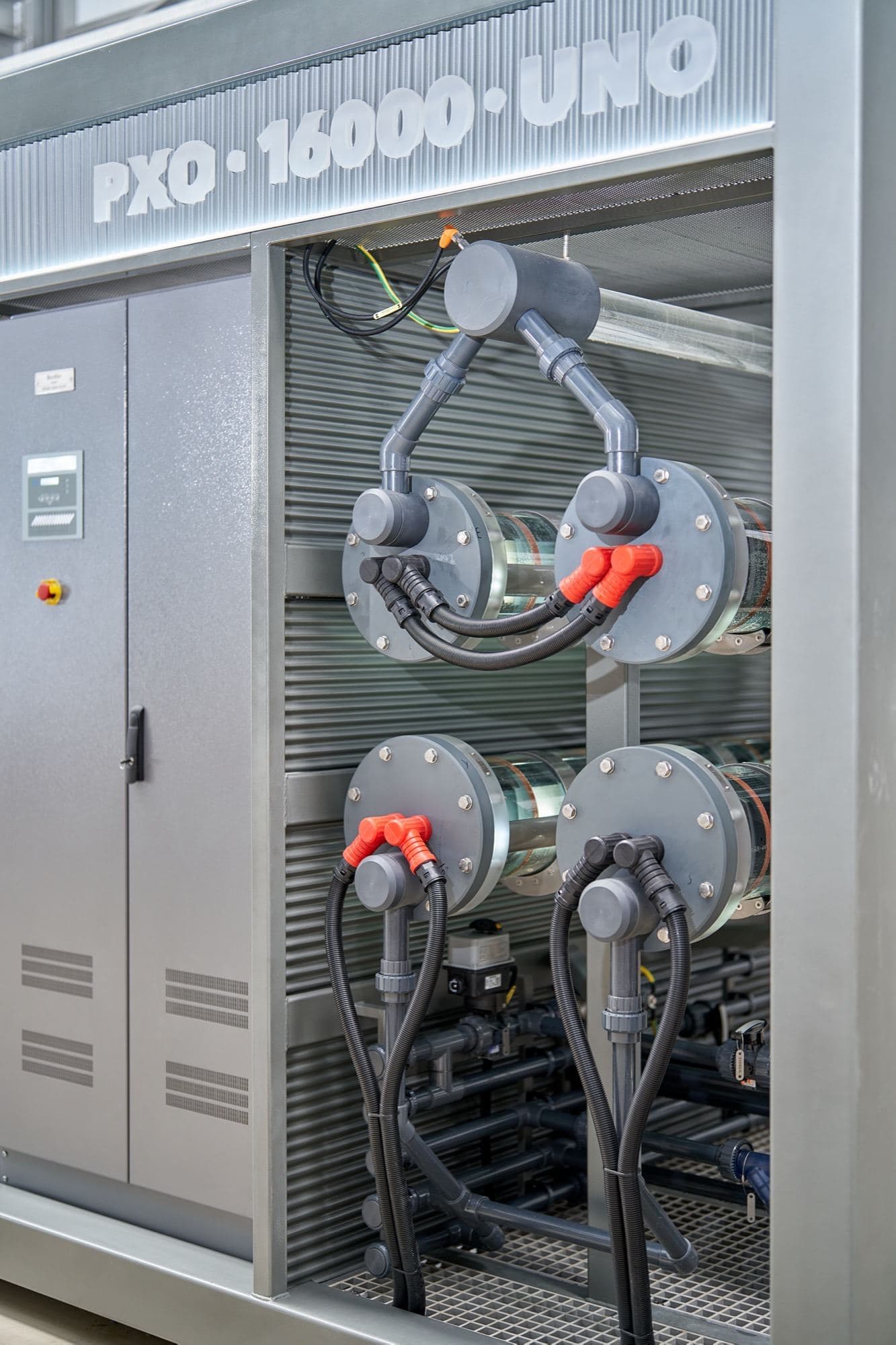

PXO
The Production of Mix Oxidant Rich NaOCl with O-type Electrolyzers
PXO is the advance Mix-Oxidant Rich NaOCl generator as it produces the most effective form of NaOCl with 0.5-0.6% concentration with updated catalyst coatings and process parameters by using salt, water & electricity.
PXH
The Production of NaOCl with H-type Electrolyzers
PXH is the standard On-site Sodium Hypochlorite Generator which is well known as OSG. This model produces 0.8% NaOCl with standard MMO electrode coating and process parameters by using salt, water & electricity.
Integrated
Cell Cleaning
Electrode scaling is inevitable—but managing it shouldn’t be hard. Over time, minerals like calcium and magnesium build up on electrodes during electrolysis, impacting efficiency. That’s why every electrochlorination system requires regular acid cleaning.
HypoX® makes this process effortless for you. With its fully automated cleaning cycle and integrated safety features, HypoX® keeps your system running at peak performance—no manual work, no worries.
Integrated or Central But Not Mobile
Unlike conventional systems that rely on external acid cleaning trolleys, HypoX® PX Series features a fully integrated acid cleaning system built directly into each electrolyzer unit. This means that the acid circulation pump, piping, fittings, and instrumentation are all pre-installed—eliminating the need for mobile units and simplifying the cleaning process.
Smart & Easier Operation

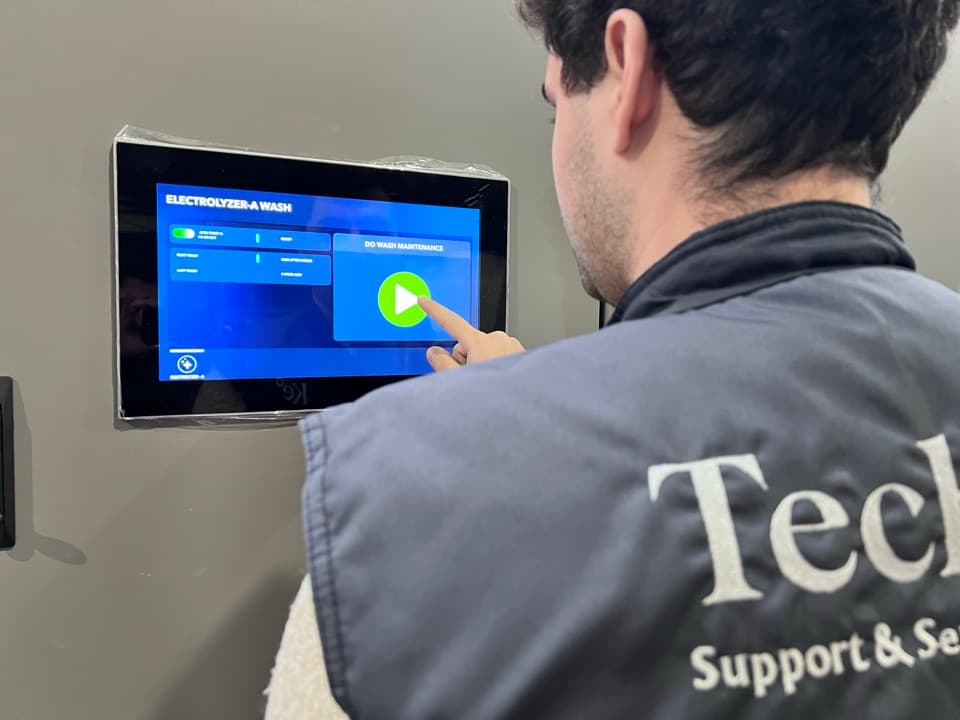

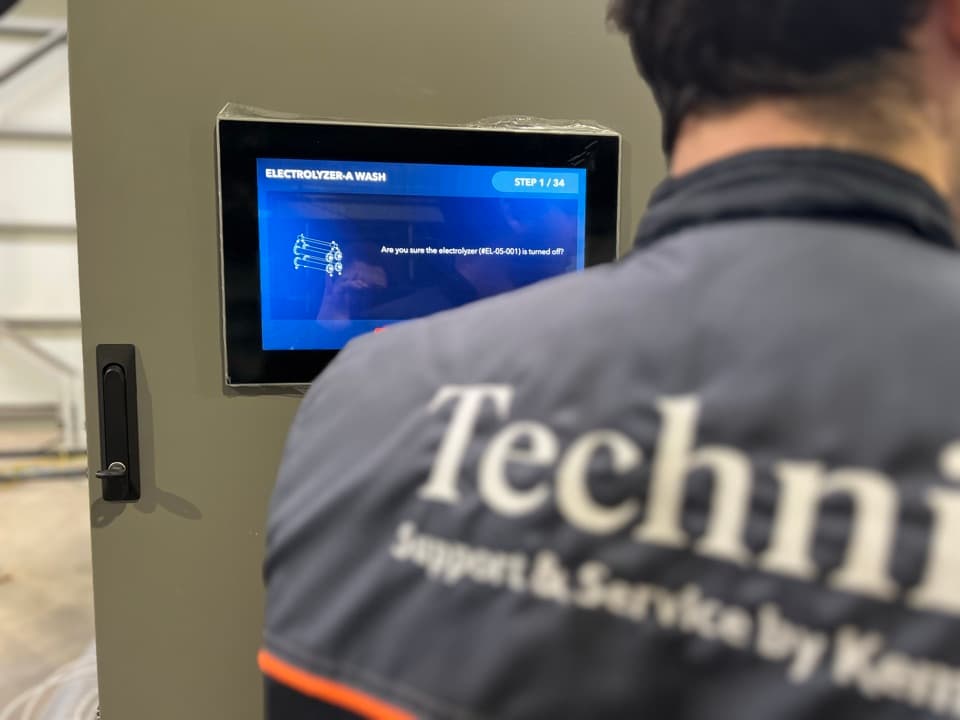

HypoX® PX Series offers fully PLC-guided cell cleaning maintenance, replacing the fully manual setup and operation of mobile cleaning trolleys. This ensures a much simpler and failure-free maintenance process—even for operators with minimal experience.
Safer Acid Preparation
Preparing a 5% acid solution in a trolley and transporting it on wheels filled with acid is not safe for operators. In contrast, the fully integrated, non-mobile acid cleaning system of the HypoX® PX Series ensures maximum safety, making it the safest solution in the industry.
Transparent Cell Design
The transparent cell design of HypoX® electrolyzers allows operators to clearly observe calcification buildup, enabling them to decide when to clean the cell promptly and without delay.
Pump-Free
Brine Dosing
is Here!

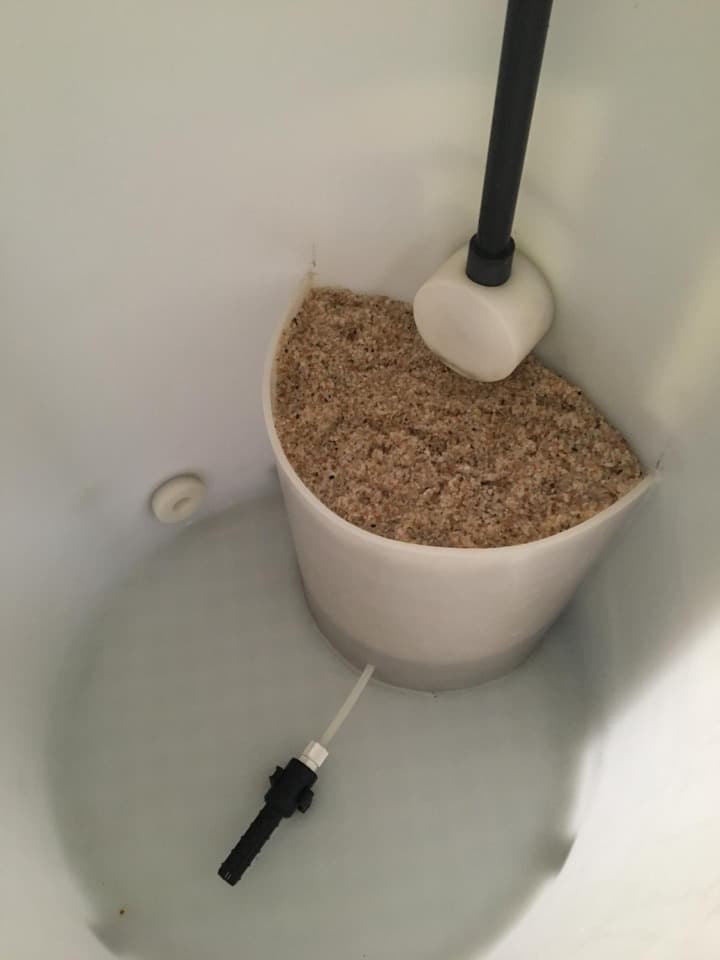

Perfection comes through simplification. Unlike most electrochlorination systems that rely on pumps, HypoX uses a lifetime-guaranteed ejector design for brine dosing. This innovative system eliminates common issues with diaphragm pumps, reducing maintenance costs and complexity. By removing pumps and their moving parts, HypoX ensures reliable, cost-effective, and effortless brine dosing.
Lower
Maintenance
Don't underestimate the periodic maintenance and short life-time of diaphragm brine dosing pumps. Jet Eductor® has fewer moving parts compared to diaphragm pumps, which reduces wear and minimizes maintenance requirements over time.
Don't Underestimate
Economical Burdens
With lower maintenance and operational costs, Jet Eductor offers a more economical solution in the long run. Also, Jet Eductor's design is less susceptible to clogging, which means fewer blockages that can lead to costly malfunctions.
Electric Free Heater
While on-site chlorine production through brine electrolysis is typically more cost-effective than purchasing from external sources, secondary factors such as water heating can significantly impact overall cost savings.
To address this challenge, Kemisan developed HypoX® PX Series, featuring an integrated heat exchanger that utilizes the temperature of the end product to heat softened water.
Get Rid of Huge Electricity Costs of Resistance-type Heaters
PX modular skid design allows easy access to all points of the skid, enabling quicker control and maintenance.

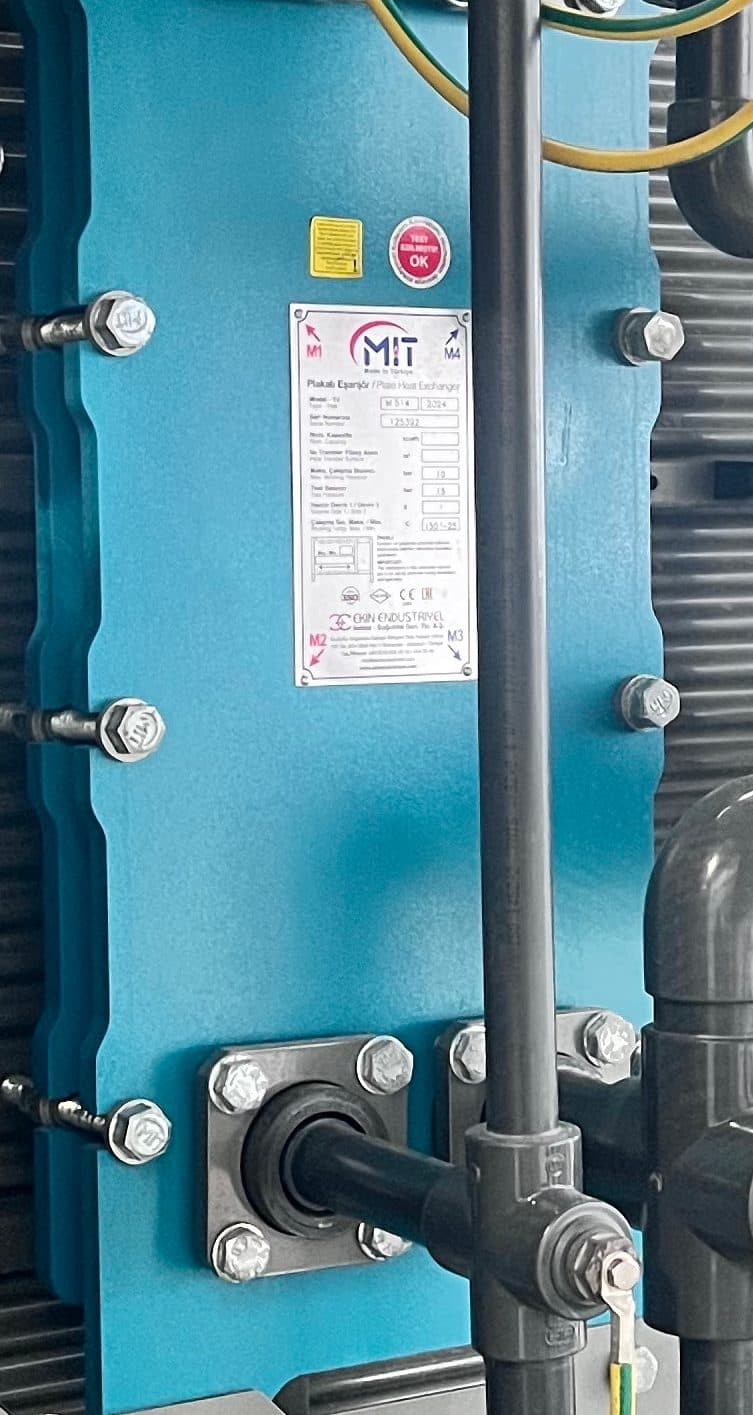

Less Failure, Longer Service Life with Exchanger Heater
PX skids are built with SS304 stainless steel, with an optional SS316 construction for enhanced corrosion resistance and extended service life.
Output Cools, Inlet Heats – Efficiency Redefined!
PX equipment is never installed directly on walls or floors. Instead, each unit is mounted on a dedicated skid that includes all required instruments. This skid-based design safeguards the equipment against flooding and minimizes the risk of corrosion.

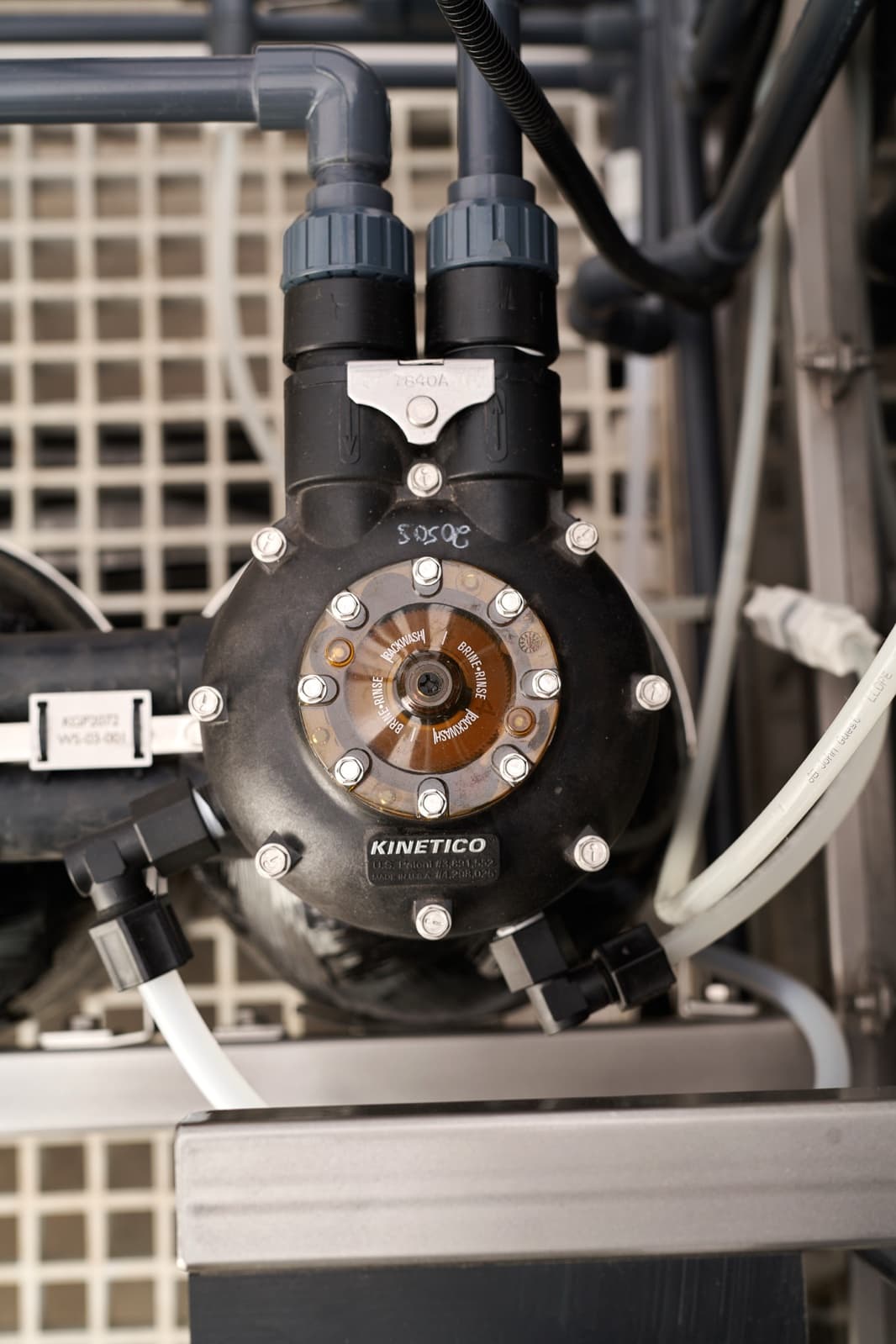

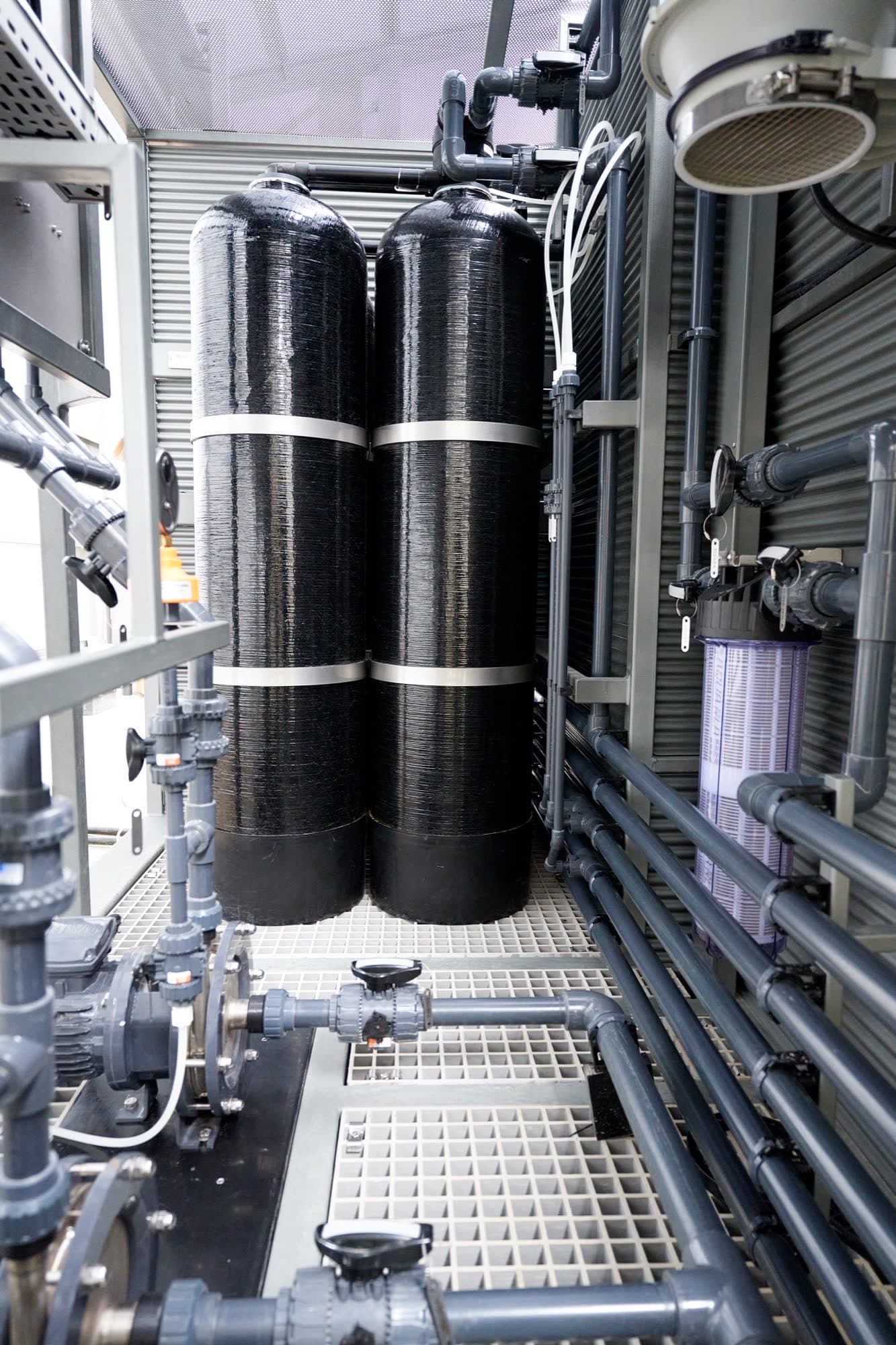

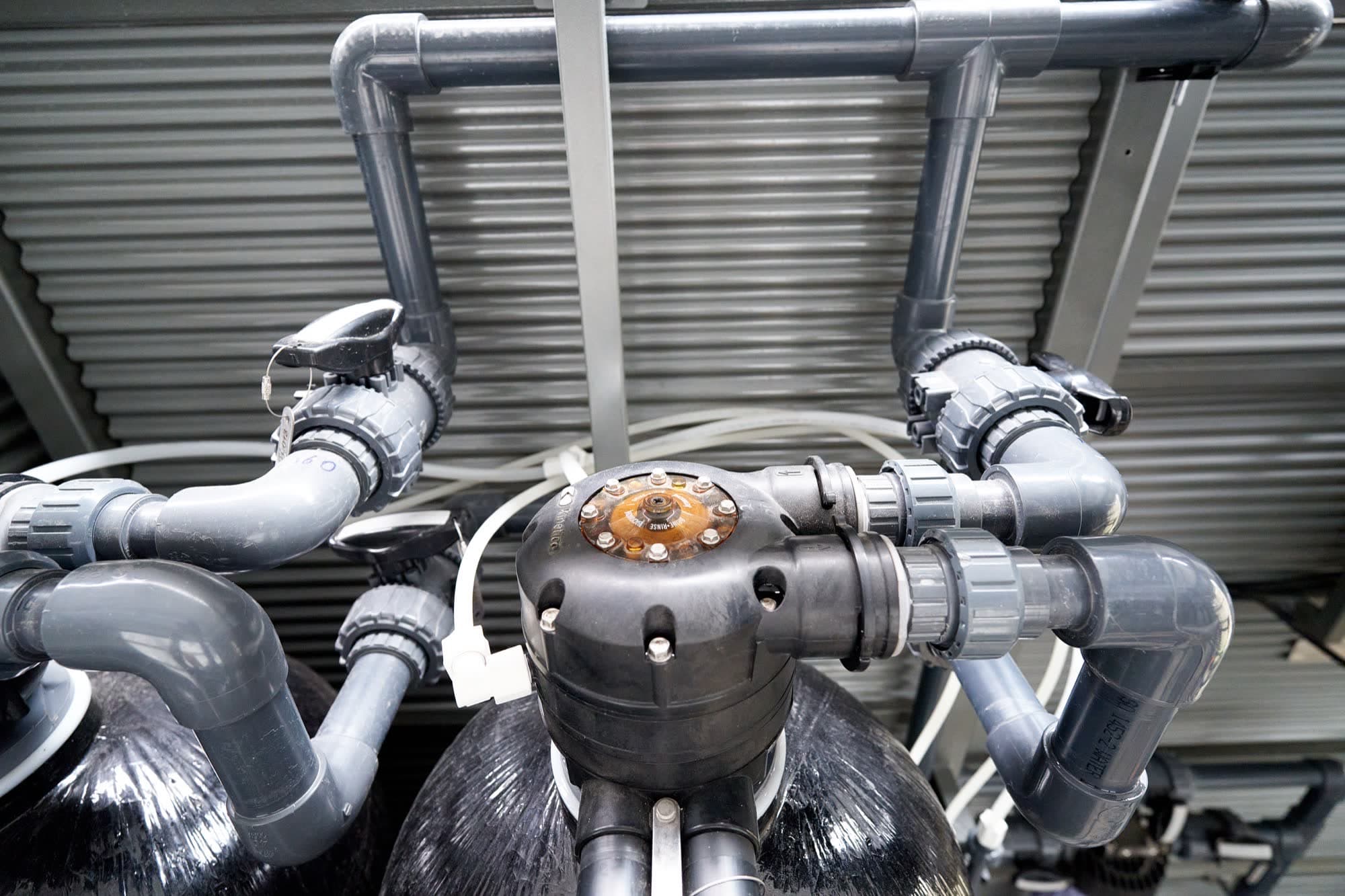

Uninterrupted Process with Non-Electrical Softener
Instead of an electrical softener controller, Kemisan provides a mechanical (non-electrical) softener controller that eliminates breakdowns caused by a single trip on an electronic controller. Equipped with a single mechanical controller head and twin resin tubes, the process keeps running while the resins regenerate.
Less Failure, Less Interruption
Non-electrical softeners experience fewer breakdowns compared to their electrical counterparts. This translates to fewer operational interruptions, ensuring your electro-chlorination plant runs smoothly and efficiently.
Less Maintenance, Less Cost
With fewer moving parts and a simpler design, non-electrical softener requires minimal maintenance. This not only lowers maintenance costs but also allows your team to focus on more critical tasks.
Longer Service Life
Non-electrical softener has longer service life than electrical one thanks to its simpler design and lack of electronic component.
Hydrogen Handling with IECEx Standards
Hydrogen (H2) is the inevitable by-product of brine electrolysis, which is immediately diluted and discharged to atmosphere in the process. Even though this is a small amount of H2, see how seriously Kemisan designs this process.
Kemisan proves the safety of this hydrogen handling (dilute & discharge) with an “Explosion Protection Document” (EPD) and an attached Zone Map, prepared according to the well-trusted IECEx certification and IEC 60079 standards. These documents tell us why, where, and which ATEX-certified equipment we need to choose and use.
Discover the most satisfactory H2 handling engineering considered in an electrochlorination system!
EPD for H2 Risk Assessment
Explosion Proof Document (EPD) is a detailed engineering report and set of guidelines for environments and processes that may have any explosive materials handled or where processes might create potentially explosive atmospheres. EPD calculates and shows any risks about H2 handling and gives various level of requirements to eliminate these risk where and if available.
IECEx International Certification
IECEx is a well-trusted and globally recognized certification system that provides an international, independent verification that products, services, and personnel comply with IEC standards, particularly those related to environments with an explosion risk. Electrochlorination systems shall be designed according to IEC 60079-14 Standards.
ATEX Equipment according to EPD
Using ATEX certificated instruments and equipments in Hydrogen environments can be necessary to make the safest Hydrogen handling. But these selections shall not be according to prediction like many suppliers do. Explosion Proof Document shall be supplied with all engineering and calculations which will show us the reason to decide the ATEX type and locations of these equipments and instruments.

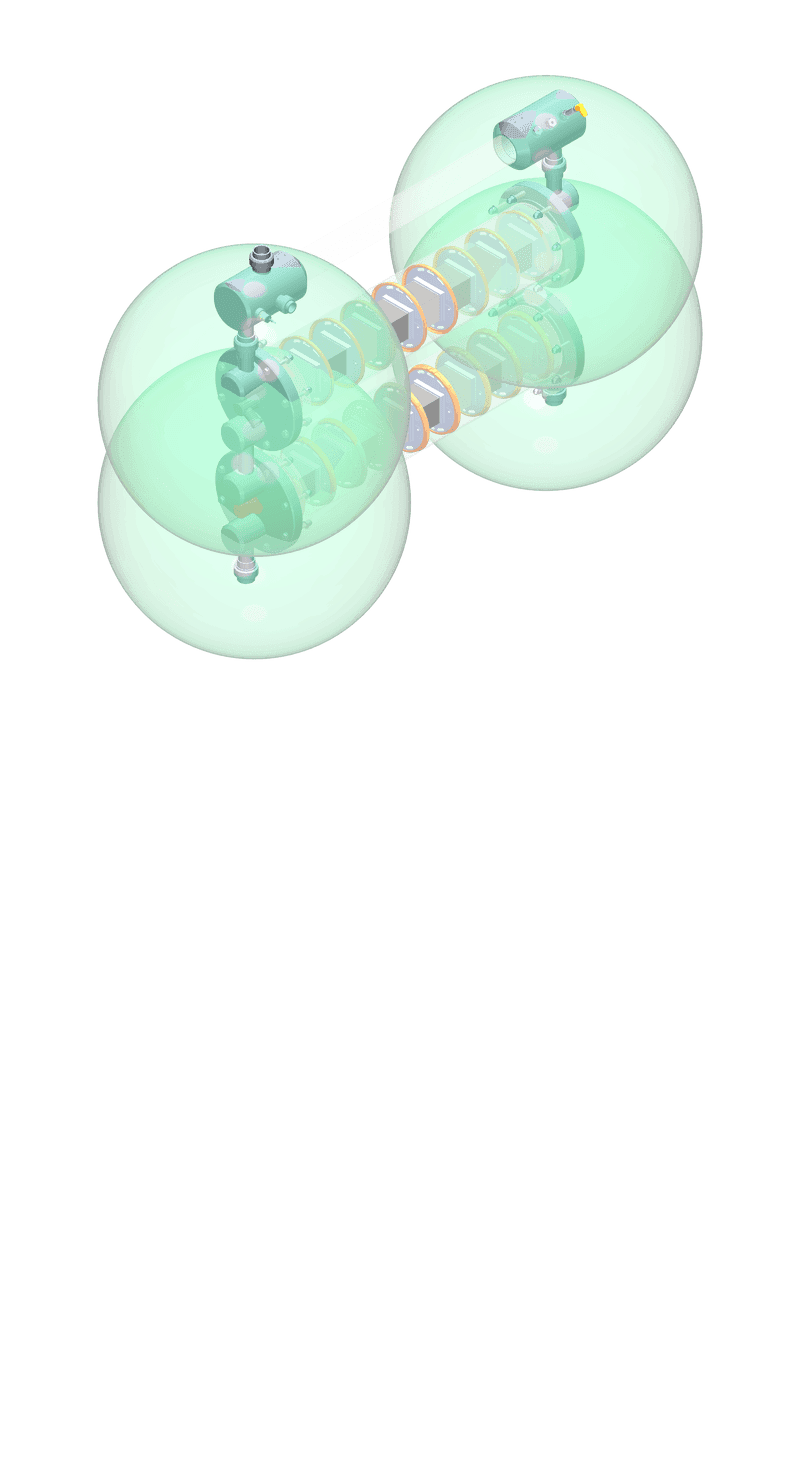

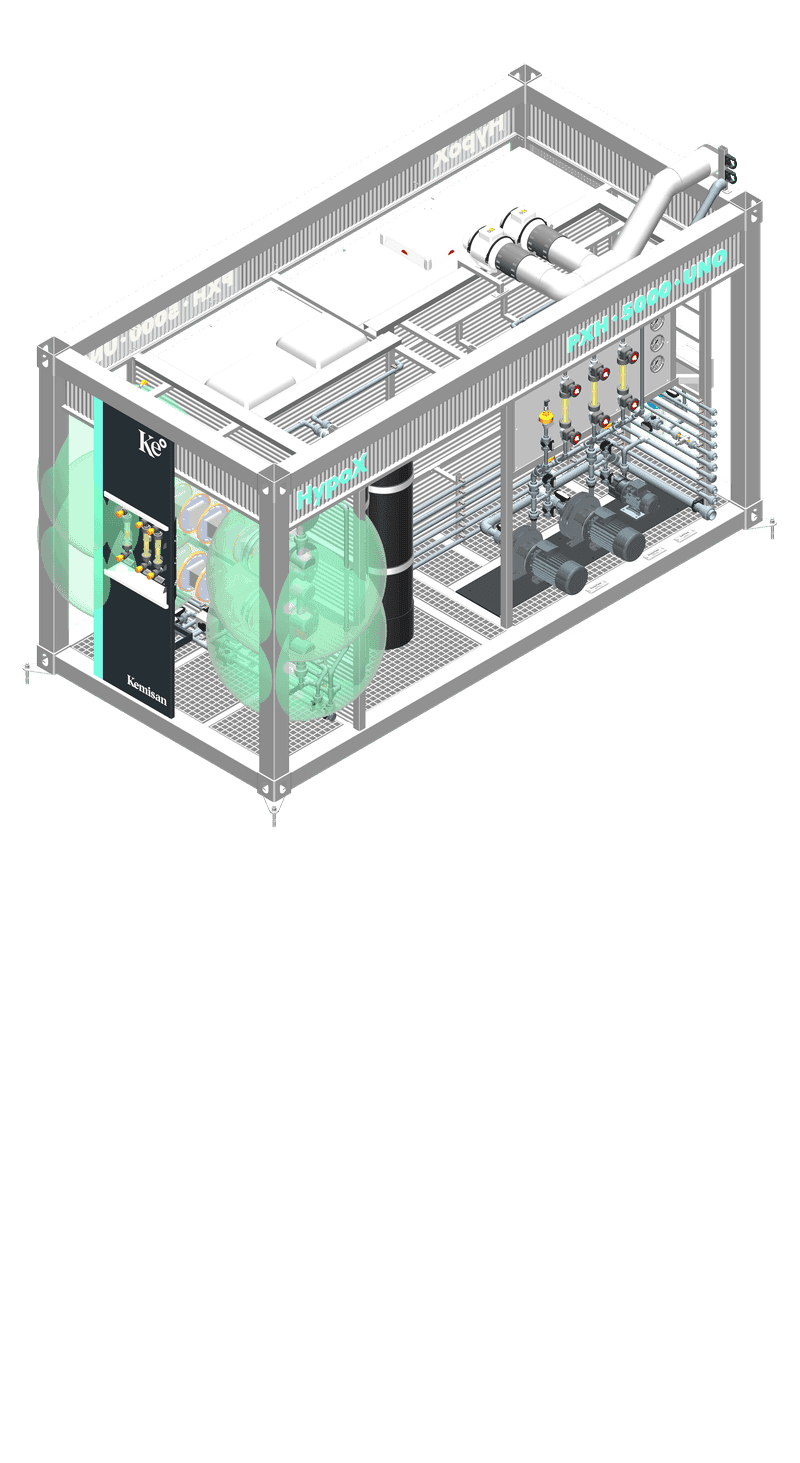

3D Zone Maps for Easy Understanding
2D and 3D Zone Maps are the attachments of Explosion Proof document (EPD) which brings an easier understanding and summary to all engineering and calculations.
Trust Educated Hands for H2 Safety
All the design & calculations of Explosion Proof Document shall be made by IECEX Unit 009 & IECEX Unit 002 certificated people.
All the installation & commissioning of ATEX instruments & equipments shall be made by IECEX Unit 001 & IECEX Unit 003 certificated people.
All the inspection and Quality Assurance of process and ATEX instruments & equipments shall be made by IECEX Unit 007 & IECEX Unit 008 certificated people.
Separator Panels for ATEX Compliance
PX Series is designed with separator panels between units to ensure compliance with ATEX standards.

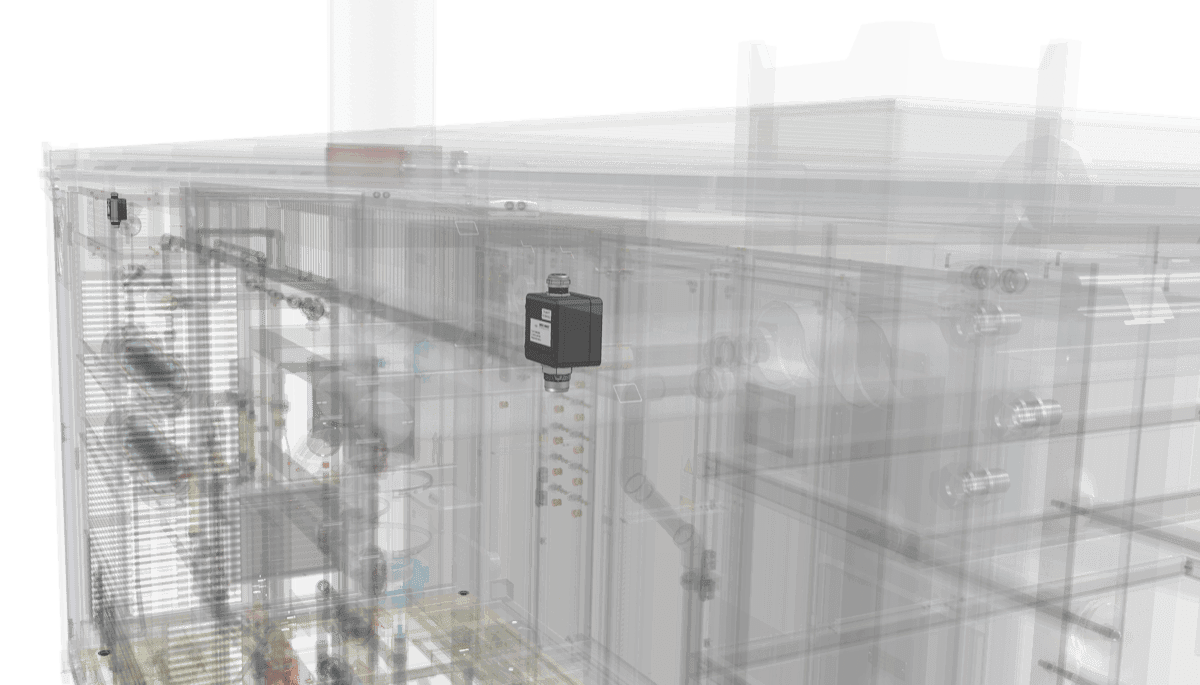

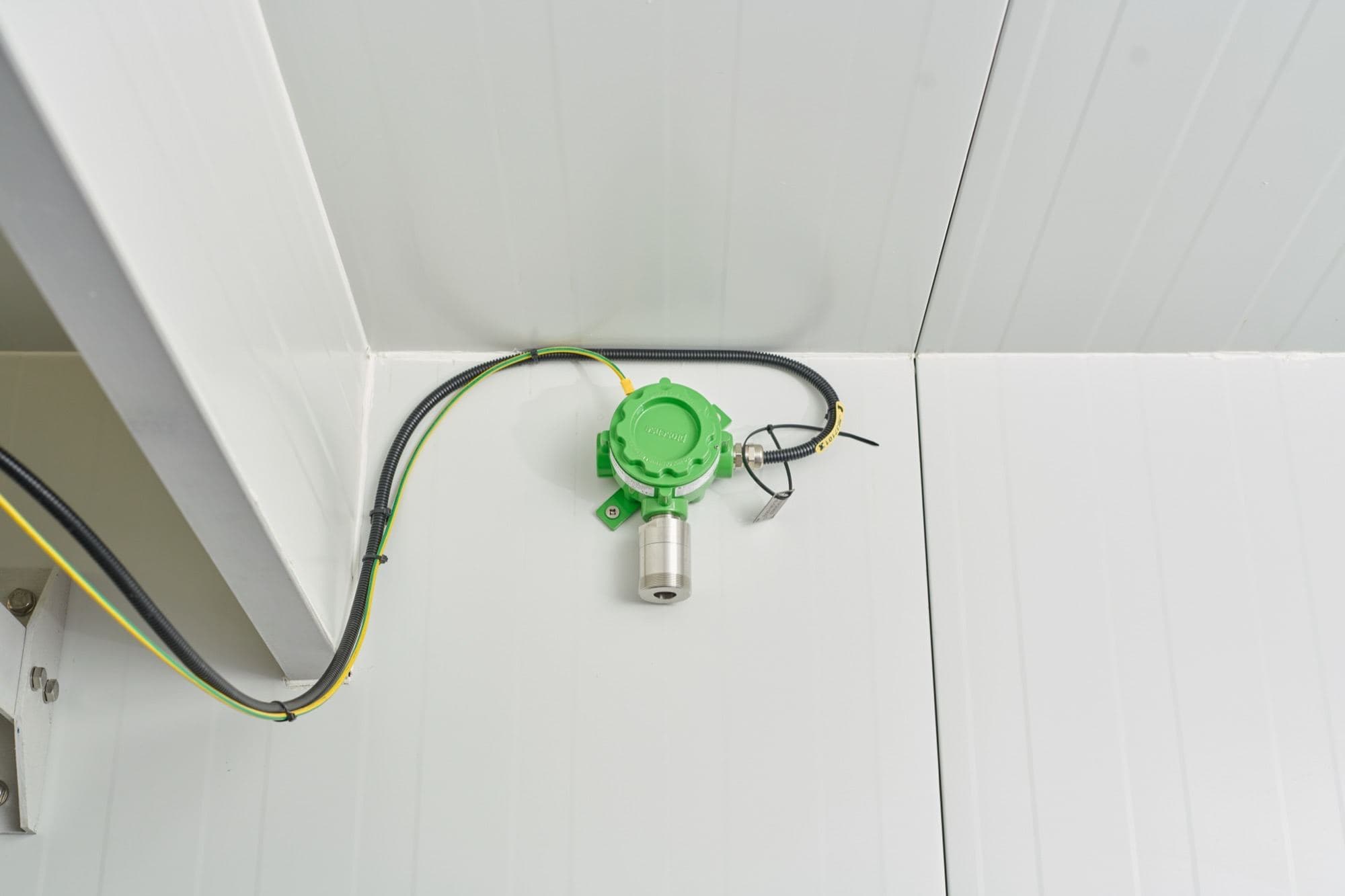

Integrated Hydrogen Safety Sensor
PX Series is equipped with a hydrogen safety sensor in the operation area integrated with the electrochlorination system.

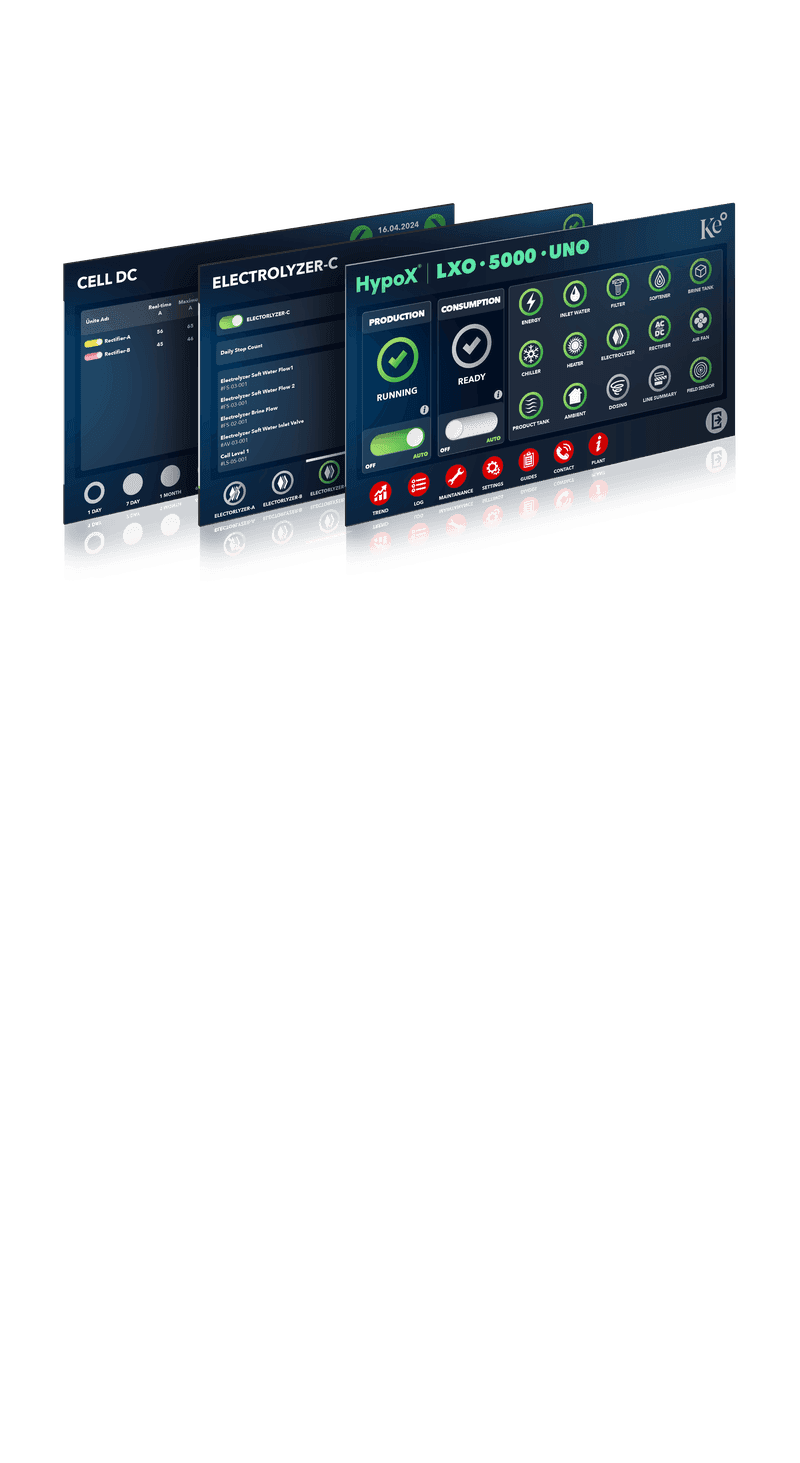

PKEM. GEN.4

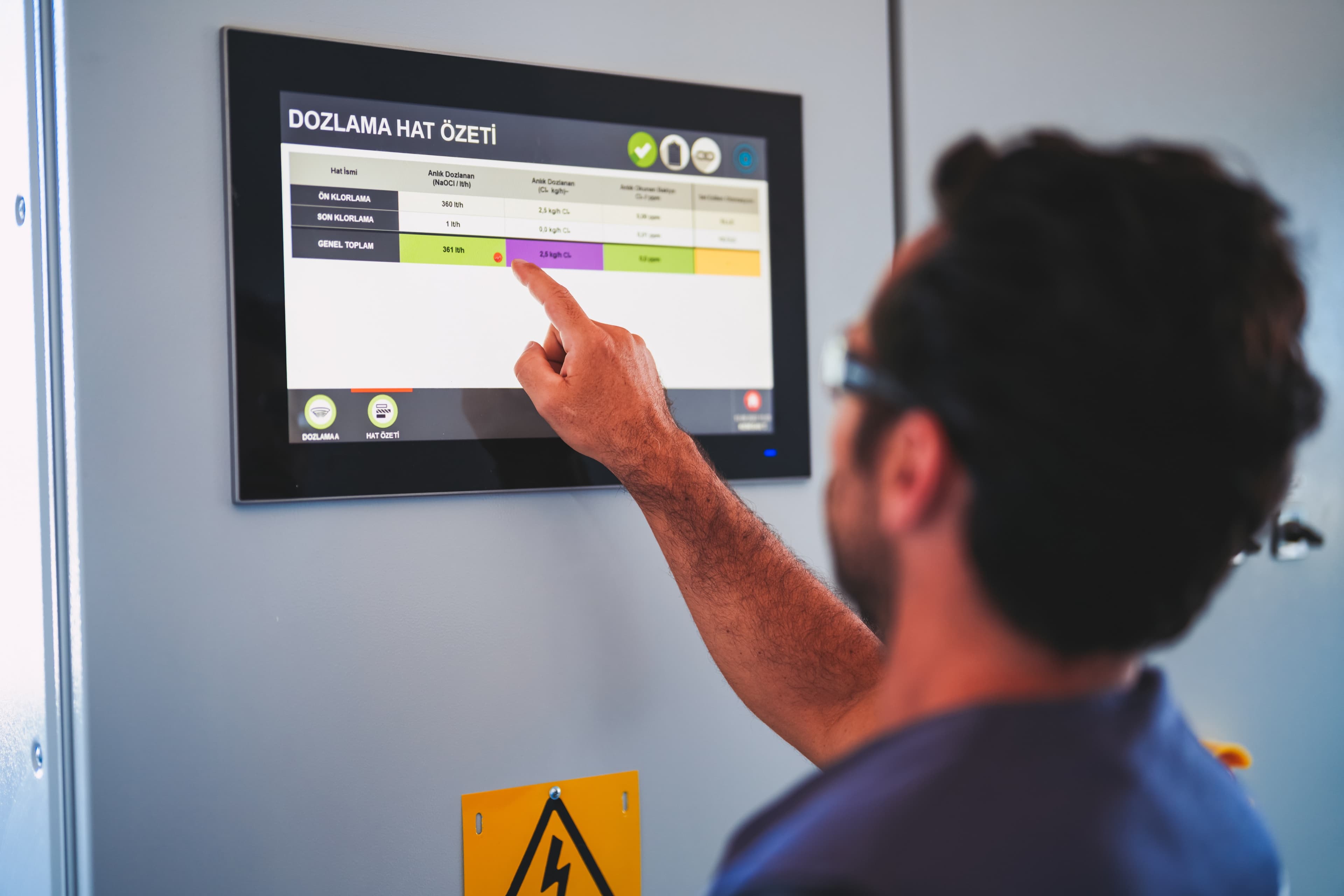

Thanks to our advanced PKEM.GEN.4 software, chlorination control is now more intelligent than ever. With its revolutionary user-friendly interface, smart alerts for operator guidance, self-running automations remote access and much more, managing your chlorination process has never been this smart, simple and even fun.
Core & Pro
Chlorination control can be tailored to your needs — choose between Core & Pro PLC automation packages. Whereas CORE Covers All Your Essential Needs, PRO Unlocks Advanced Control & Deep Insights.

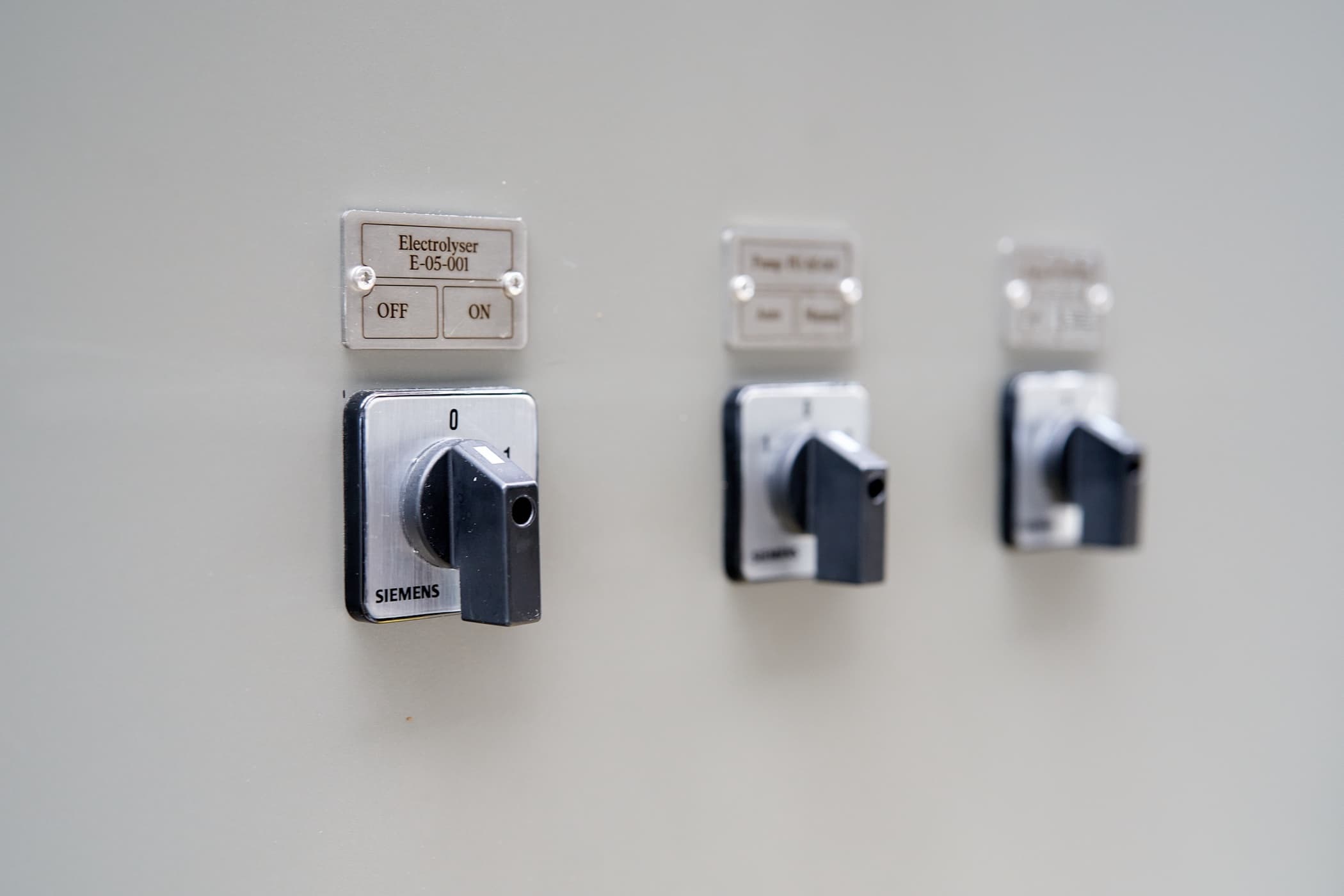

Manual Mode Button
Immediately switching to manual mode with a single button in case of PLC Failure offers uninterruptible process, ensuring ultimate flexibility with zero complexity to continue production and dosing process.

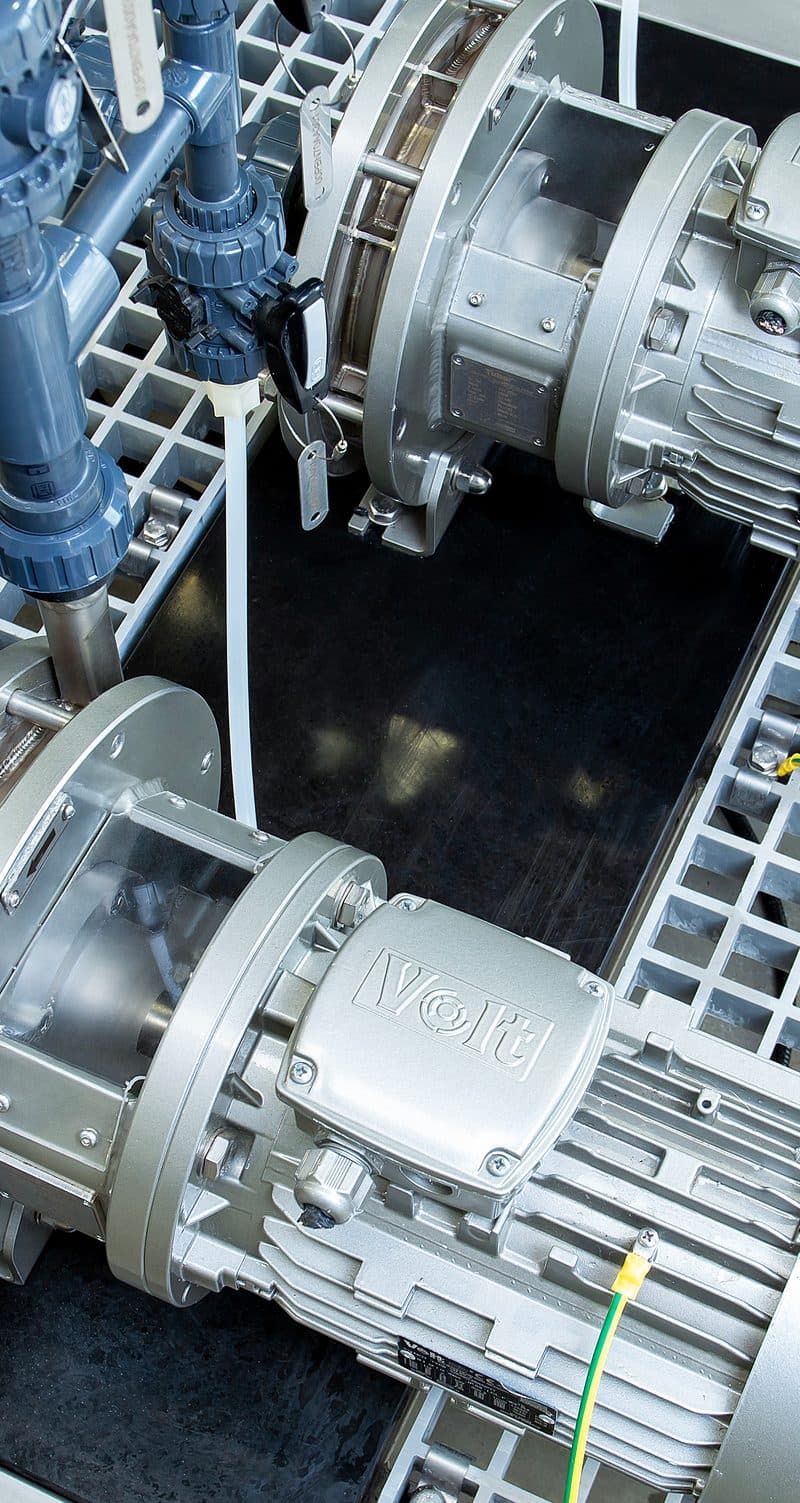

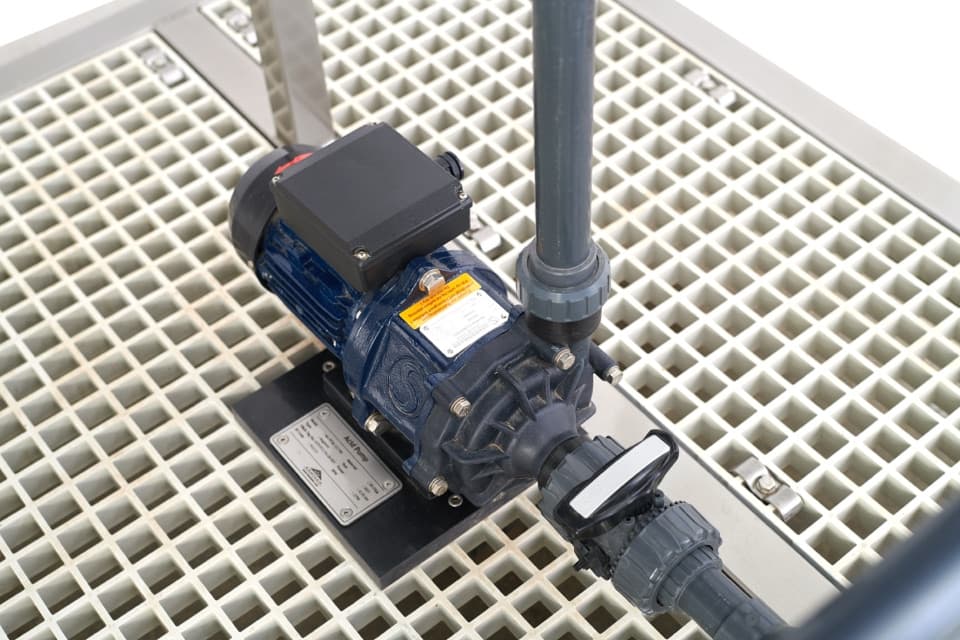

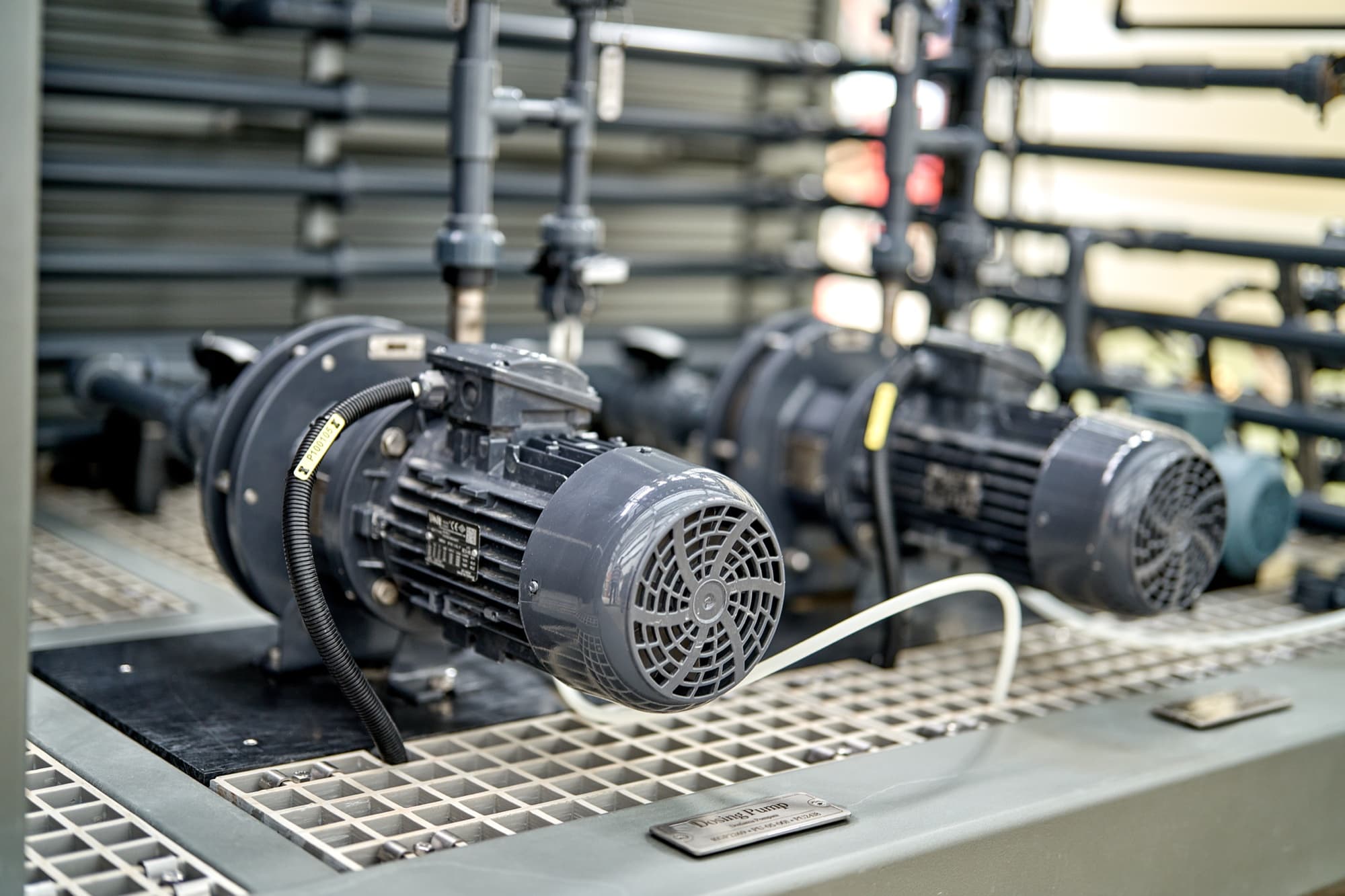

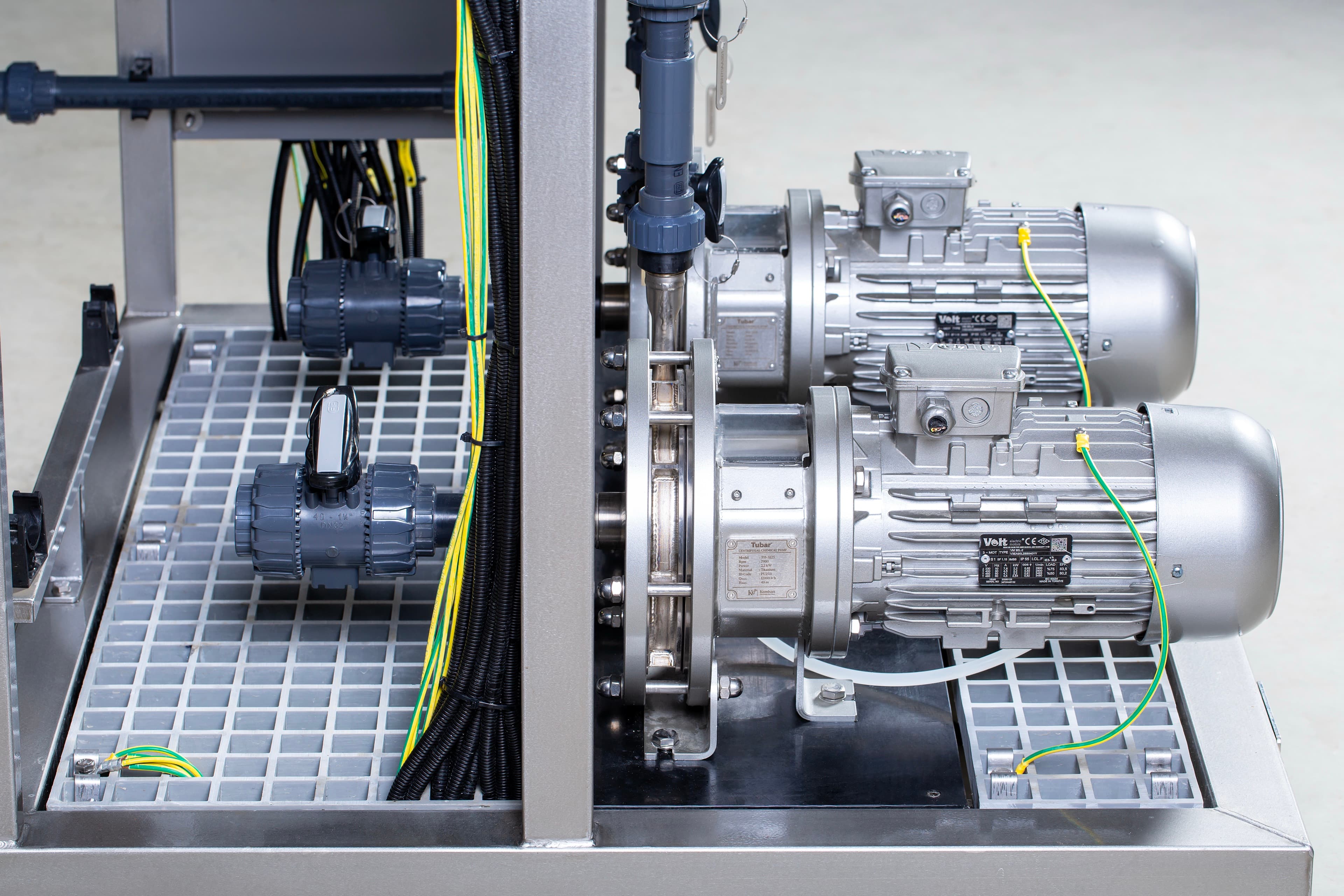

Life-time Dosing with Tubar® Titanium Centrifugal Pumps
For applicable projects, Kemisan’s Tubar® pumps are made entirely of titanium, featuring durable threads and bodies, guaranteeing long-term & trouble-free performance for high-capacity chemical dosing needs in heavy-duty conditions.

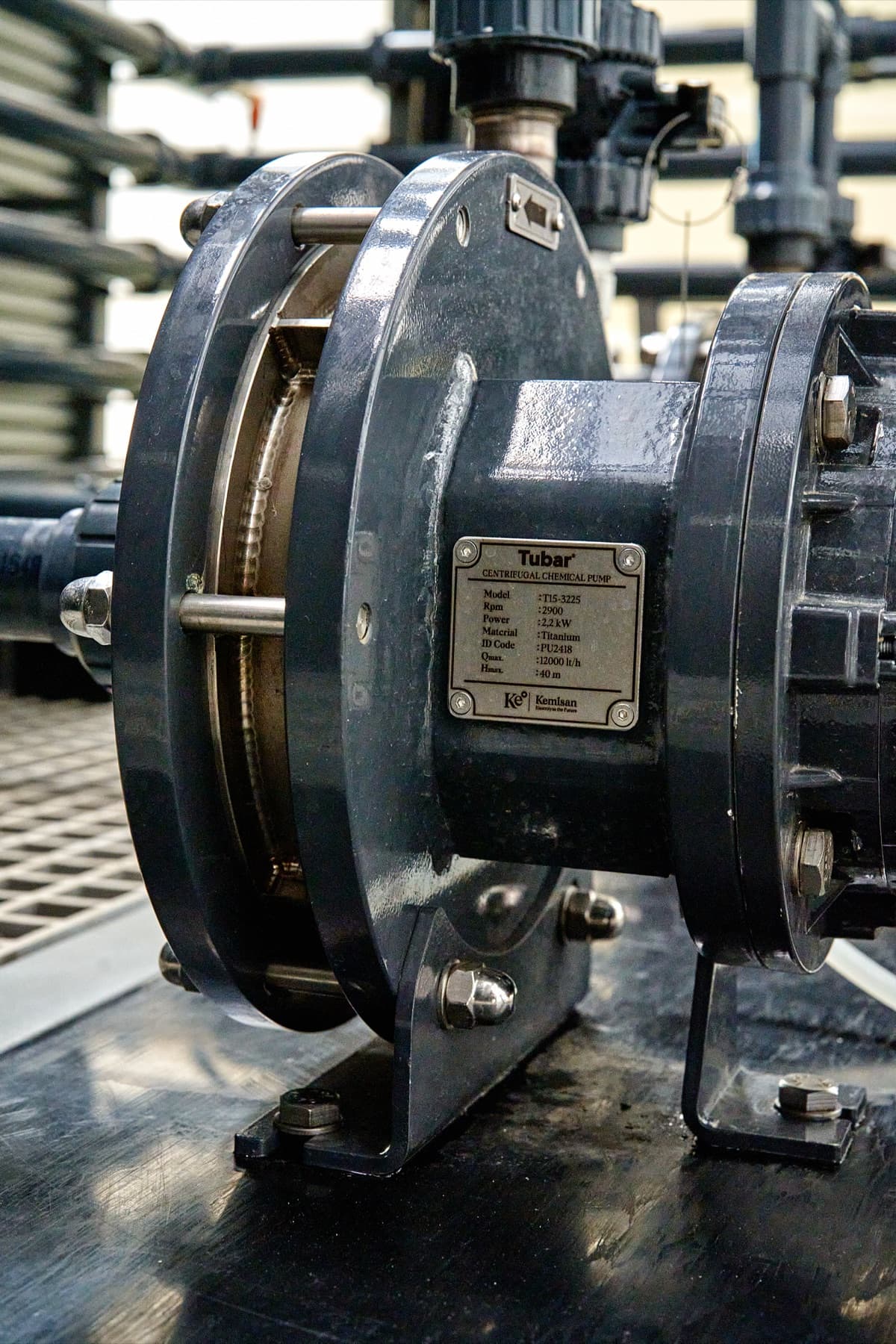

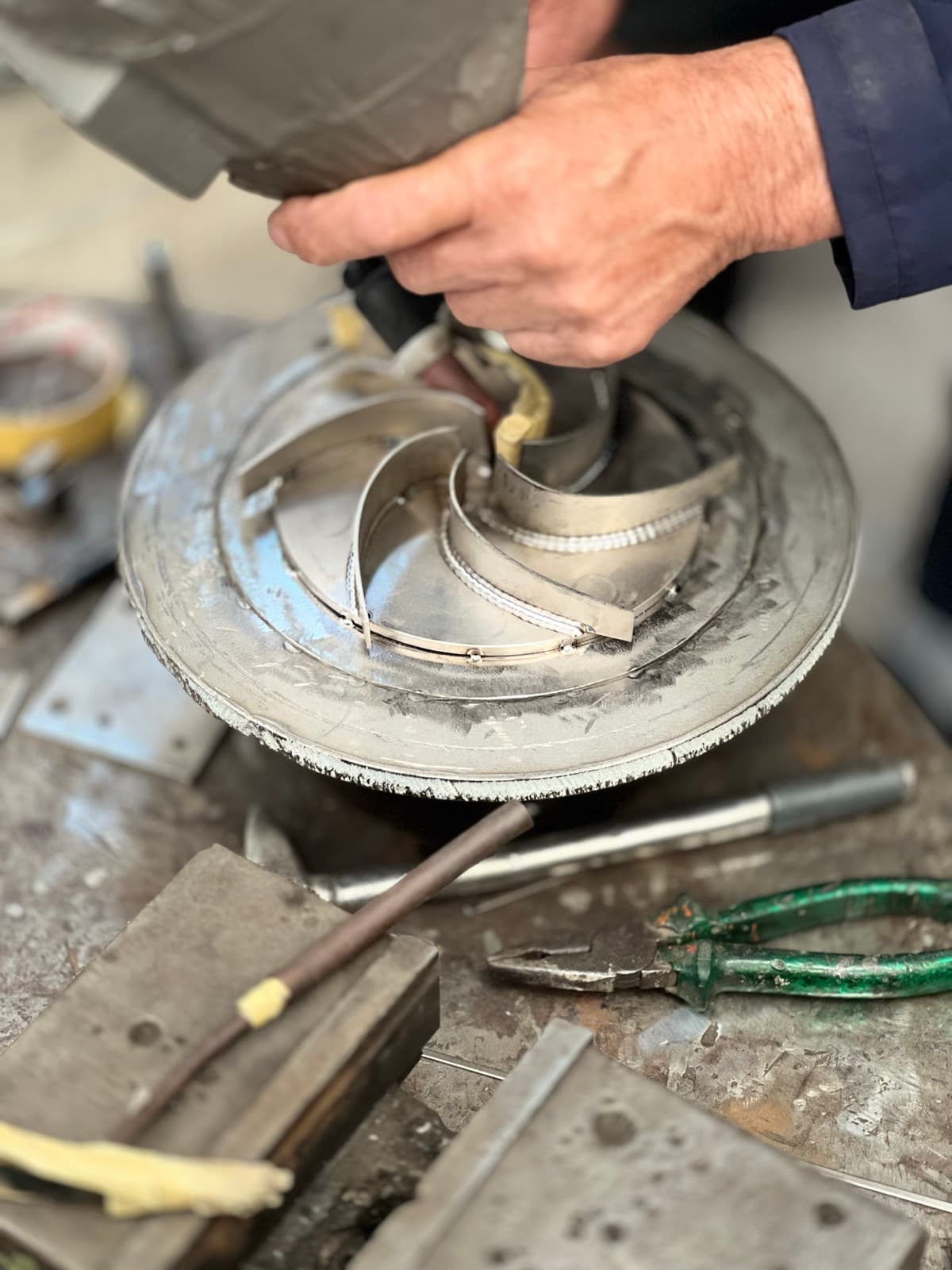

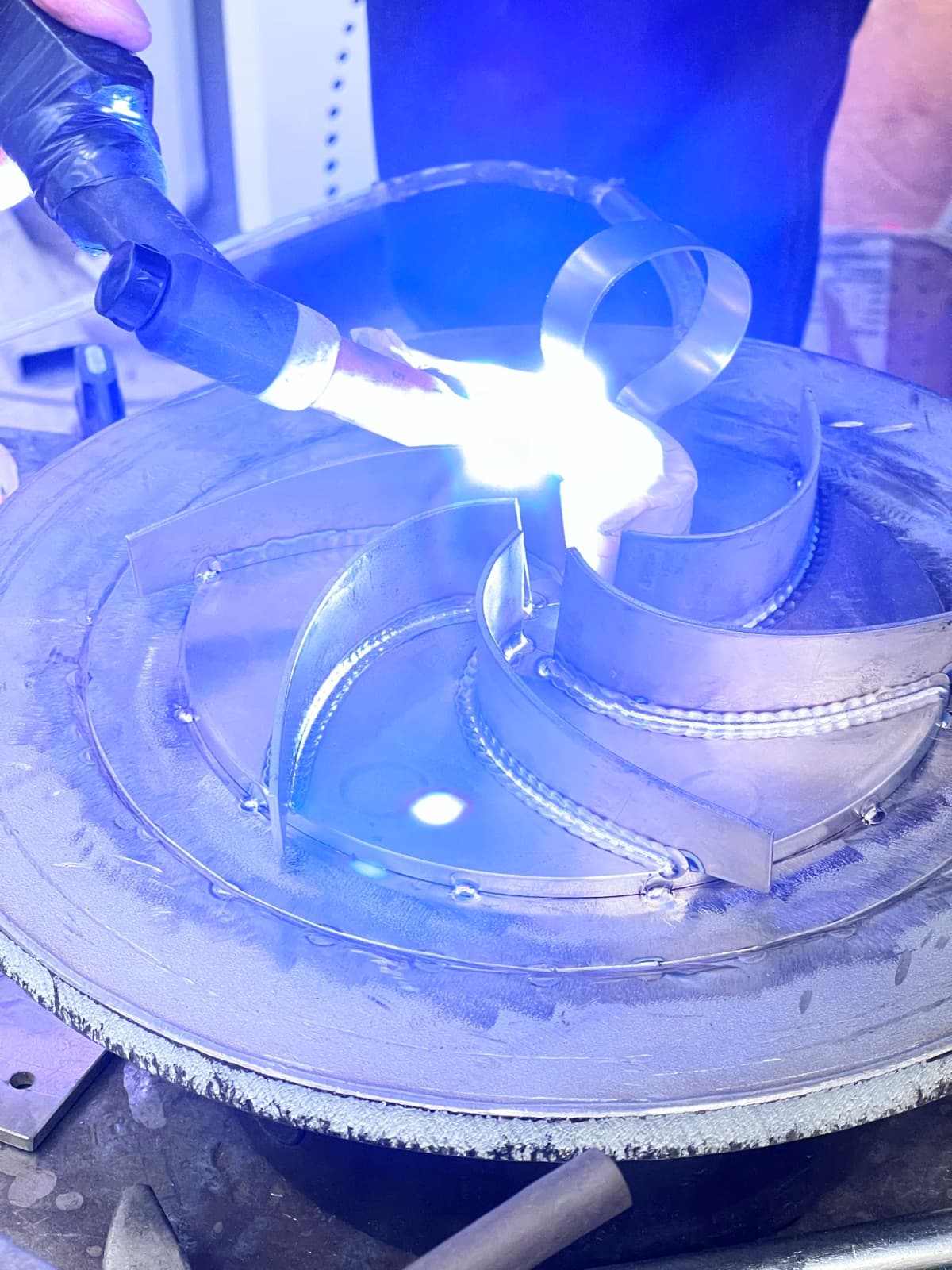

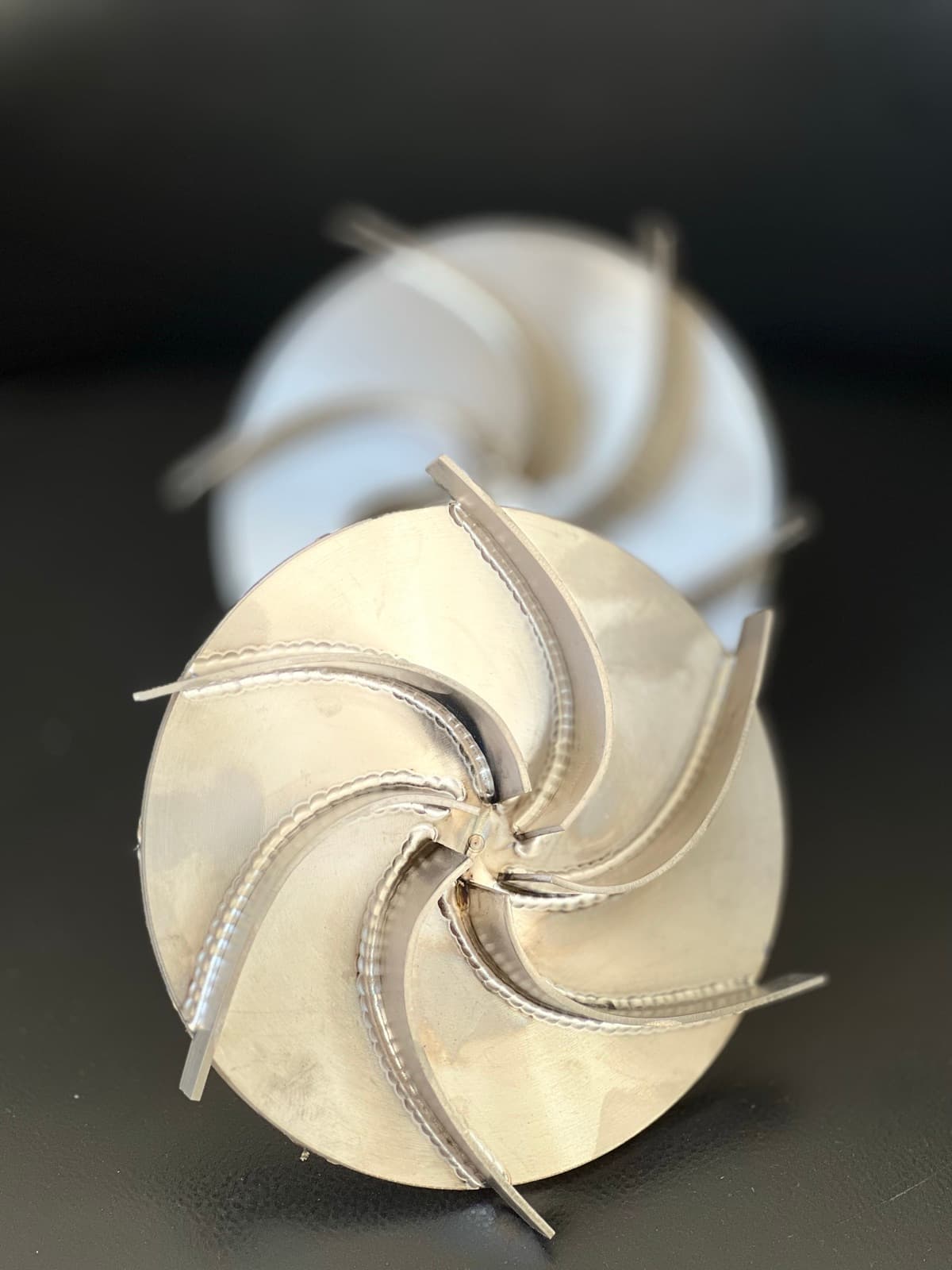

Hand-Crafted from Solid Titanium for Heavy-Duty Operation
Tubar® is a life-time pump because it’s handcrafted from solid titanium with TIG welding method, ensuring superior strength and performance. Also, thanks to its solid titanium and other components like seal, it can provide 24/7 uninterruptible process in heavy-duty operation.
Tubar® has Much Longer Life-time than Plastic Centrifuge Pumps
Tubar’s Titanium Body is a very strong material, highly resistant to extreme mechanical stress, corrosion pressure, and impact. This ensures that the pump operates smoothly for a longer period than Plastic pumps which are generally more fragile and may deform or crack under high pressure or extreme temperatures.
Tubar® Needs Less Maintenance Than Diaphragm Pumps
Tubar® requires less maintenance than diaphragm pump because they are designed to operate under high pressure and temperature conditions, making them low-maintenance over time, even needed only seal maintenance in time. However, since diaphragms can wear out or get damaged over time, require more maintenance and more frequent part replacements and repairs.
Tubar® is Perfect for High Volume Chemical Dosing
For high-volume and high-pressure dosing, Tubar® titanium centrifugal pumps are perfect solution providing a stable and continuous flow with high efficiency. On the other hand, Diaphragm pumps causes an inconsistent and non-continuous flow, and have limited dosing capacity therefore it is not perfect solution for high-amount dosing.
5 Years Warranty Directly from Kemisan
Kemisan provides 5-year warranty for Tubar® ensuring long-term peace of mind. Also, Kemisan is the sole point of contact for Tubar’s guarantee, providing fast and reliable solutions in case of any issues or needs.
Kemisan Pump Experience for 50 Years
With over 50 years of experience, Kemisan® blends deep industry knowledge with advanced technology and exceptional craftsmanship to create pumps that are built to endure. Our expertise in manual craftsmanship, welding, and precision manufacturing ensures that every Tubar® pump meets the highest standards of performance, reliability, and quality, providing long-lasting, trouble-free operation.
Multi-point Distribution from Single Center
With our multi-point dosing system, you can seamlessly distribute precise doses to multiple locations within your facility from a centralized control point. This ensures optimal performance and consistency across all dosing points, tailored to the unique requirements of each area.
Any Dosing Pump for Different Pressure & Volume
Whether you need precise dosing at varying pressures or volumes, our system offers a wide range of dosing pumps, including diaphragm and centrifugal pumps, tailored to meet your specific requirements.
Any Automation for Different Dosing Needs
We offer flexible solutions for different dosing needs, with automation options based on ppm, kg, pressure or double-factor control. Our system can be fully customized to ensure precise and efficient dosing according to your specific requirements.

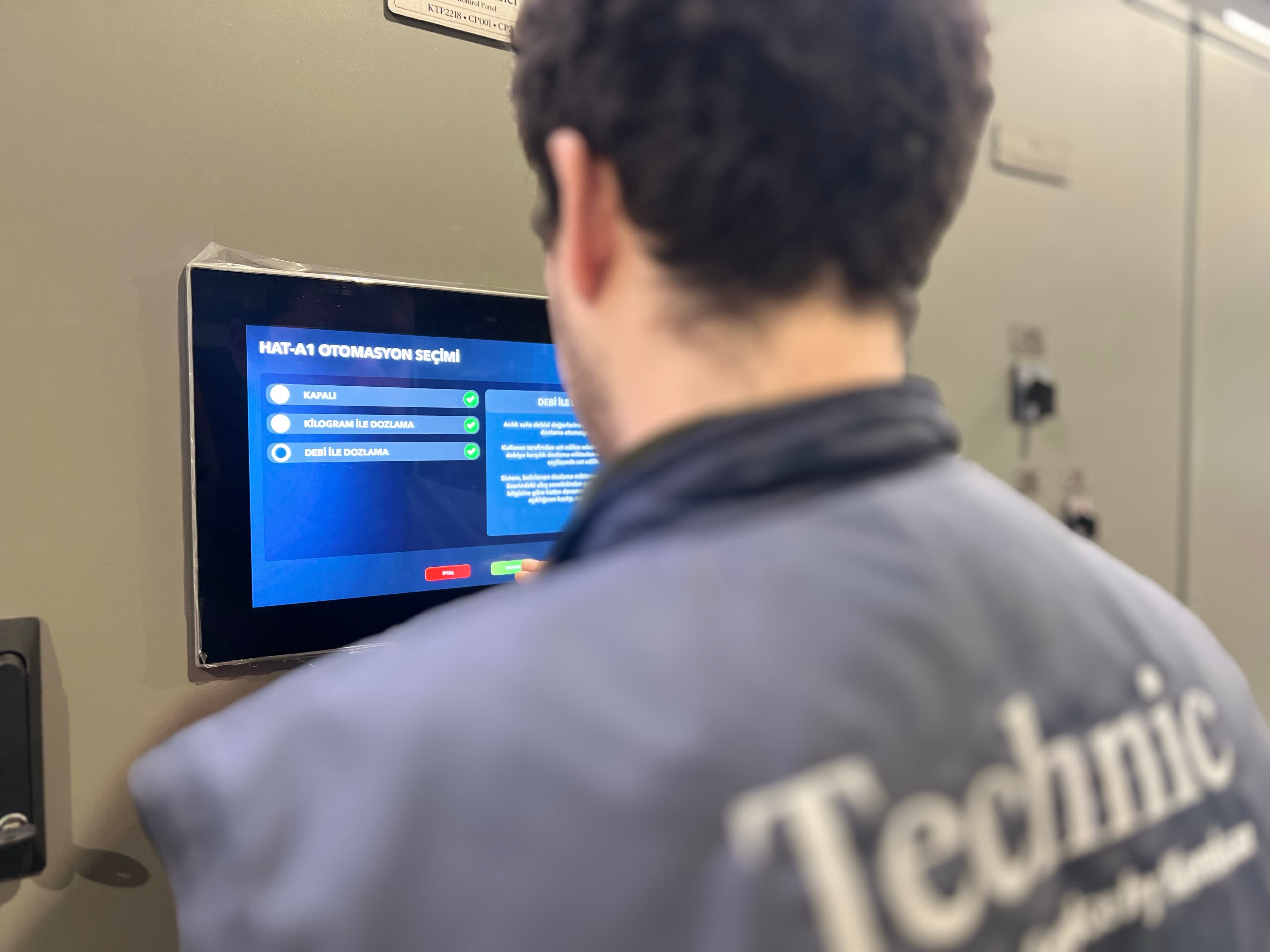

Smart Automations for Comfortable Dosing & Transfer Process
At Kemisan®, we are not just committed to producing hypochlorite through our on-site electrolyzers—we promise a lifetime of comfortable, hassle-free dosing with our perfectly worked automation systems. Integrated with PLC technology, our system ensures consistent, accurate dosing or transfer with minimal intervention, offering you peace of mind and efficiency every day. Discover the most efficient dosing automation for your chlorination needs!
Double Factor Dosing Automation Prevents Chlorine Fluctuation
Double Factor Dosing Automation ensures a stable chlorine output in your treatment plant by adjusting dosing based on two key data points: set value (KG) and signal (Flow or PPM). This dual-factor approach acts as a safeguard, accurately determining the required chlorine dosage to maintain consistent water quality. Therefore, it is suggested to prevent seasonal fluctuations especially for Drinking Water Treatment Plant. Depending on client requirements, various combinations such as Flow+PPM, Flow+KG, or PPM+KG can be selected for automation.
Single Factor Automation for Easy & Accurate Dosing
Single Factor Dosing Automation provides to set chlorine dosing according to single set value OR signal. Thus, you can get not only easy dosing process management, but also accurate one thanks to updating itself according to data. Depending on client requirements, KG set, Flow signal or PPM signal can be selected for automation.
ON/OFF Factor for Effortless Transfer
ON/OFF Factor Dosing Automation provides effortless chlorine transfer according to Pressure set or ON/OFF signal value. This automation is suggested for especially multipoint chlorination processes such as hotel swimming pools.
Although producing chlorine on-site through the electrolysis of brine is always more economical than purchasing it externally, operating costs — electricity, heating, maintenance and the like — are the most significant factors directly affecting cost savings in electrochlorination plant designs. For this reason, Kemisan designs its electrolyzer units to optimize salt and electricity consumption, while selecting heat exchangers instead of resistance-type heaters to achieve the most efficient operational costs.
Optimum Cost per Chlorine Production
By integrating advanced engineering techniques and innovative technologies, our systems minimize salt & electricity consumption while maximizing performance. Our systems consumes 3,5 kg Salt and 4,5 kW electricity for 1 kg/h (100% Cl2 bases) NaOCl production.
Electric Free = Water Heating
Kemisan developed HypoX® LX Series, featuring an integrated heat exchanger that utilizes the temperature of the end product to heat softened water. This innovative solution eliminates the need for electricity-consuming resistance heaters, optimizing operational efficiency and drastically reducing energy costs.
Maintenance Free Brine Dosing
With lower maintenance and operational costs, Jet Eductor can provide a more economical solution in the long run compared to pump usage for brine dosing. Also, Jet Eductor's design is less susceptible to clogging, which means fewer blockages that can require costly troubleshooting.
Longer Service Life with Tubar® Pumps
Tubar® requires less maintenance than diaphragm pump because they are designed to operate under high pressure and temperature conditions, making them low-maintenance over time, even needed only seal maintenance in time. However, since diaphragms can wear out or get damaged over time, require more maintenance and more frequent part replacements and repairs.
Longer Life with Non-Electrical Water Softener
Non-electrical softener has longer service life than electrical one thanks to its simpler design and lack of electronic component. Thus, non-electrical softener requires minimal maintenance. This not only lowers maintenance costs but also allows your team to focus on more critical tasks.
Effortless Brine Preparation

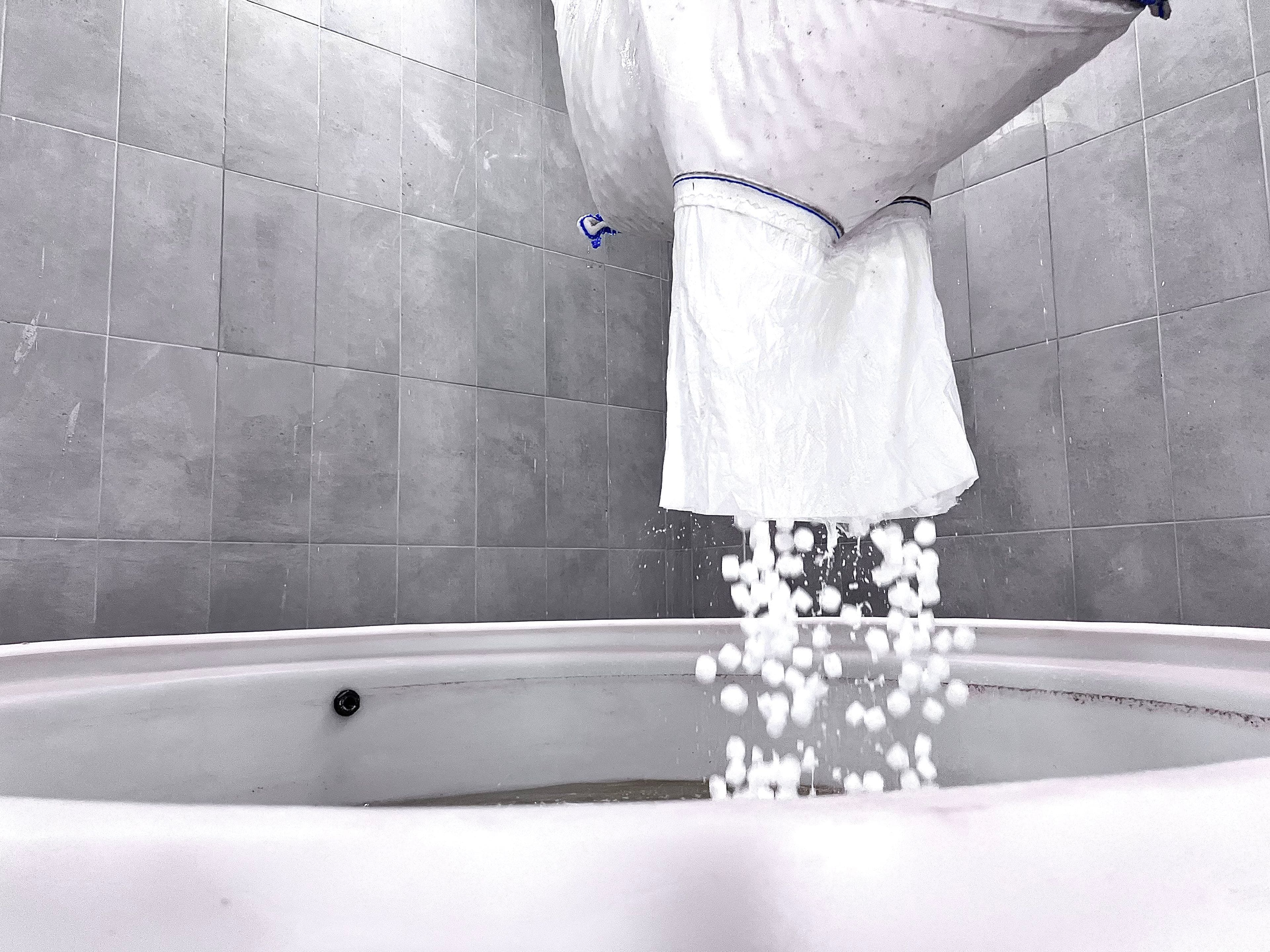

Brine preparation is traditionally one of the most labour-intensive steps in electrochlorination plants — operators have to monitor saturator levels, top up water, and watch saturation by hand. HypoX® PX takes that work off the table: the saturator refills itself, dosing draws from a fully saturated solution, and the only routine task left for the operator is loading salt.
Pit Design Better Than Pneumatic Systems
PX Series offers Pit design service according to project requirements. Pit provides easy and fast brine preparation process especially for the businesses which produces high amount of chlorine.
Back-wash for Easy Maintenance
The backwash feature in the brine tank prevents clogging by reversing the water flow to remove sediments and impurities. This helps maintain consistent brine quality and ensures reliable chlorine production. It also reduces the need for manual cleaning, extending equipment life and improving overall system efficiency.
For Continuous Operation Redesigned Filter
The sand filter in the brine tank removes suspended solids and impurities from the solution, ensuring cleaner and more consistent brine. By protecting the electrolyzer from blockages and fouling, it helps maintain stable chlorine production.
PE or FRP Tank Material Options
PX Series offers FRP Brine Preparation Tank material options besides PE (Polyethylene). Both are provided with required capacity & configuration.
5 years
HypoX®'s Electrode Coating has 5 years guarantee by Kemisan!
2 years
Kemisan gives 2 years guarantee for HypoX's overall system and process.
5 years

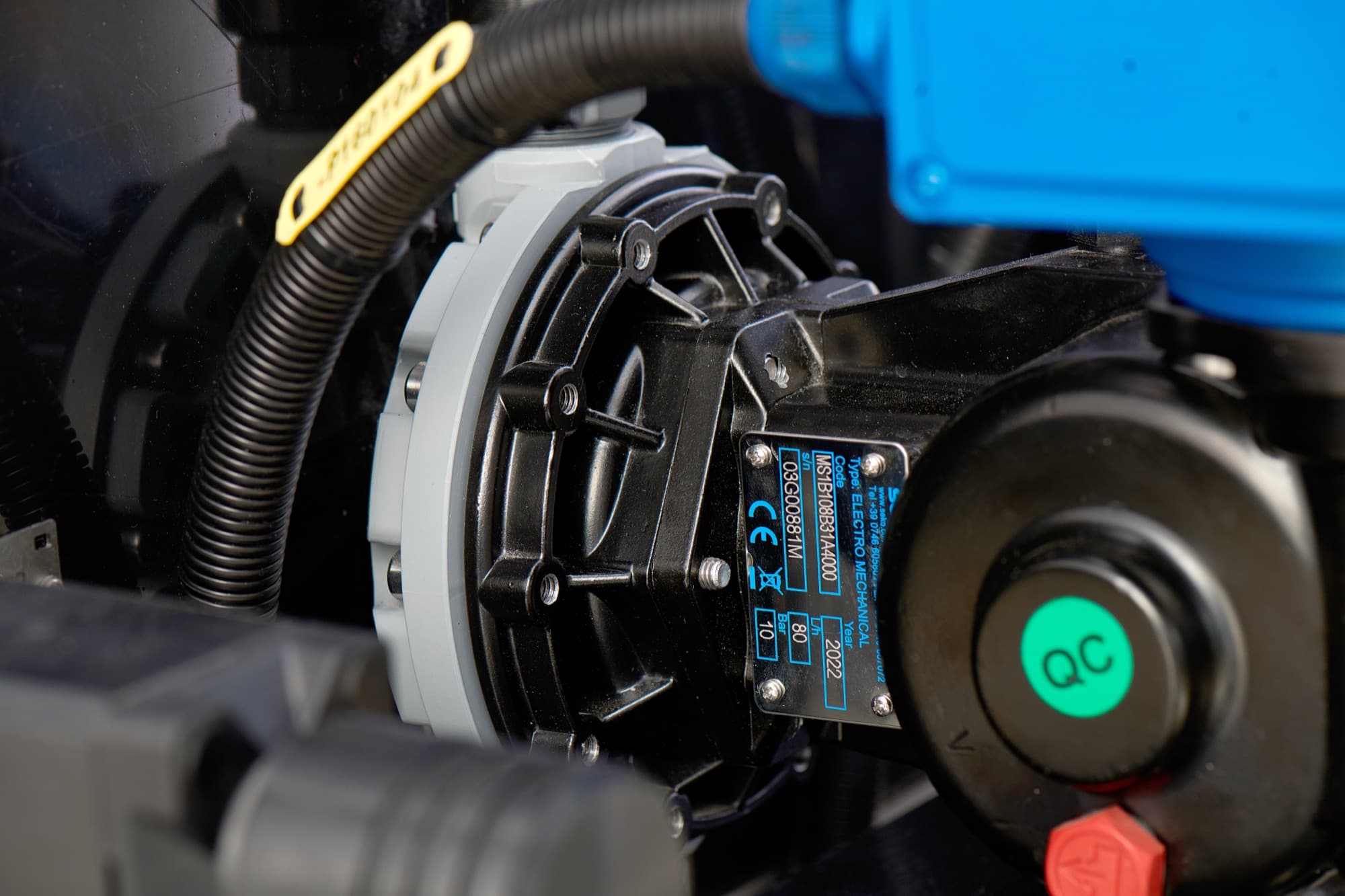

Kemisan its own Tubar® pumps have 5 years guarantee. (excl. motor part)
Life time
Kemisan's Jet Eductor® used for Brine dosing is guaranteed for life-time by Kemisan!
Our Secret for Long Years of 99,9% Up-Time
What truly matters to us is not how many plants we sell, but how many of our plants are still operating successfully with 99,9% run-time even after many years. Let’s discover how we do it for 50 years!
100% In-house Electrolyzer!
Kemisan is the independent owner and manufacturer of the core electrolysis technology: Electrode Catalytic Coating, which is crucial for the service life and performance of the plants. Unlike other companies that lack this technological capability and rely on third-party vendors for the heart of the system, Kemisan carries out all electrolyzer engineering and electrode catalytic coating processes 100% in-house. This ensures superior quality and complete control over the system's core.
Single Designer & Supplier: No Middleman
We never allow middleman companies to design and supply some portion of our plants to prevent failures or full stop caused by inharmonious components and equipments, conflicts of guarantee responsibilities, imperfect installation and commissioning and so on.
Perfect Harmony of Designing Every Unit All Together
Kemisan independently conducts all design, engineering, and manufacturing activities in-house with a holistic approach, ensuring that every component is designed and produced as part of a seamlessly integrated system. Therefore, Kemisan serves as the single point of authority for all its products and their each components.
50 Years Experience in Electrolysis & Process Design
Kemisan's deep-rooted expertise in R&D, engineering and manufacturing process of electrolysis technology—born into it and dedicated solely to its advancement for 50 years. With dedicated focus and commitment, we continuously push the boundaries of electrolysis innovation every single day since 1976.
Dedicated Technical Service by Designer
Kemisan® is one of the few manufacturers in the industry that provides both direct and designer-approved technical after-sales support. Our commitment to excellence guarantees reliable, expert assistance from our professional Technic Team—both during and beyond the warranty period.
Perfect Installation & Smooth Commissioning
Kemisan provides direct or approved representative services for the installation and commissioning of ElectroChlorination plants. Our goal is to deliver a smooth and efficient setup, ensuring your system is ready to perform at its best from the beginning.
Complete Personal Training
We believe that the perfection of system and process starts with well-trained personnel. Kemisan Academy ensures that your team will be fully prepared with the knowledge and skills necessary to handle all aspects of system operation and maintenance, leading to enhanced performance and reduced downtime of ElectroChlorination systems.
Central Spare Part Bank for Each Components
We don't just build electrochlorination plants—we sustain them for a lifetime. Every bolt, pump, or valve has a guaranteed backup, sourced or replaced by us, so you never have to search elsewhere. While others leave you chasing suppliers, we ensure seamless operation with a one-stop spare part solution. Reliability isn't an option—it's our promise.
